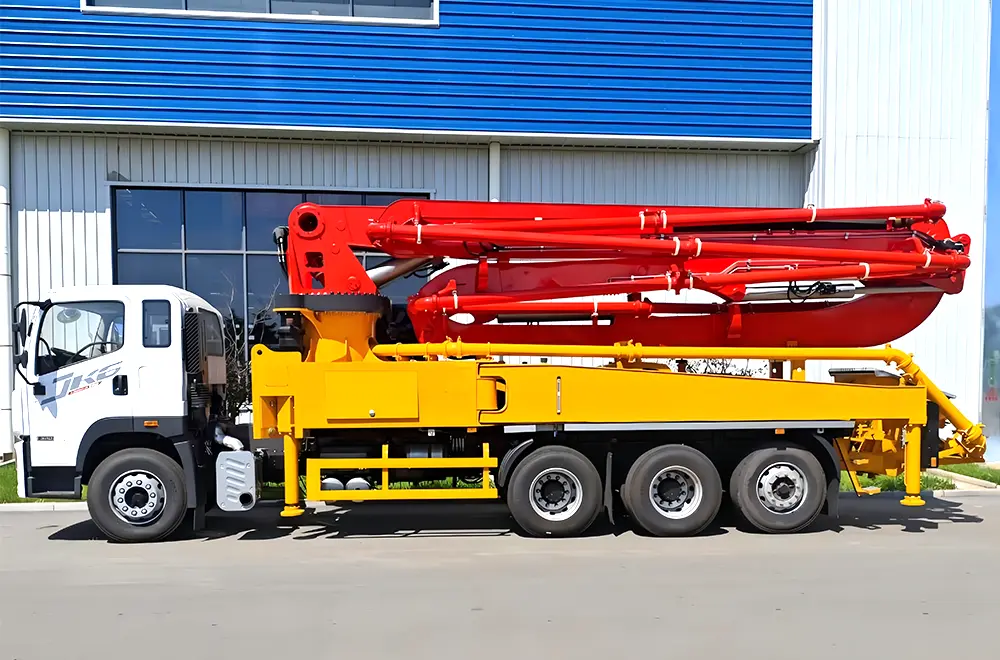

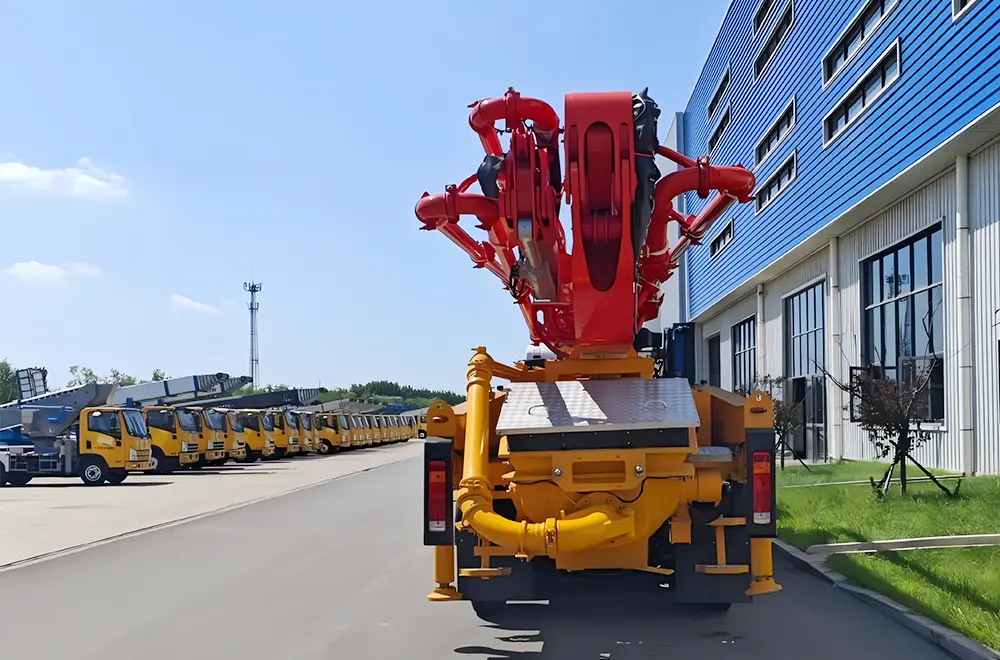

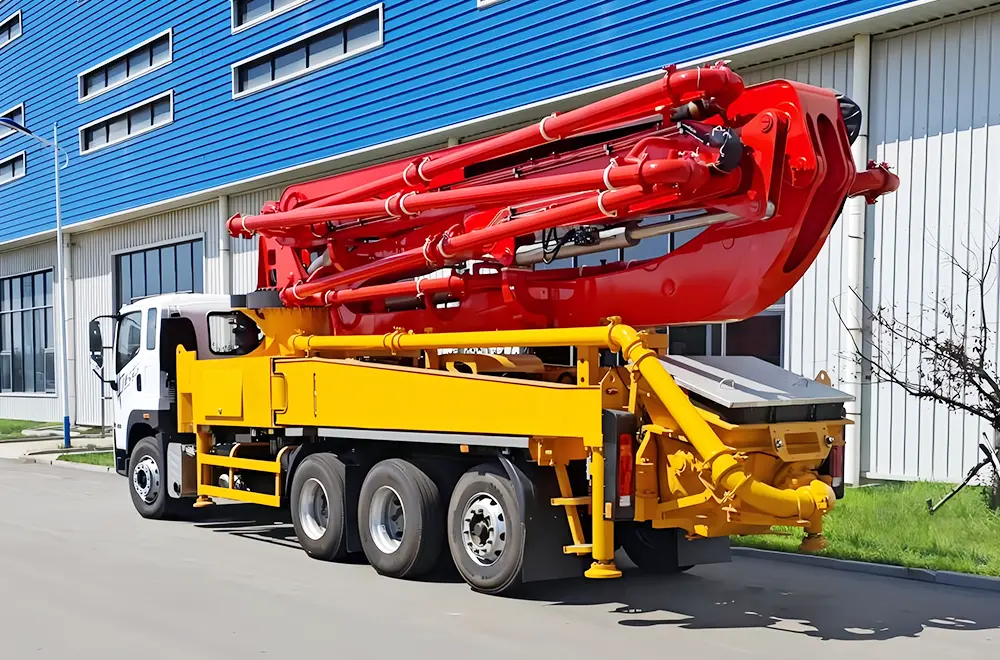

Boom System: Equipped with a 4-6 section telescopic boom, reaching a maximum vertical conveying height of 38-56 meters and horizontal conveying distance of 33-51 meters. The boom is made of high-strength steel, ensuring stability and durability during operation.
Conveying Capacity: Features a high-pressure concrete pump with a theoretical conveying capacity of 80-180 cubic meters per hour (adjustable based on concrete slump). The pump pressure reaches 31.5 MPa, enabling long-distance vertical and horizontal concrete delivery.
Chassis & Power: Built on the FAW Jiefang JK6 8×4 chassis, powered by a 420-horsepower diesel engine that meets Euro V emission standards. The truck is equipped with a 12-speed manual transmission for stable performance in construction site conditions.
Smart Control Panel: Equipped with a touch-screen control system that monitors pump pressure, boom position, and hydraulic oil temperature in real time. Optional remote control operation allows the operator to adjust the boom and pump from a safe distance.
Stability & Safety: Features 4 outriggers with a wide span (8-10 meters) to ensure stability during high-altitude operation. The truck is equipped with anti.
High-rise building construction for vertical concrete conveyance
Bridge and dam projects for long-distance horizontal concrete delivery
Infrastructure projects such as airports, highways, and tunnels
High conveying capacity reduces construction time by up to 30% compared to traditional methods
Flexible boom system enables precise concrete placement in hard-to-reach areas
