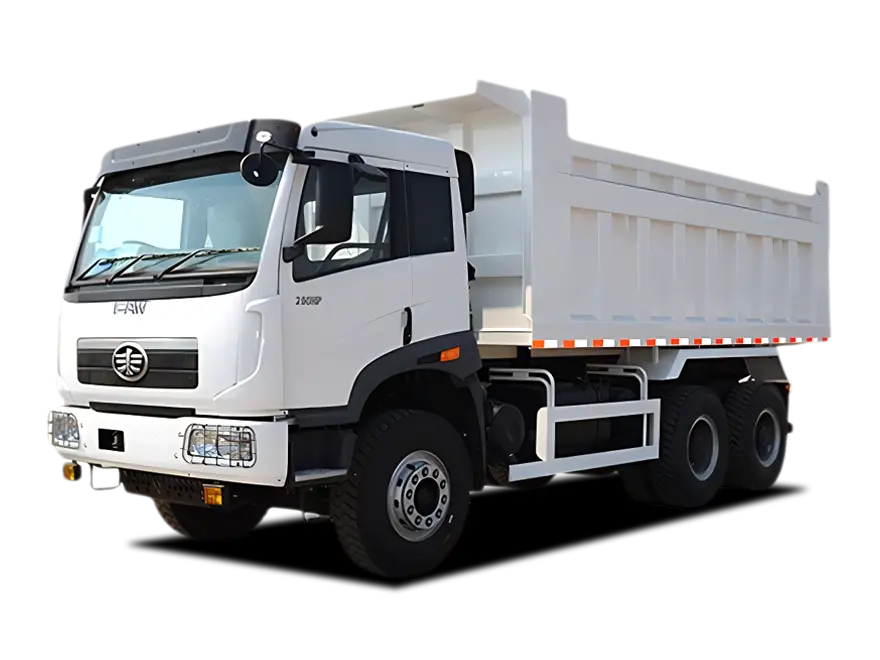

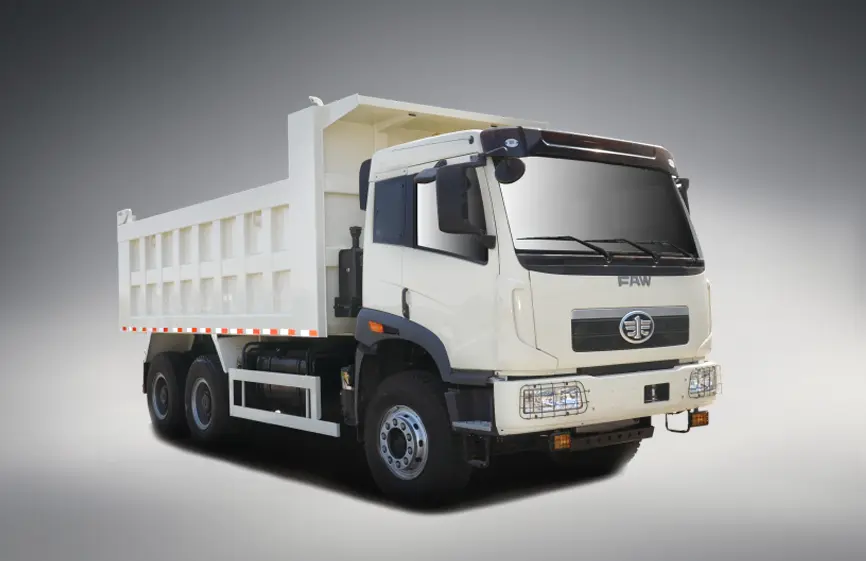

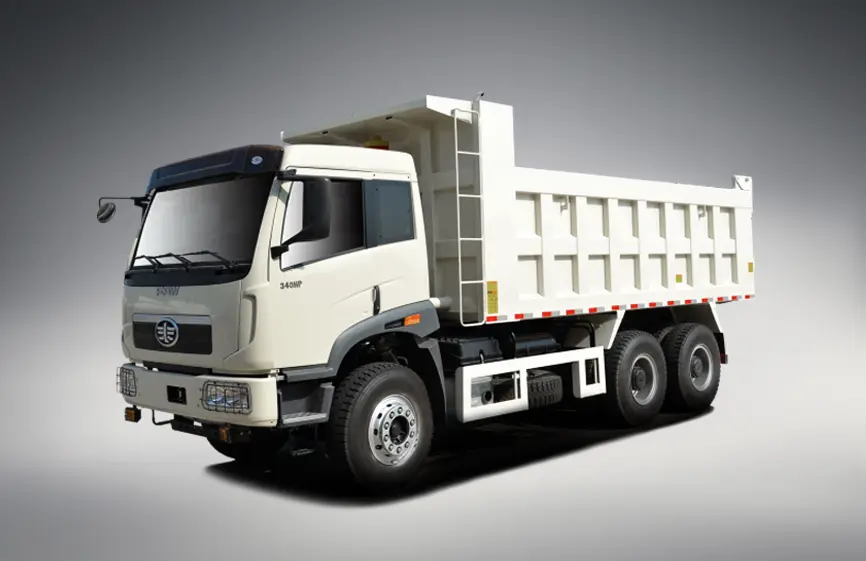

FAW J5P 6X4 Tipper Truck
TECHNICAL DATA
| Category | Specification Details |
|---|---|
| Truck Name | FAW J5P 6X4 Tipper Truck |
| Basic Information | – Model: CA3252P2K2T1A – Drive Type: 6X4 – Condition: New – Certification: ISO9001:2015 |
| Dimensions & Weight | – Overall Length: 7.6-8.8m – Width: 2.495m – Height: 3.5-3.8m – Wheelbase: 3300+1350mm – Curb Weight: 9.8-10.5 tons – GVW: 25 tons – Max Payload: 14-15 tons |
| Engine | – Brand: Weichai/Xichai – Type: 6-Cylinder Inline Diesel – Displacement: 8.57-9.73L – Horsepower: 310-380 HP – Max Torque: 1250-1500 N·m – Emission Standard: Euro 2/3/5 |
| Transmission | – Type: Manual (12 Forward + 2 Reverse Gears) – Model: FAW CA12TA160M/Eaton FULLER |
| Chassis & Suspension | – Axle: Φ457 Welded Axle with ABS – Rear Axle Ratio: 4.111/4.444 – Suspension: Multi-leaf Spring (10/11, 4/11 leafs) – Tire Specification: 11.00R20 / 315/80R22.5 |
| Tipper Body | – Material: High-Strength Steel – Capacity: 12-18 cbm – Lifting Type: Front Hydraulic Lifting – Lifting Angle: ≥45° |

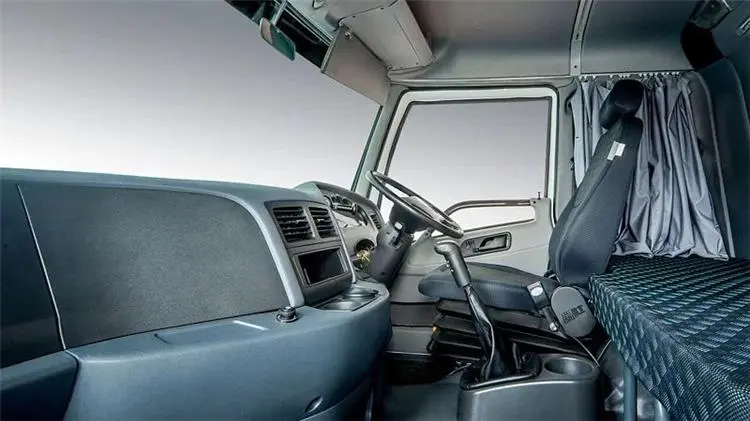

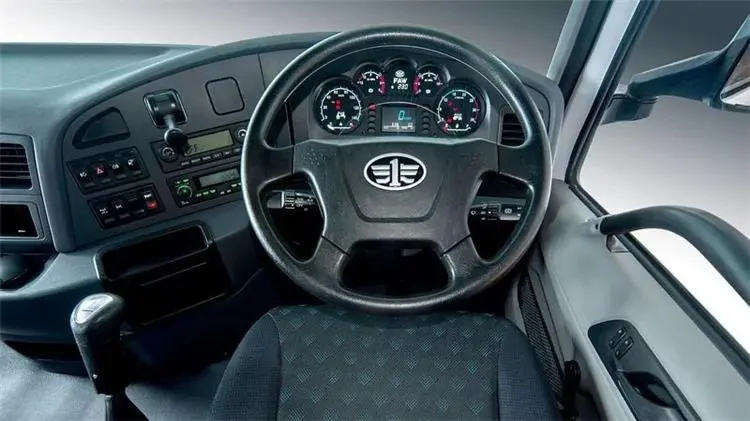

| Cab | – Type: Full-Floating High-Roof Cab – Seating: 3 Persons – Features: Air-Suspension Driver Seat, Air Conditioning, Power Windows |
| Safety Features | – Anti-lock Braking System (ABS) – Airbag Protection – Electronic Stability Control (Optional) – Rearview Camera (Optional) |
| Fuel Tank | – Capacity: 400L (Aluminum/Steel Option) |
| After-sales Service | – Warranty: 1 Year or 100,000 km – Global Spare Parts Support – On-Site Repair Service Available |
FAW J5P 6X4 Tipper Truck : ideal for round-the-clock operations
At the heart of the FAW J5P 6X4 Tipper Truck lies a high-torque Weichai diesel engine, available in 340HP or 380HP configurations, that delivers exceptional power to conquer steep gradients and rough terrain. Paired with an Eaton/FULLER manual transmission, the FAW J5P 6X4 Tipper Truck ensures seamless gear shifts and optimal fuel efficiency, minimizing operational costs while maximizing productivity. Whether hauling gravel, soil, or construction debris, the FAW J5P 6X4 Tipper Truck maintains consistent performance, making it ideal for round-the-clock operations.
FAW J5P 6X4 Tipper Truck: Engineered to withstand the most demanding conditions
Built to withstand the harshest conditions, the FAW J5P 6X4 Tipper Truck features a reinforced steel chassis and heavy-duty suspension system that can handle payloads of up to 30 tons. Its durable U-shaped cargo box, constructed with thick steel plates, resists impact and corrosion, extending the lifespan of the FAW J5P 6X4 Tipper Truck even in dusty or muddy environments. The advanced hydraulic lifting system of the FAW J5P 6X4 Tipper Truck enables quick and controlled dumping, reducing downtime and accelerating workflow on job sites.
What sets the FAW J5P 6X4 Tipper Truck apart is its versatility and customization options.
Available with left-hand or right-hand steering, the FAW J5P 6X4 Tipper Truck can be tailored to meet regional driving preferences. It also supports multiple cargo box sizes and dumping styles (front lifting or middle lifting), allowing you to adapt the FAW J5P 6X4 Tipper Truck to specific project requirements, from urban construction to remote mining operations.
FAW J5P 6X4 Tipper Truck, the preferred choice for operators seeking top-tier heavy-duty transport capabilities.
With ISO9001:2015 certification and compliance with Euro 2-6 emission standards, the FAW J5P 6X4 Tipper Truck not only meets international quality benchmarks but also minimizes environmental impact.FAW J5P 6X4 Tipper Truck is more than just a vehicle—it’s a strategic investment that drives the success of your construction or mining business.
