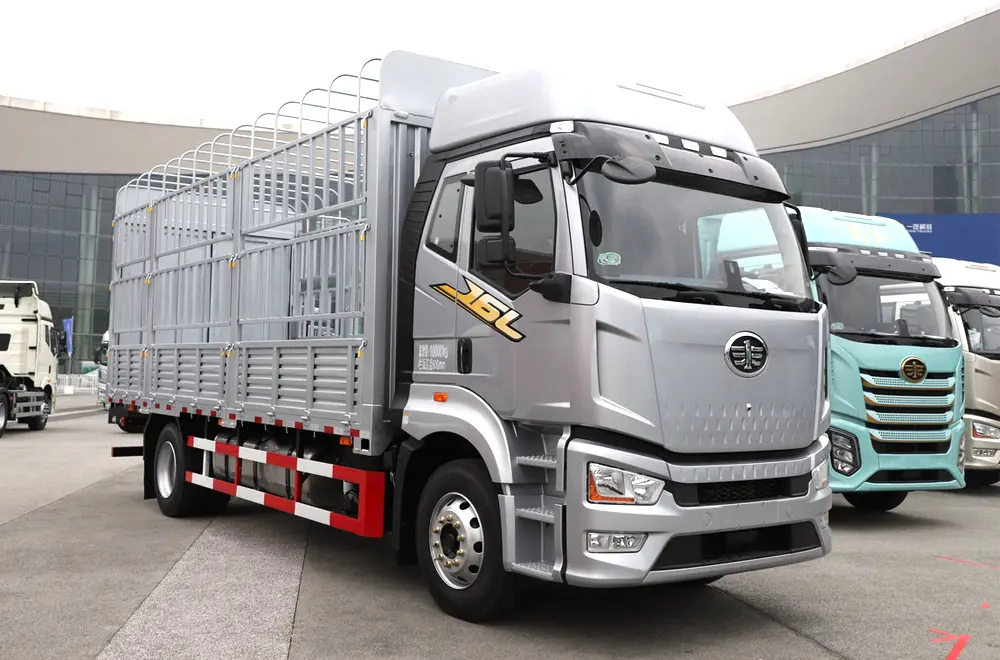

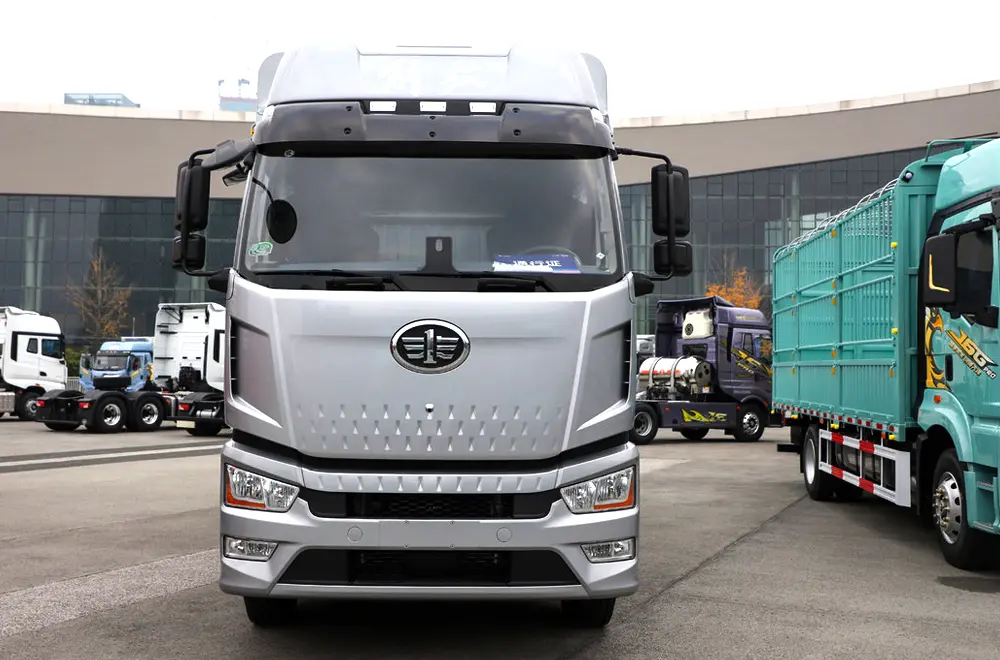

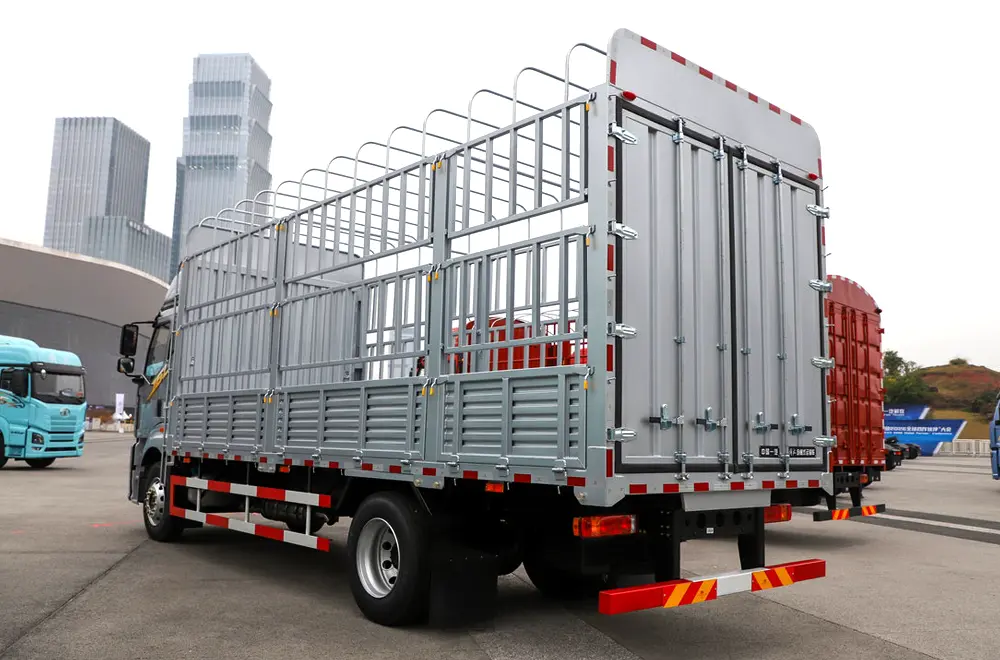

Faw Jiefang J6L Cargo Truck
TECHNICAL DATA
| CHINA FAW JIEFANG J6L CARGO TRUCK | |
| Model Number: | CA5181CCYP62K1L4E6 |
| Type: | Cargo truck |
| Drive Type: | 4X2 |
| Wheelbase: | 5300mm |
| Box Length Class: | 6.8 meters |
| Engine: | CA6DH1A29E65 |
| Transmission: | CA8TAX110FS1 |
| Rear Axle Ratio: | 4.333 |
| Vehicle Length: | 9 meters |
| Vehicle Width: | 2.55 meters |
| Vehicle Height: | 4 meters |
| Front Track: | 1943mm |
| Rear Track: | 1860mm |
| Current Weight: | 7.17 tons |
| Rated Payload: | 10.635 tons |
| Gross Vehicle Weight: | 18 tons |
| Maximum Speed: | 89km/h |
| Country of Origin: | Changchun, Chengdu |
| Tongue Class: | Medium-sized card |
| Approach Angle: | 18 degrees (°) |
| Departure Angle: | 10 degrees (°) |
| Front Overhang/Rear Overhang: | 1.42/2.28meters |
| Energy Type: | diesel fuel |
| Engine Brand: | Dachai |
| Engine Model: | CA6DH1A29E65 |
| Engine Information: | Dachai 5.7L |
| Number of Cylinders: | 6-cylinder |
| Fuel Type: | Diesel |
| Cylinder Arrangement: | Inline |
| Displacement: | 5.7L |
| Emission Standard: | National VI |
| Maximum Output Power: | 216kW |
| Maximum Horsepower: | 290 Horsepower |
Core Specifications
Chassis & Drive: Available in 4×2, 6×2, and 6×4 drive layouts, with a wheelbase ranging from 3,800 mm to 5,700 mm to accommodate different cargo body lengths.
Power System: Equipped with FAWDE 4/6-cylinder diesel engines delivering 160-240 HP, compliant with Euro III to Euro VI emission standards. Paired with 6-10 speed manual or optional automated manual transmission (AMT) for smooth power delivery.
Cargo Body Configurations:
Standard cargo body types include fenced, closed van, flatbed, and refrigerated options, with lengths from 4.2 meters to 9.6 meters
Maximum payload capacity ranges from 6 to 15 tons, customizable based on chassis reinforcement and axle configuration
Optional side doors, tail lifts, and cargo securing systems to adapt to different cargo handling needs
Safety & Comfort: Features ergonomic cab with air suspension seat, power windows, and air conditioning. Standard ABS anti-lock braking system, hill-start assist, and optional reversing camera for enhanced operational safety.
FAW JH6 6X4 Cargo Truck: Advanced Safety & Reliability for Peace of Mind
Robust Chassis & Suspension: The 6×4 drive configuration and heavy-duty chassis provide exceptional load-carrying capacity and stability. The truck is equipped with a 435 rear axle with a 3.727-4.111 gear ratio, ensuring reliable performance and long service life.
Enhanced Safety Features: The JH6 Cargo Truck is equipped with advanced safety systems, including ABS+ASR+EBL braking system, airbag protection, and a rearview camera for improved visibility. The truck also features a high-strength steel cab structure with collision energy absorption technology, providing maximum protection for the driver and passengers.
