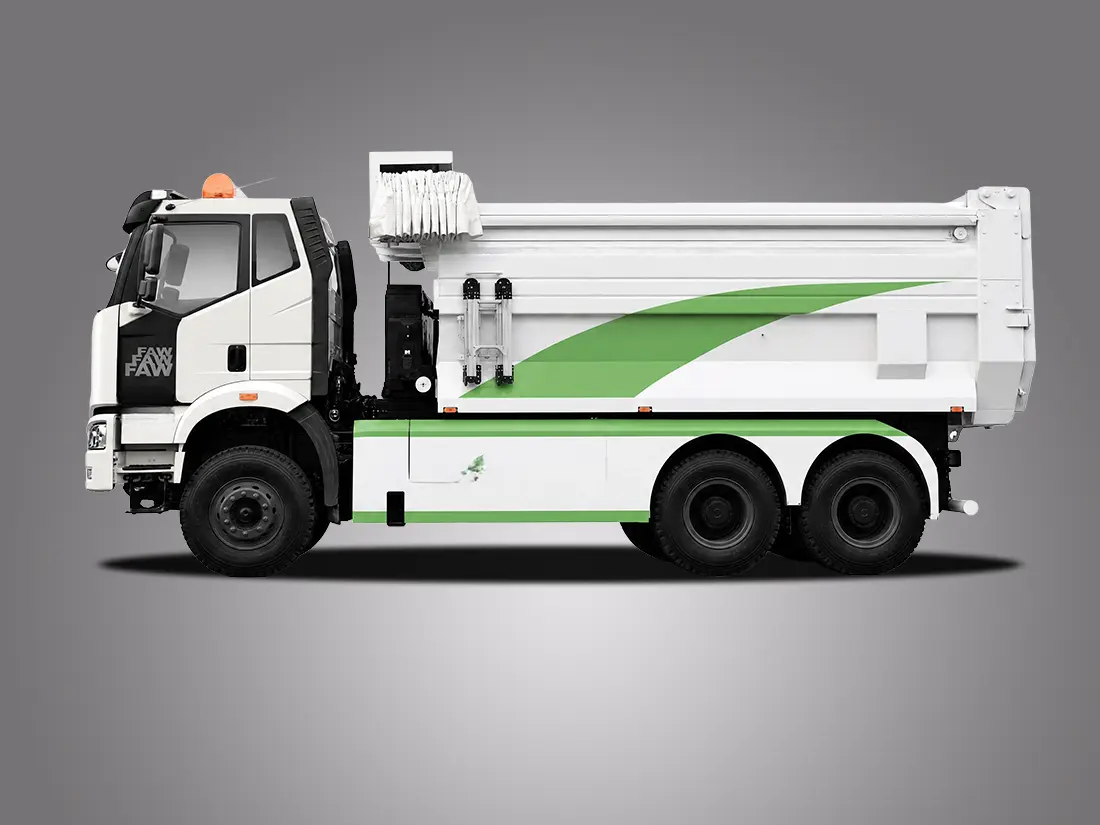

Faw J6 Heavy Duty Truck
TECHNICAL DATA
|
Truck Name |
Faw Heavy Duty Truck |
|
|
Category |
Technical Feature |
Standard Specification & Options |
|
Basic Info |
Vehicle Model |
CA3250 Series (Heavy Duty Chassis) |
|
Drive Type |
6×4 (Left-Hand Drive / Right-Hand Drive optional) |
|
|
Wheelbase (mm) |
3,800 + 1,350 mm / 4,050 + 1,350 mm |
|
|
Curb Weight / Gross Weight |
Approx. 12,000–12,500 kg / Up to 60,000–80,000 kg |
|
|
Engine |
Engine Model |
FAWDE (Xichai) CA6DM2 / Weichai WP10 / WP12 |
|
Max. Horsepower |
390 HP / 420 HP / 460 HP |
|
|
Displacement (L) |
11.04 Liters (Diesel, Inline 6-cylinder) |
|
|
Max. Torque (Nm/rpm) |
1,750–2,100 Nm @ 1,100–1,400 rpm |
|
|
Emission Standards |
Euro 2 / Euro 3 / Euro 4 / Euro 5 / Euro 6 |
|
|
Transmission |
Gearbox Model |
FAST (Manual) or FAW CA10TA series |
|
Gear Ratios |
10 Forward + 2 Reverse / 12 Forward + 2 Reverse |
|
|
Axles & Frame |
Front Axle Type / Load |
7.5-ton or 9-ton Drop-forged I-beam axle |
|
Rear Drive Axle / Load |
2 × 16-ton double reduction hub-reduction axles |
|
|
Rear Axle Speed Ratio |
5.26 / 5.92 |
|
|
Chassis Frame structure |
Three-layer reinforced steel through-frame (300×80×(8+8+5)mm) |
|
|
Suspension & Brakes |
Suspension Type |
Heavy duty multiple semi-elliptic leaf springs (Front/Rear) |
|
Brake System |
Dual-circuit independent air brakes, Drum type, with ABS |
|
|
Tires & Fuel |
Tire Specifications |
12.00R20 / 12R22.5 (Radial steel wire tires, 10+1 Spare) |
|
Fuel Tank Capacity |
300L / 400L Aluminum alloy steel tank |
|
|

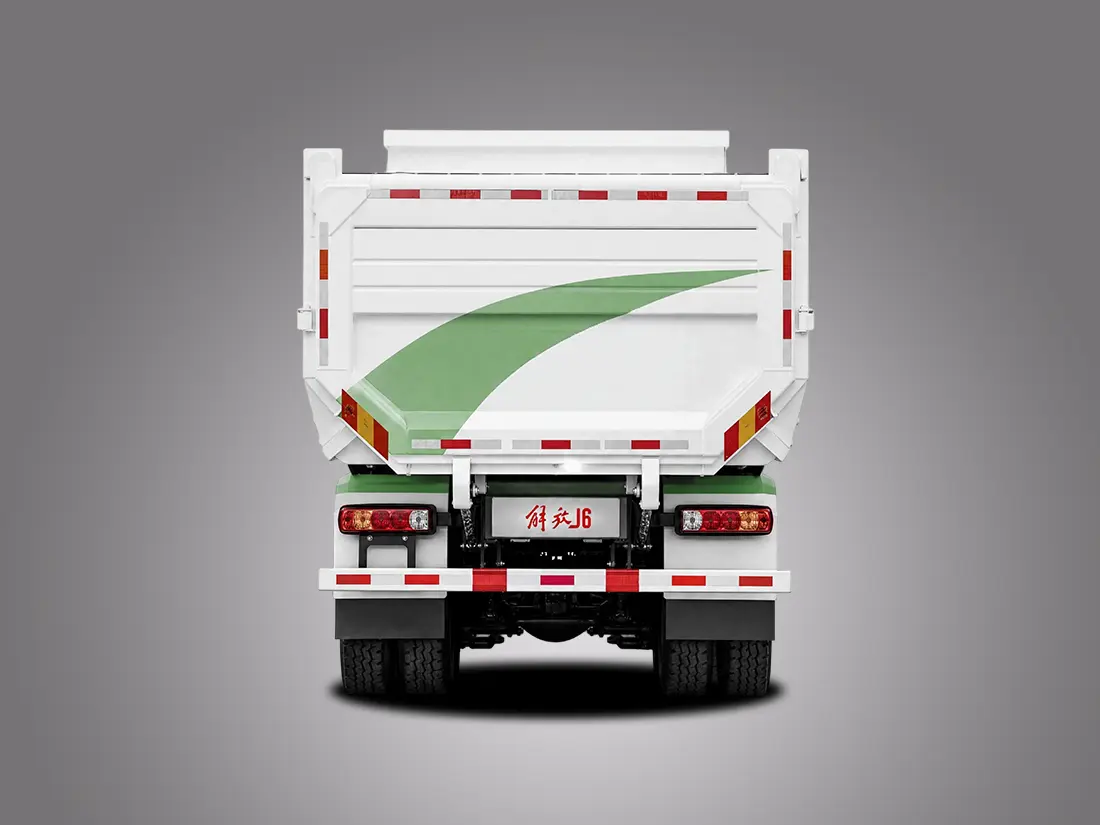

Dump Cargo Box |
Inner Box Dimensions (mm) |
5,600 × 2,300 × 1,500 mm / 5,800 × 2,300 × 1,500 mm |
|
Cargo Box Volume |
18 cbm to 22 cbm (Custom volumes available) |
|
|
Box Material Thickness |
Bottom: 8 mm, Side: 6 mm (High tensile strength T700 steel) |
|
|
Tipping/Lifting System |
Front-tipping hydraulic lifting cylinder (Hyva system optional) |
|
|

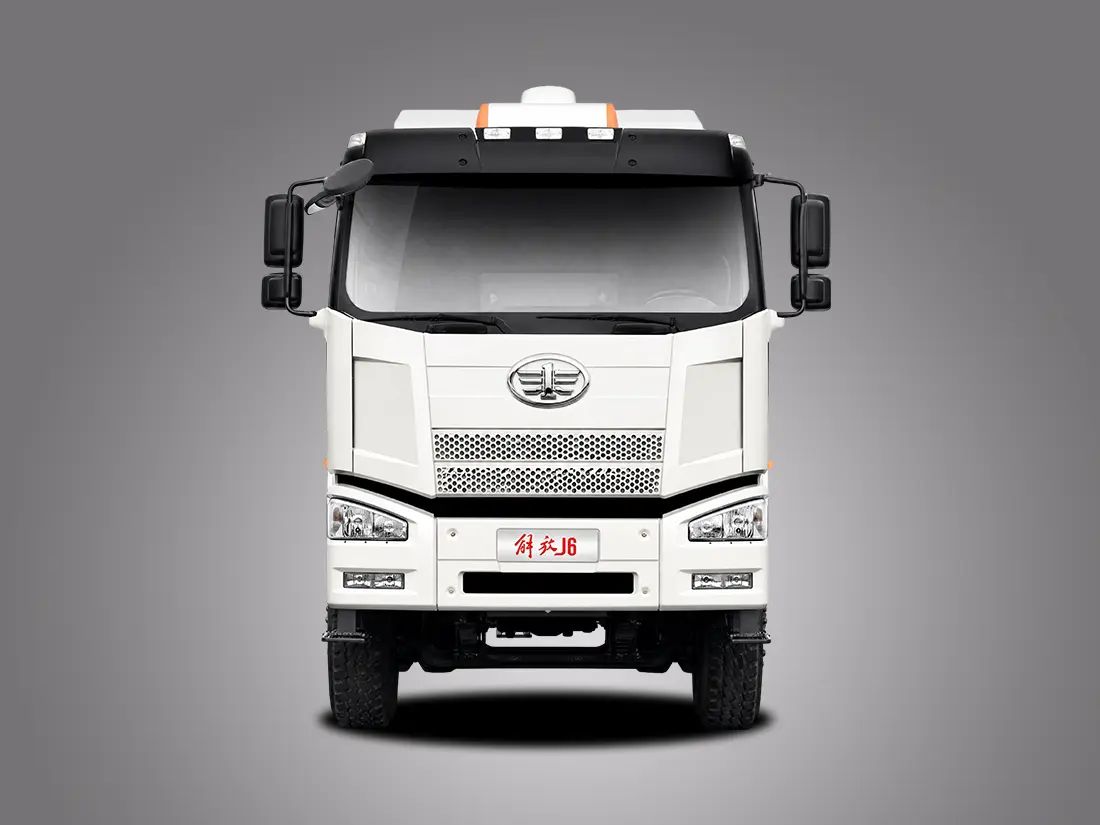

Cabin Setup |
Cabin Type |
FAW J6P/J6M full-floating cabin with 1 sleeper berth |
|
Interior Features |
Air-cushioned seat, wrap-around dash, AC, multi-function steering |
|
FAW J6 Heavy Duty Truck
As a flagship lineup from China’s premier automotive manufacturer, the FAW J6 Heavy Duty Truck series is engineered to deliver world-class reliability, outstanding fuel economy, and exceptional load-bearing capacities. Designed to dominate demanding industries like long-haul logistics, mining, and urban construction, the FAW J6 has earned its reputation as a global commercial vehicle powerhouse.
Whether you are looking to expand your mining fleet or optimize regional transport routes, discover why the FAW J6 series is the preferred choice for heavy-duty operators worldwide.
FAW J6 Heavy Duty Truck Key Technical Specifications & Powertrain
The engineering backbone of the FAW J6 truck line balances raw power with cost-saving mechanical efficiency.
High-Torque Engines: Powered by advanced FAWDE (Xichai) or Weichai engines ranging from 310 HP to 550 HP, providing unmatched pulling power under maximum payloads.
Smart Transmission: Paired with heavy-duty FAST manual or automated manual transmissions (AMT) featuring up to 12 forward gears for seamless torque distribution.
Reinforced Chassis: Built on high-strength, double-layer or triple-layer steel frame structures engineered to withstand extreme torsional stress without bending.
Why Choose the FAW J6 Heavy Duty Truck ?
Unmatched Fuel EfficiencyFAW’s proprietary engine data calibration and precision fuel injection systems dramatically reduce fleet operating overheads. The J6 series boasts a B10 engine lifespan exceeding 1 million kilometers, drastically lowering your Total Cost of Ownership (TCO).
Advanced Driver Comfort & Safety
Long hours on the road require a workspace that minimizes fatigue. The FAW J6 floating cabin includes:Ergonomic Layout: Wrap-around dashboard putting all controls within arm’s reach.Vibration Isolation: Four-point air suspension cabin and air-cushioned seats to absorb severe road shocks.Enhanced NVH Control: High-grade multi-layer insulation that effectively seals out engine noise and external wind blast.
