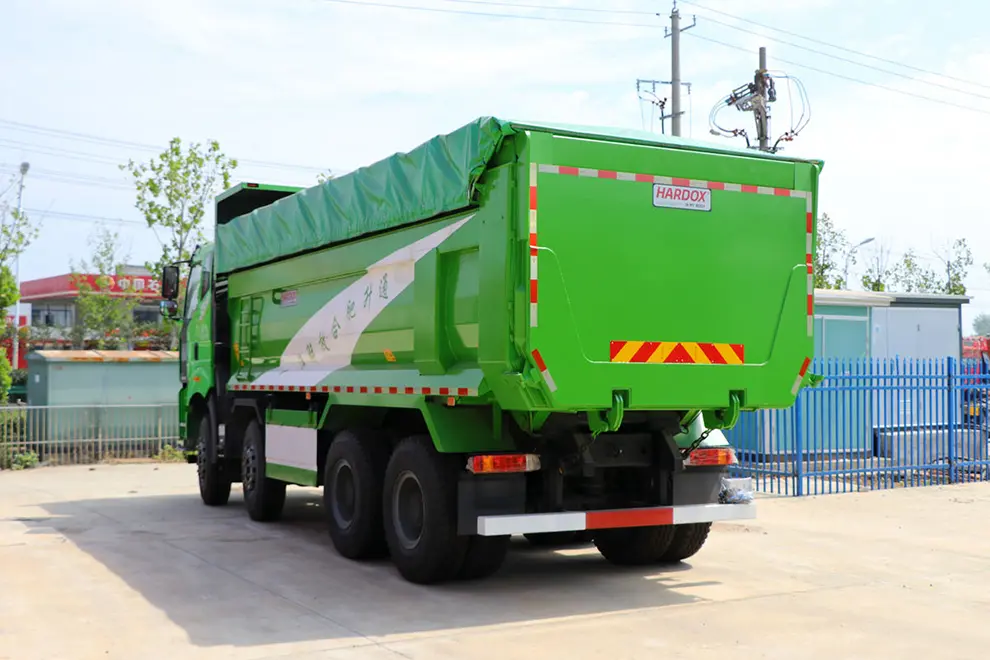

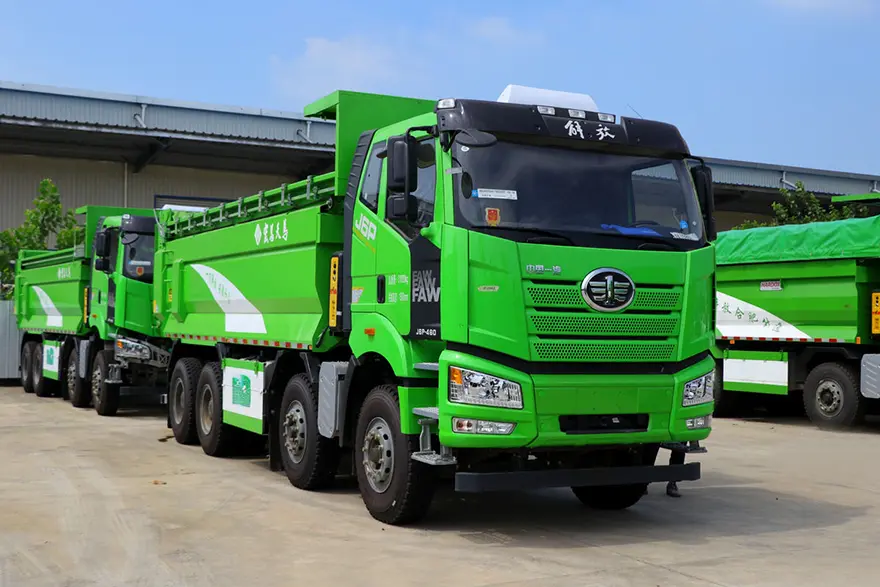

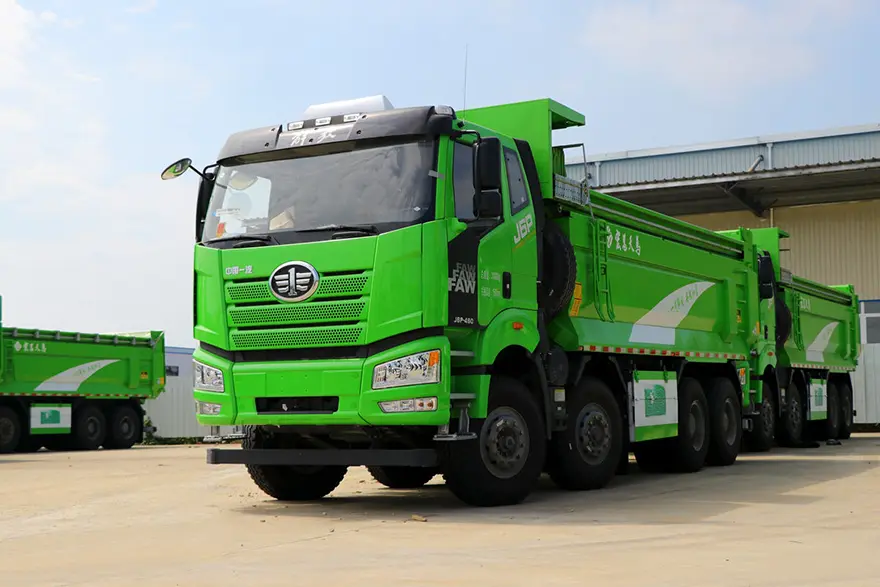

FAW J6P 8X4 Dump Truck
TECHNICAL DATA
| Truck Name | FAW J6P 8X4 Dump Truck |
| Condition | New |
| Steering | Left |
| Horsepower | 460hp |
| Emission Standard | Euro 3 |
| Brand Name | FAW |
| Place of Origin | SHN |
| Segement | Heavy truck |
| Market Segement | Urban construction muck transportation |
| Engine Brand | WEICHAI |
| Fuel Type | Diesel |
| Engine Capacity | > 8L |
| Cylinders | 6 |
| Gear Box Brand | FAST |
| Transmission Type | Manual |
| Forward Shift Number | 12 |
| Reverse Shift Number | 2 |
| Maximum Torque(Nm) | 1500-2000Nm |
| Dimensions (L x W x H) (mm) | 10408*2500*3250 |
| Cargo Tank Dimension | 7800*2300*1500 |
| Cargo Tank length | 6.2-8m |
| Gross Vehicle Weight | 31000 |
| Capacity (Load) | > 50T |
| Fuel Tank Capacity | 400-500L |
| Passengers | 4 |
| Driver’s Seat | Air suspension |
| Window | Manual |
| Air Conditioner | Manual |
| Tire Number | 10 |
| After-sales Service Provided | Video technical support, Online support |
| The truck size | 10408*2500*3250 |
| Product name | FAW Dump Truck 8X4 Tipper Truck 60 Ton -100 |
| Engine model | Weichai WP10.380E32 |
FAW J6P 8X4 Dump Truck: Durability Built to Last

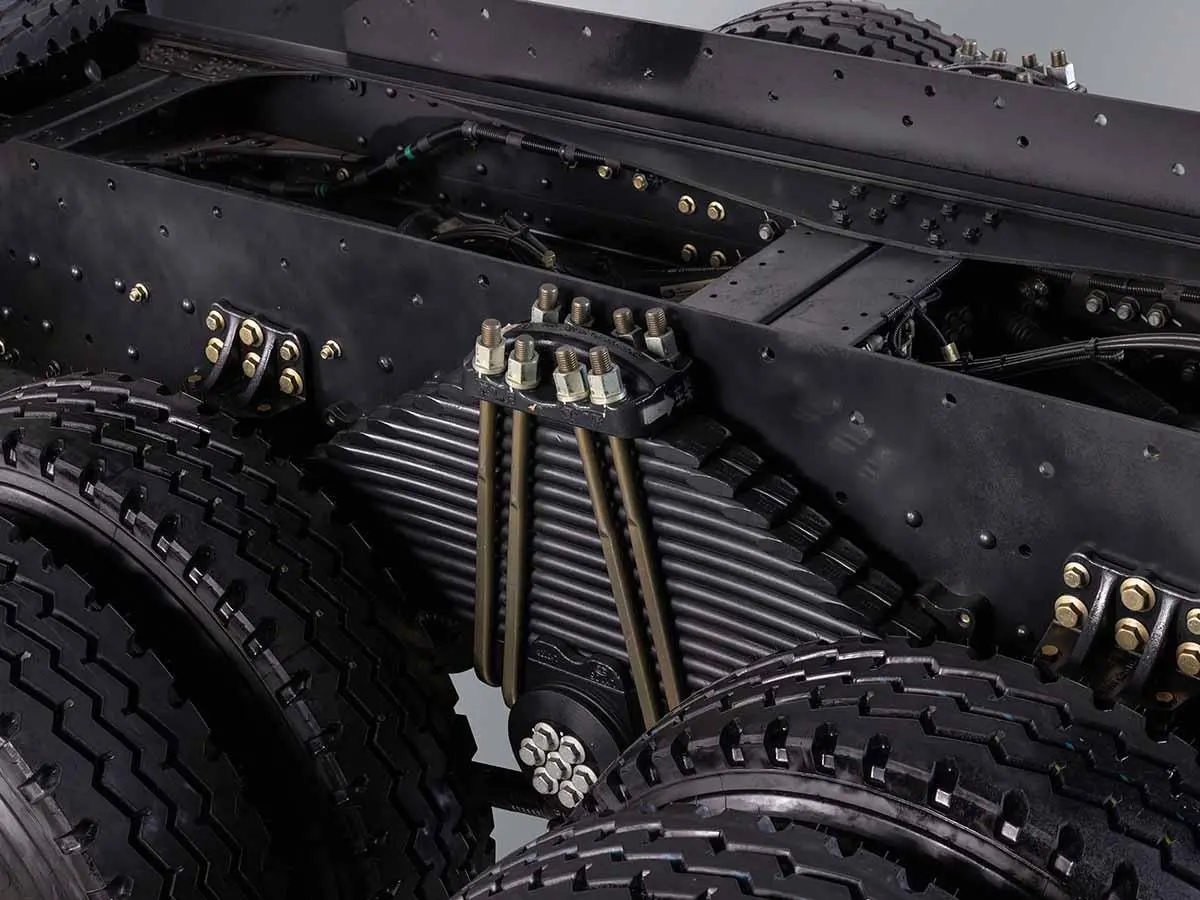

The FAW J6P 8X4 Dump Truck is engineered for longevity, with a high-strength steel chassis that can withstand the harshest working conditions. Its reinforced 800mm frame and robust 16-ton double reduction rear axles provide exceptional stability, even when carrying maximum payloads over uneven surfaces. The FAW J6P 8X4 Dump Truck also features a heavy-duty dump body constructed from 8mm thick steel plates, designed to resist wear and tear from abrasive materials like rocks and sand. With a B10 service life of over 1.2 million kilometers, the FAW J6P 8X4 Dump Truck is built to keep working day after day, year after year.
FAW J6P 8X4 Dump Truck: Efficiency That Saves Time & Money

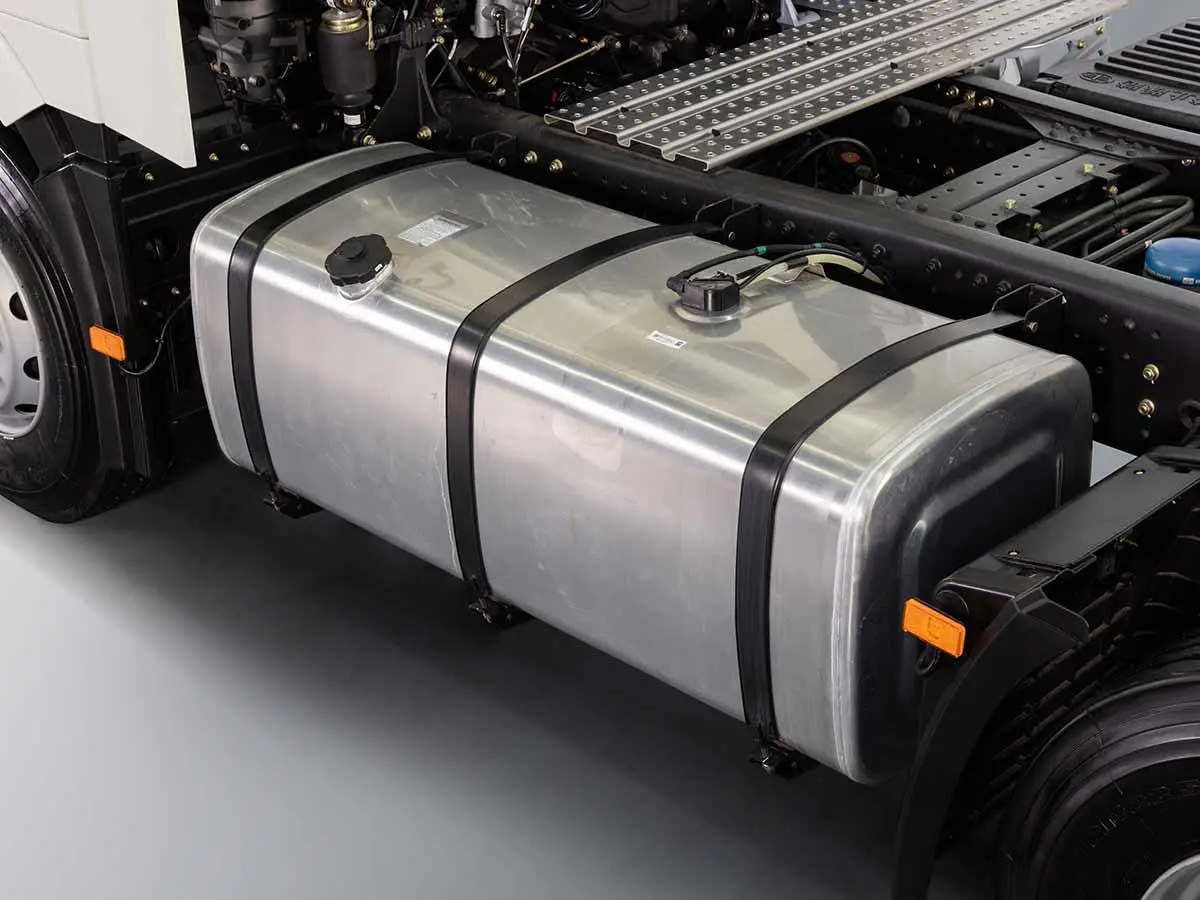

Time is money in the construction and mining industries, and the FAW J6P 8X4 Dump Truck is designed to maximize productivity. Its advanced hydraulic tipping system allows the FAW J6P 8X4 Dump Truck to unload payloads in just 15 seconds, reducing waiting times and increasing the number of trips per day. The FAW J6P 8X4 Dump Truck also incorporates fuel-saving technologies, including an optimized engine management system and low-resistance tires, which cut fuel consumption by up to 8% compared to traditional dump trucks. With a large 400L fuel tank, the FAW J6P 8X4 Dump Truck can travel up to 1000 kilometers on a single tank, minimizing refueling stops and keeping operations running smoothly.
FAW J6P 8X4 Dump Truck : Safety & Comfort for the Driver

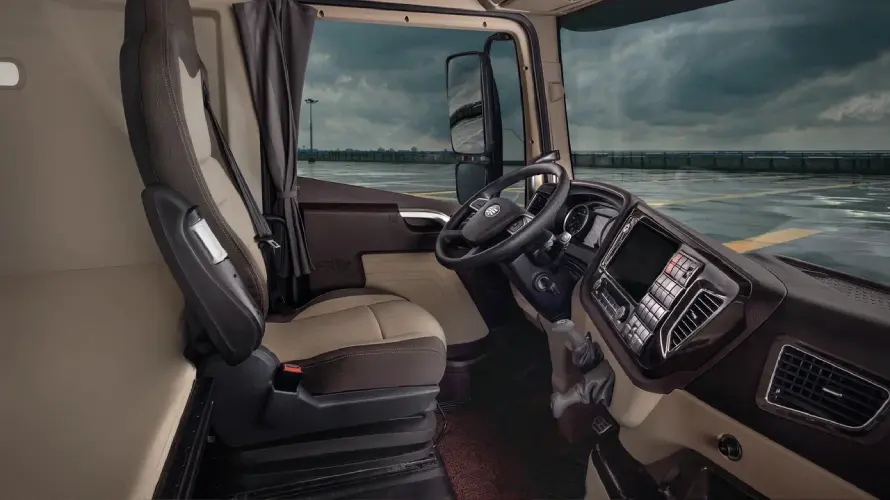

The FAW J6P 8X4 Dump Truck prioritizes driver safety and comfort, with a spacious, ergonomic cabin that reduces fatigue during long shifts. Its full-floating cab structure and air suspension system absorb road vibrations, creating a smooth ride even on rough terrain. The FAW J6P 8X4 Dump Truck is equipped with a range of safety features, including anti-lock braking system (ABS), electronic stability control (ESC), and a reinforced cab structure that provides superior protection in the event of a collision. Optional features like a rearview camera and lane departure warning system further enhance safety, helping drivers navigate tight job sites and busy highways with confidence.
FAW J6P 8X4 Dump Truck: Versatility for Every Application
It can be equipped with different body sizes, from 5.4 meters to 7.6 meters, allowing operators to tailor the FAW J6P 8X4 Dump Truck to their specific hauling needs. The FAW J6P 8X4 Dump Truck also supports various dumping types, including front lifting and side lifting, making it suitable for transporting different types of materials. Whether used in urban construction, large-scale mining operations, or rural infrastructure projects, the FAW J6P 8X4 Dump Truck delivers the flexibility and performance required to get the job done.
