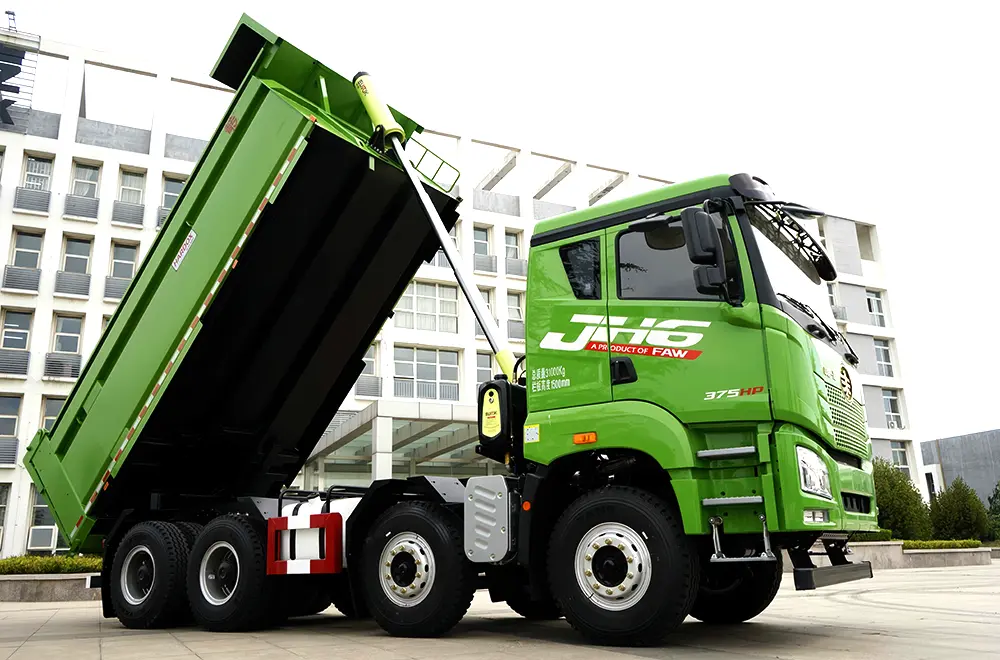

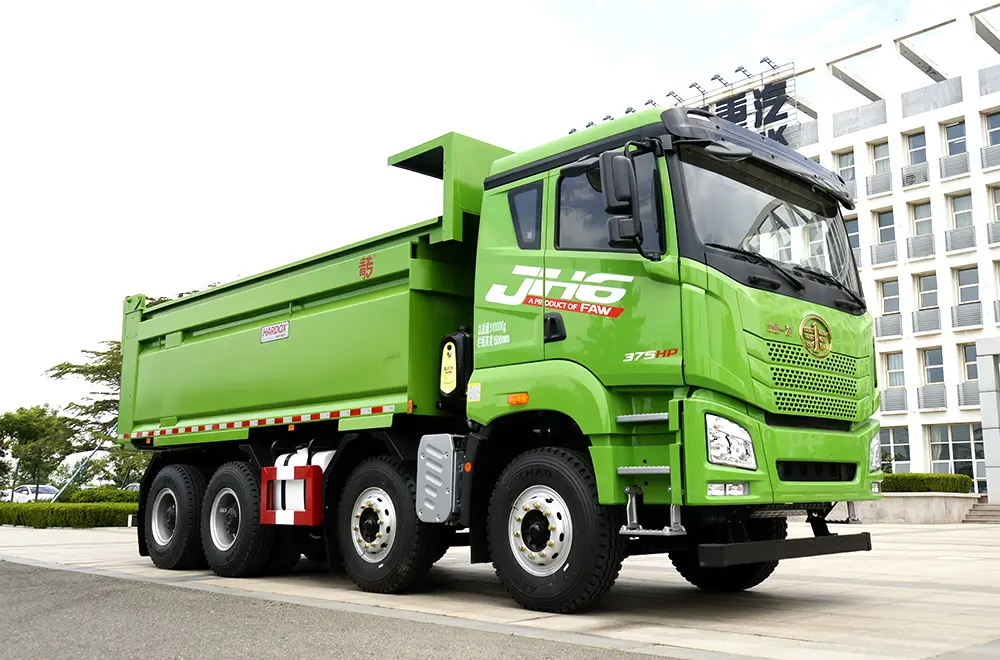

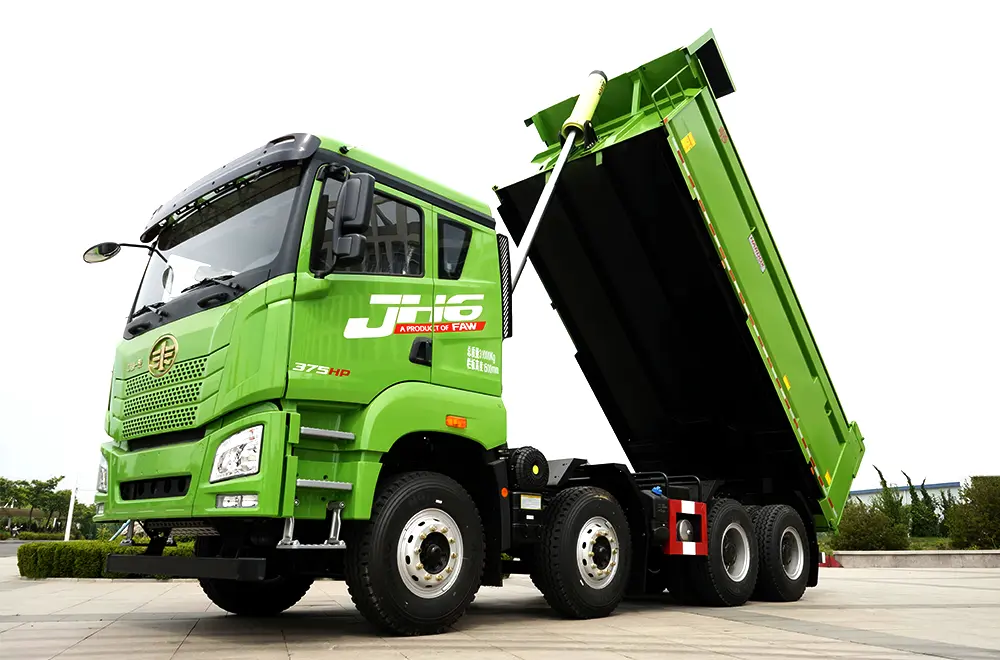

Faw Jiefang Jh6 8x4 Tipper Truck
Engineered by FAW, a leader in commercial vehicle innovation, the FAW JH6 8x4 Dump Truck delivers unmatched performance in hauling heavy loads across rough terrains, making it the top choice for fleet operators and construction firms worldwide.
The JIEFANG JH6 8X4 Tipper Truck is a heavy-duty workhorse engineered for demanding construction, mining, and infrastructure projects. Combining robust performance, advanced safety features, and driver-centric comfort, it delivers exceptional reliability and productivity in challenging operating conditions.
TECHNICAL DATA
| FAW JIEFANG JH6 8X4 TIPPER TRUCK | |
| Color | Multiple colors available |
| Drive Type | 8×4 |
| Driving Position | Right and left-hand drive available |
| Emission Standards | Euro 2 (E2), Euro 3 (E3), Euro 5 (E5) |
| Engine | Xichai CA6DM2-42, Weichai WP10.380E32, Weichai WP12.430E50, Xichai CA6DM2-42, Xichai CA6DM2-42E5 |
| Engine Horsepower | 340PS, 370PS, 380PS, 390PS, 420PS, 460PS, 500PS |
| Clutch Type | Ø430 |
| Transmission | FAW CA10TA190F, FAW CA12TA210M, Shaanxi Gear 10JSD200B, Shaanxi Gear 12JSD160T |
| Front Axle | 2020 front axle, 2055 front axle, A1H-Haitong |
| Rear Axle | 300 wheel reducer, 300 cast wheel reducer, 457 upgraded stamped and welded axle |
| Rear Axle Ratio | 4.26, 4.44, 4.875, 5.263, 5.286, 5.921 |
| Frame | 300*80*(8+8+5), 300 ×80×(8+8) |
| Cab Configuration | JH6 raised-floor, high-top, fully floating cab |
| Tires | 12.00R20 18-ply, 12.00R24 20-ply, 13R22.5-20-ply |
| Wheelbase | 1900+3800+1350, 1900+3400+1850, 1900+4200+1350 |
| Cab | 7800×2300×800 |
| Load Capacity | 18 tons |
| Other Features | 180AH battery, imported clutch, 400L steel fuel tank, WABC Clutch booster, internal spline power take-off and control mechanism, WABCO valves throughout, front axle anti-roll bar, electric lift, electric mirrors, electric doors and windows, automatic air conditioning, leaf springs (11/13 front, 13 rear), 4 main springs front and rear, reinforced rear spring (28mm), Camel battery, oil filter, double I-bar rear balancing suspension, 4U bolts, 8.8 steel rims, small bumper, front and rear light guards, engineering tires, long-term maintenance coarse filter, overseas vehicle |
FEATURES AND BENEFITS
JIEFANG JH6 8X4 TIPPER TRUCK
- Powerful Engine Options: Equipped with top-tier engines like the Weichai WP10H400E62 (400 hp), Yuchai YCK11430-60 (430 hp), or Xichai CA6DM3 (up to 560 hp), meeting China VI emission standards. The engines deliver high torque (up to 2100 N·m) for strong low-end pulling power, ensuring efficient loading and uphill performance.
- Transmission & Axle: Paired with a Fast 12-speed manual or automatic transmission, the truck offers smooth shifting and optimized fuel efficiency. The heavy-duty rear axle with a robust reduction ratio (e.g., 5.263, 5.921) ensures maximum traction on rough terrain.
- Payload Capacity: With a total vehicle weight of 31-32 tons and a payload capacity of up to 18.97 tons, it handles large volumes of materials such as sand, gravel, and construction waste with ease.
JIEFANG JH6 8X4 TIPPER TRUCK
- Reinforced Chassis: The high-strength steel frame (300×80×7 mm) and heavy-duty suspension system (multi-leaf springs or optional air suspension) provide exceptional resistance to twisting and impact, extending service life.
- Rugged Tipper Body: Available in lengths from 5.6m to 6.8m, the tipper body is made of wear-resistant steel. It features a reliable hydraulic lifting system for fast and stable unloading, with an optional automatic tarpaulin for environmental protection.
- Corrosion Protection: Key components are treated with anti-corrosion coating, ensuring durability in harsh environments like coastal regions or chemical handling sites.
Designed Around the Driver
From the moment you step inside, the FAW Truck's cabin reflects a commitment to driver-first design.
FAW JH6 8×4 Dump Truck is a cost-effective investment with low operational costs.
Its fuel-efficient engine reduces fuel consumption, while the durable components and easy-to-service design minimize maintenance expenses and downtime. The FAW JH6 6×4 Dump Truck also comes with FAW’s global warranty and a network of service centers, ensuring you get reliable support wherever your projects take you.
Key Features
Drivability
Fuel Efficiency
Safety
Productivity
Uptime
