Faw J6P 6X4 Electric Tractor Truck
As the global logistics industry shifts towards sustainability, the FAW J6P 6X4 Electric Tractor Truck emerges as a pioneering solution for green transportation.
ombining the legendary reliability of the J6P platform with cutting-edge battery-electric technology, the FAW J6P 6X4 Electric Tractor Truck is engineered to provide high-performance, zero-emission hauling for port logistics, mining operations, and short-to-medium haul urban distribution.
FAW J6P 6X4 Electric Tractor Truck: The Future of Zero-Emission Heavy Haulage
TECHNICAL DATA
| Category | Specification Details |
|---|---|
| Truck Name | Faw J6P 6X4 Electric Tractor Truck |
| Basic Information | – Model: CA4250P66K25T1BEV – Drive Type: 6X4 – Condition: New – Certification: ISO9001, CCC, CE |
| Dimensions & Weight | – Wheelbase: 3450+1350 mm – Overall Length: 7120 mm – Width: 2550 mm – Height: 3700 mm – Tare Weight: 9.8 tons – GVW: 25 tons – Max Towing Capacity: 40 tons |
| Electric Powertrain | – Motor Type: Permanent Magnet Synchronous Motor – Peak Power: 360 kW – Continuous Power: 240 kW – Peak Torque: 2500 N·m – Battery Capacity: 350 kWh (LFP) – Range: up to 250 km (on full load, comprehensive working condition) |
| Charging & Efficiency | – Fast Charging Time: 0-80% in 1.5 hours (DC 250 kW) – Max Speed: 89 km/h – Optimal Economic Speed: 50-70 km/h |
| Chassis & Suspension | – Front Axle Load: 7.0 tons – Rear Axle Load: 18.0 tons (dual axle group) – Rear Axle Type: 457 cast steel bridge (with differential lock) – Suspension: Leaf spring suspension (Front 12/Rear 12+12) – Tire Specification: 12R22.5-18PR (10 tires + 1 spare) |
| Cab | – Type: High-Roof Double Sleeper Cab – Seating: 3 Persons – Features: Air-Suspension Driver Seat, Automatic AC, LCD Instrument Panel |
| Safety Features | – Anti-lock Braking System (ABS) – Electronic Stability Program (ESP) – Dual Airbags – Tire Pressure Monitoring System |
| Electrical System | – Voltage: 600V DC – Auxiliary Battery: 24V/150Ah |
| Warranty | – Vehicle: 2 Years or 100,000 km – Battery: 5 Years or 200,000 km – Motor: 5 Years or 200,000 km |
FEATURES AND BENEFITS
FAW J6P 6X4 Electric Tractor Truck: Cutting-Edge Electric Powertrain
The heart of the FAW J6P 6X4 Electric Tractor Truck is a high-efficiency permanent magnet synchronous motor, delivering a peak power of up to 400kW (approx. 540HP) and instantaneous torque that outperforms traditional diesel engines. This allows the FAW J6P 6X4 Electric Tractor Truck to handle heavy loads and steep inclines with ease, all while maintaining near-silent operation and zero tailpipe emissions.
FAW J6P 6X4 Electric Tractor Truck: Advanced Battery & Charging Technology
Equipped with large-capacity Lithium Iron Phosphate (LFP) battery packs (typically 282kWh to 423kWh), the FAW J6P 6X4 Electric Tractor Truck offers a competitive operational range. Supporting both high-speed DC charging and innovative battery-swapping technology, the truck can be fully “refueled” in under 5 minutes at a swap station, ensuring maximum vehicle uptime and 24/7 fleet productivity.
FAW J6P 6X4 Electric Tractor Truck: Optimized 6X4 Chassis for Electric Power
The chassis of the FAW J6P 6X4 Electric Tractor Truck has been specifically reinforced to accommodate battery weight while maintaining a high payload capacity. The 6X4 drive configuration ensures superior traction and stability, making it the ideal electric prime mover for heavy-duty trailers. Integrated regenerative braking further enhances efficiency by recovering energy during deceleration, extending the driving range in “stop-and-go” environments.
Why Invest in the FAW J6P 6X4 Electric Tractor Truck?
FAW J6P 6X4 Electric Tractor Truck features an intelligent Thermal Management System (TMS).
FAW J6P 6X4 Electric Tractor Truck: Intelligent Energy Management
Zero Emissions: Meet ESG goals and access “Green Zones” where diesel trucks are restricted.
Significant Cost Savings: Lower energy costs per kilometer and drastically reduced maintenance expenses due to fewer moving parts compared to internal combustion engines.
Enhanced Driver Comfort: Silent operation and smooth acceleration reduce driver fatigue significantly.
Proven Platform: Built on the J6P chassis, famous for its 1 million km B10 life and rugged durability.
Key Features
Drivability
Fuel Efficiency
Safety
Productivity
Uptime
Product video

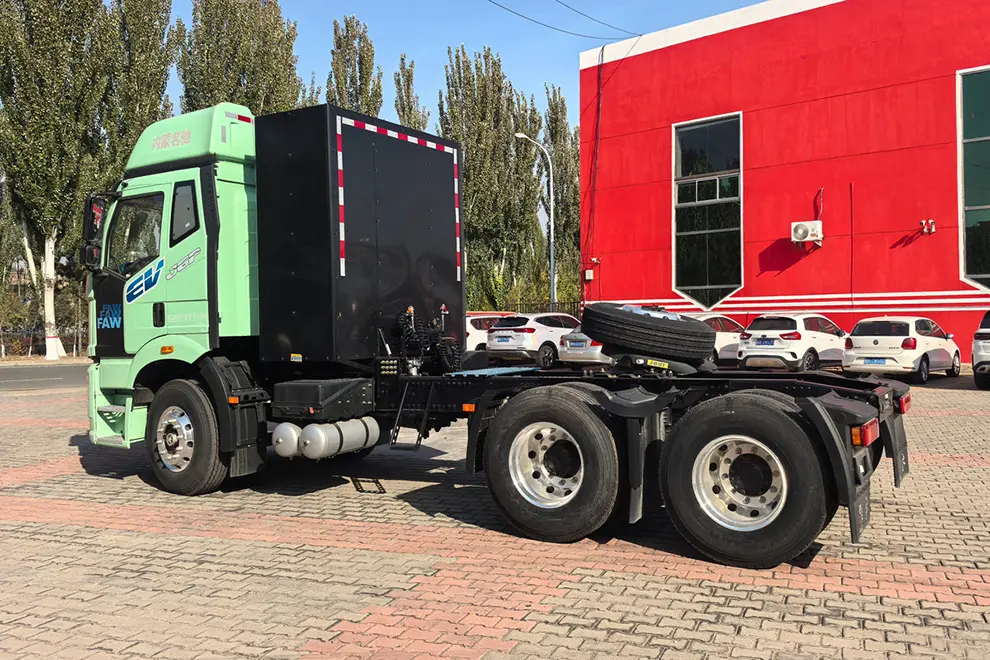

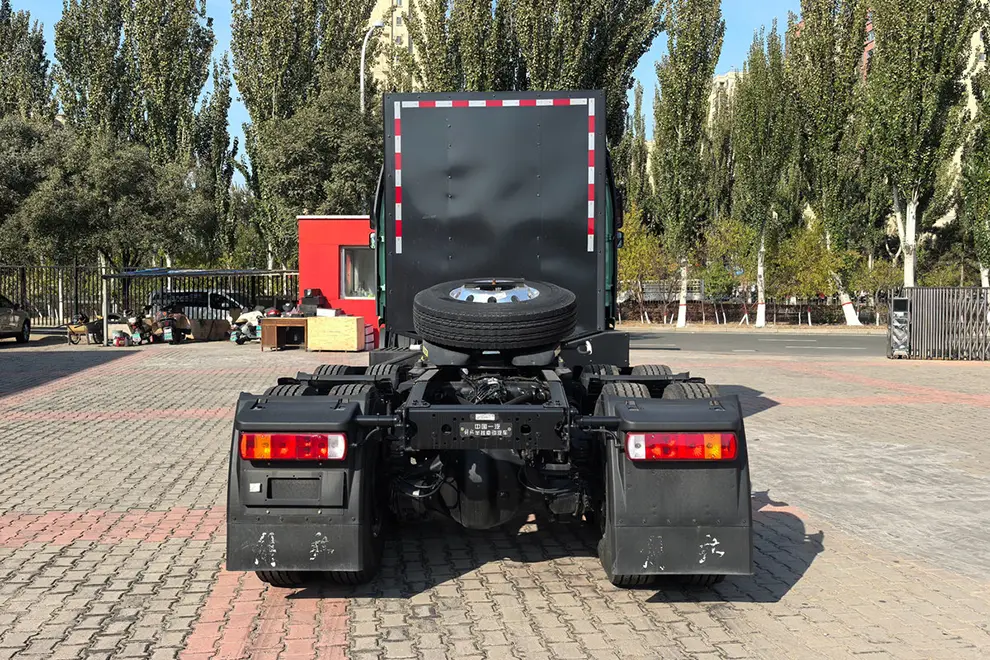

faw J6P Truck Gallery
