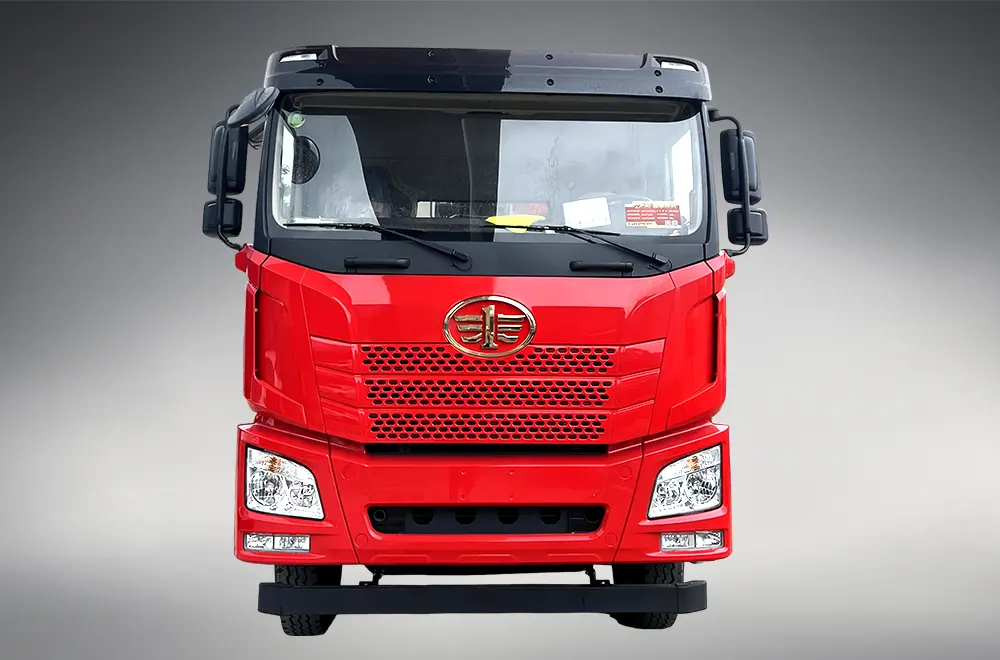

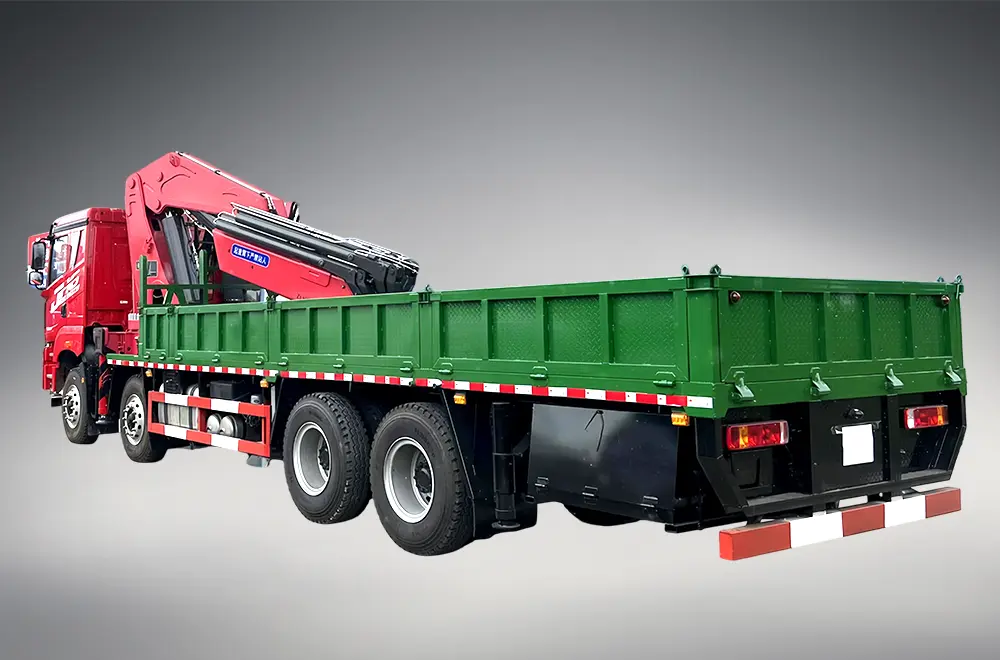

Faw JH6 Truck Mounted Crane
TECHNICAL DATA
| China Faw JH6 Truck Mounted Crane | |
| Color | Multiple Options Available |
| Drive Type | 8×4 |
| Driving Position | Right-Hand Drive |
| Emission Standard | Euro 2 (E2) |
| Engine | Xichai CA6DM2-42, Weichai WP12.460E50, Xichai CA6DM2-42E52 |
| Engine Horsepower | 370PS, 390PS, 420PS, 460PS |
| Clutch Model | Ø430 |
| Transmission | Shaanxi Gear 12JSDX220TA-B, FAW CA12TAX160F (Half-Aluminum Shell) |
| Front Axle | 2020 Front Axle – FAW |
| Rear Axle | 457 Upgraded Welded Axle (with Inter-wheel Differential Lock) (5.833 Ratio), 300 Reducer Axle (4.26 Ratio) |
| Rear Axle Ratio | 5.921, 4.91, 4.26 |
| Frame | 300*80*(8+5+8) |

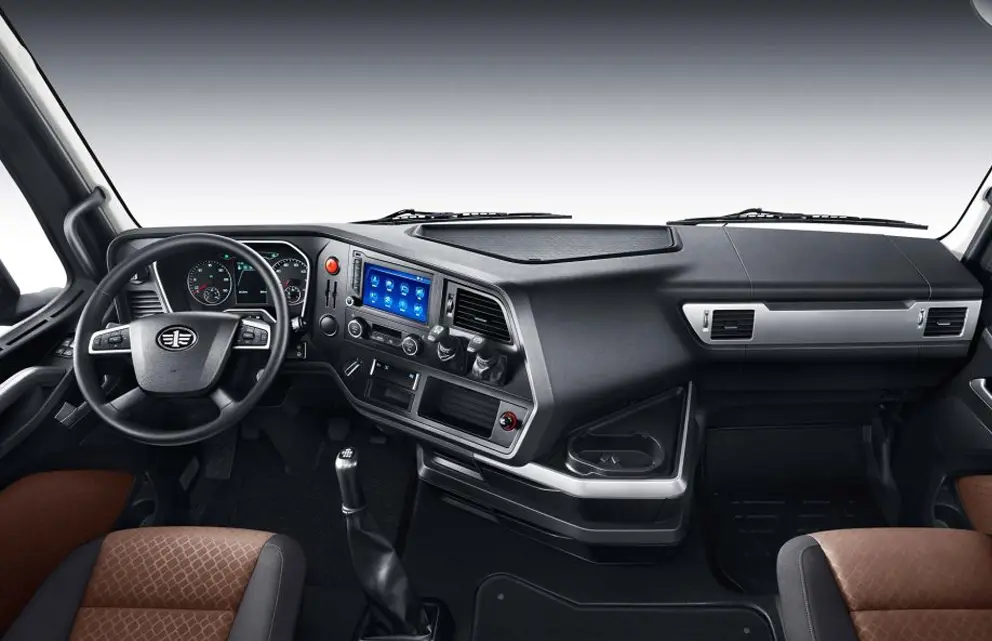

| Cab Configuration | JH6 Raised Floor, Right-Hand Drive, Semi-Flat Cab |
| Tires | 12.00R2018 Tire, 315/80R22.5-2 0PR Tier |
| Wheelbase | 2300+4200+1350, 1900+4900+1350, 2300+5865+1350, 2300+4200+1350 |
| Maximum Lifting Torque (kN·m) | 520 |
| Maximum Lifting Capacity (kg) | 20000 |
| Maximum Hydraulic Boom Length (m) | 23.7 |
| Deadweight (kg) | 7600 |
| Other Features | Dedicated chassis for truck-mounted cranes, 150Ah battery, 400L steel fuel tank, hand throttle, TRW steering, WABCO clutch booster, WABCO valves throughout, front underbody guard, small bumper, power lift, power mirrors, power windows, air conditioning, double transition arms, 9/9/10 leaf springs, weight-reducing 4U bolts, 220V power supply, multi-function steering wheel, engine oil change intervals, long-maintenance coarse filter, power take-off and control mechanism, 2700 rear overhang, warning light bracket, four-point cab air suspension |

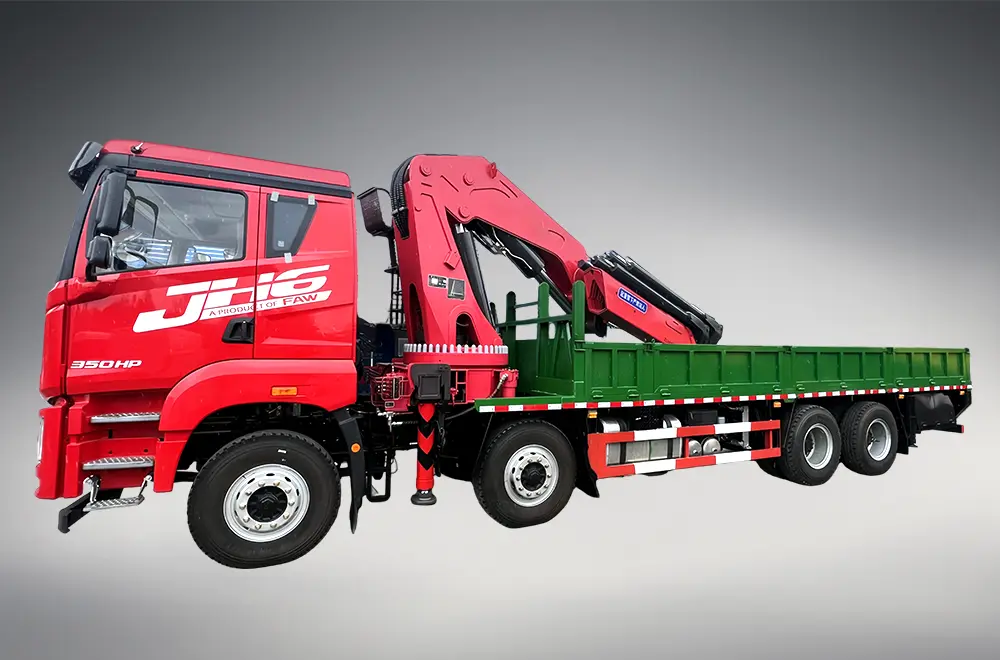

Crane Configuration: Offers multiple crane options, including straight boom (6-16 tons) and knuckle boom (8-10 tons) models, with boom sections ranging from 2 to 5 sections. The maximum lifting height reaches 12-28 meters, and the maximum horizontal working radius extends to 10-25 meters.
Chassis & Power: Based on the FAW Jiefang JH6 6×4/8×4 chassis, powered by a 350-460 HP Weichai diesel engine that meets Euro V emission standards. Equipped with a 12-speed manual or automatic transmission, ensuring strong power output and fuel efficiency.
Payload Capacity: The truck’s cargo bed has a length of 5.8-7.8 meters and a load capacity of 10-16 tons, enabling simultaneous transport of crane equipment and construction materials.
Advanced Hydraulic System: Adopts an imported hydraulic system (e.g., Rexroth) with precise flow control, ensuring stable lifting and smooth boom operation. The system supports one-button telescoping and rotation, reducing operation time by 30% compared to conventional cranes.
Safety & Stability: Features 4-point outriggers with wide-span support (up to 8 meters) to maintain stability during heavy lifting. Equipped with overload protection, anti-roll sensors, and emergency stop systems to prevent accidents.
Certifications & After-Sales Support
Compliance: Meets ISO 9001 quality management system certification, CCC (China Compulsory Certificate), and export standards for regions like Africa, Southeast Asia, and the Middle East.
Warranty & Service: Offers a 1-year/100,000 km warranty for the chassis and a 1-year warranty for crane components. FAW’s global service network provides 24/7 technical support and spare parts supply.
Customization: Supports tailored configurations such as extended cargo beds, enhanced crane lifting capacity, and special anti-corrosion coatings for coastal or chemical industry use.
