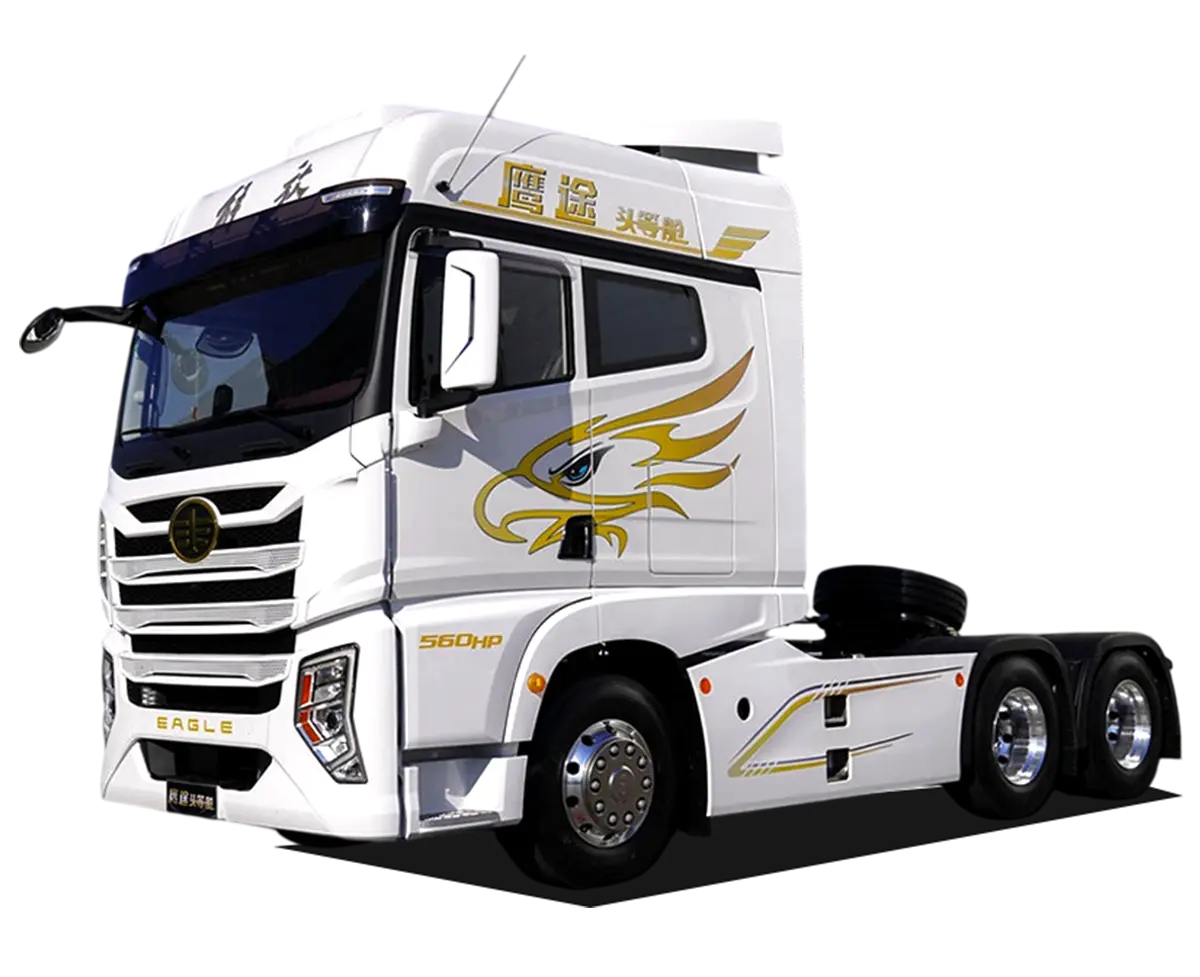

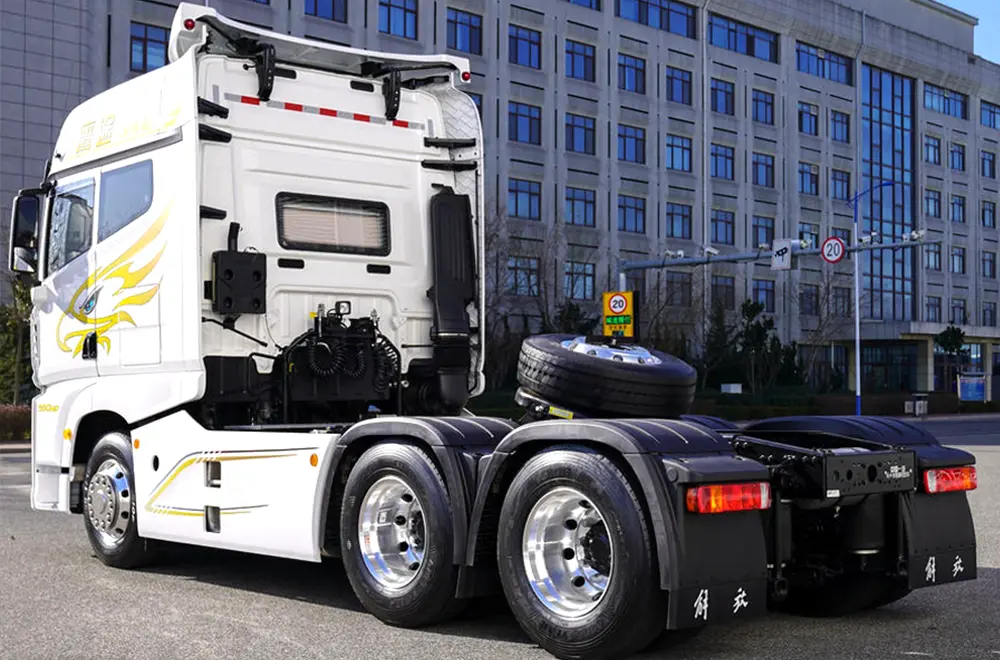

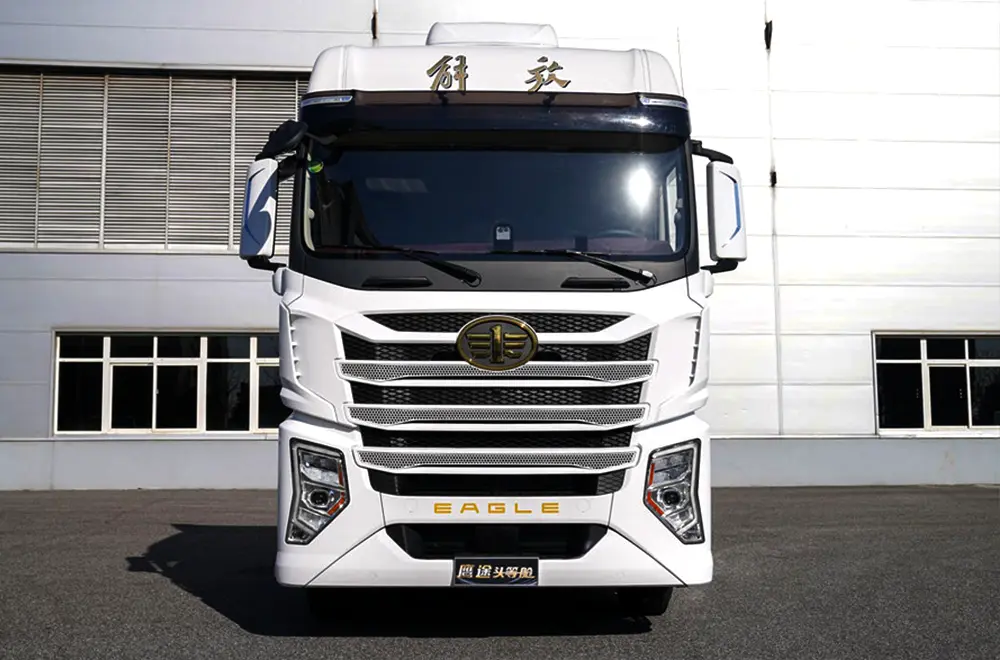

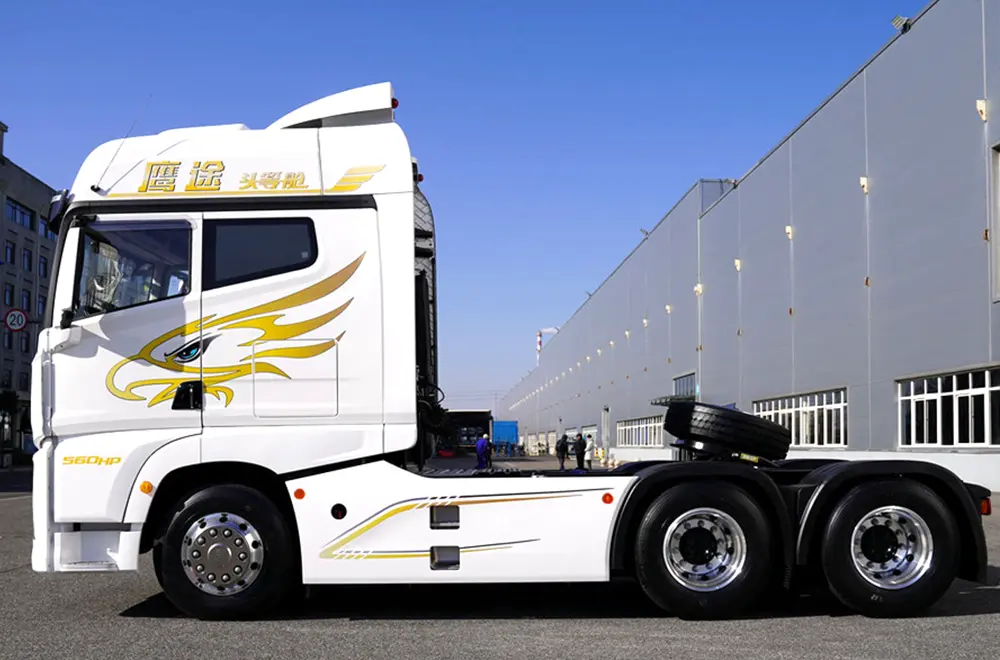

FAW Eagle Path tractor head
TECHNICAL DATA
| FAW EAGLE PATH TRACTOR HEAD | |
| Announcement Model: | CA4259P35K2T1E6A80 |
| Drive Type: | 6X4 |
| Place of Origin: | Qingdao, Shandong |
| Wheelbase: | 3300 1350mm |
| Vehicle Length: | 7.16 meters |
| Vehicle Width: | 2.55 meters |
| Vehicle Height: | 3.96 meters |
| Curb Weight: | 8.805 tons |
| Gross Weight: | 25 tons |
| Top Speed: | 89 km/h |
| Gross Trailer Weight: | 40 tons |
| Tonnage Class: | Heavy truck |
| Segment: | Logistics and distribution |
| Engine: | Xichai CA6DM3-56E6 |
| Version: | First-class cabin |
| Energy Type: | Diesel |
| Front Track: | 2020mm |
| Rear Track: | 1830/1830mm |
| Engine Model: | Xichai CA6DM3-56E6 |
| Engine Brand: | Xichai |
| Number of Cylinders: | 6 cylinders |
| Fuel Type: | Diesel |
| Cylinder Arrangement: | Inline |
| Displacement: | 12.52L |
| Emission Standard: | China VI emission |
| Maximum Horsepower: | 560 hp |
| Maximum Output Power: | 415 kW |
| Maximum Torque: | 2600 N·m |
| Maximum Torque RPM: | 1100-1300 rpm |
| Rated Speed: | 1800 rpm |
| Cab: | High roof |
| Seating Capacity: | 2 people |
| Number of Seat Rows: | Extended cab |
| Cab Lift: | Electric |
| Driver Seat Type: | Air-suspension seats |
Powertrain:
Engine: High-performance diesel engine delivering 560 HP (412 kW) power output
Transmission: AMT (Automated Manual Transmission) with optimized gear ratios for smooth shifting and fuel efficiency
Emission Standard: Euro 6 compliant with advanced exhaust treatment systems including SCR (Selective Catalytic Reduction)
Performance: Powerful engine with substantial low-end torque for strong pulling power and reliable operation on steep gradients
Dimensions & Capacity:
Wheelbase: 3800+1350mm for 6×4 configuration, providing excellent stability for heavy loads
Drive Type: 6×4 configuration with powerful traction for challenging road conditions
Payload Capacity: Capable of towing semi-trailers with gross combination weight up to 40 tons
Fuel & Efficiency:
Fuel Tank: Large-capacity fuel tank for extended operation between refueling stops
Fuel Efficiency: Advanced engine management system optimizing fuel consumption without sacrificing performance
Maintenance: Long service intervals and durable components reduce operating costs and downtime

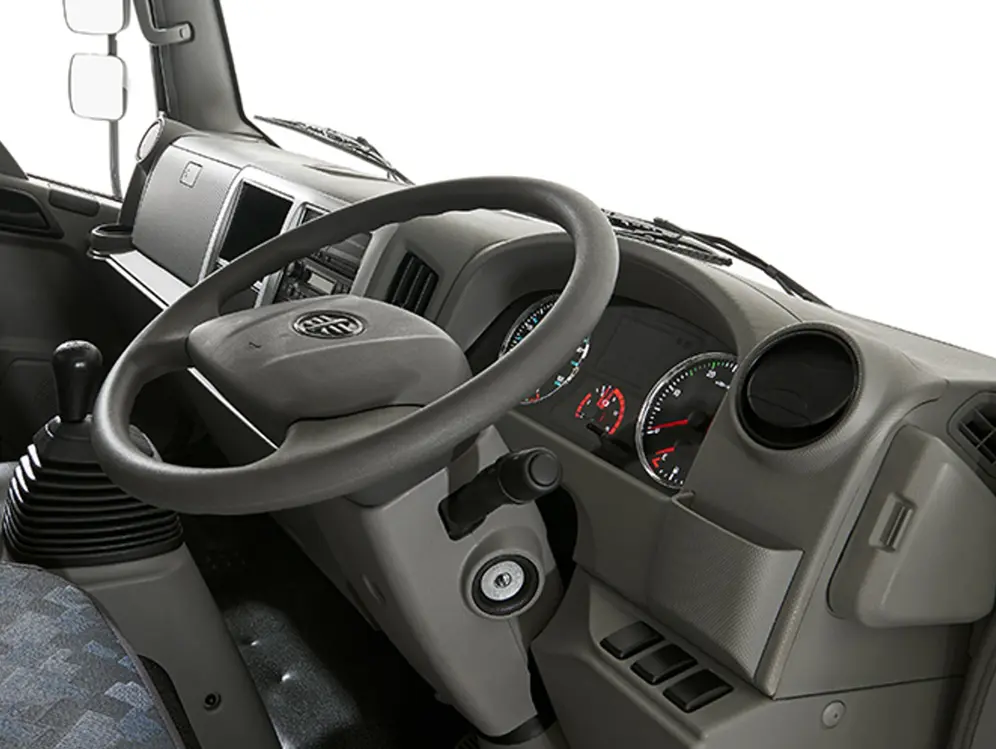

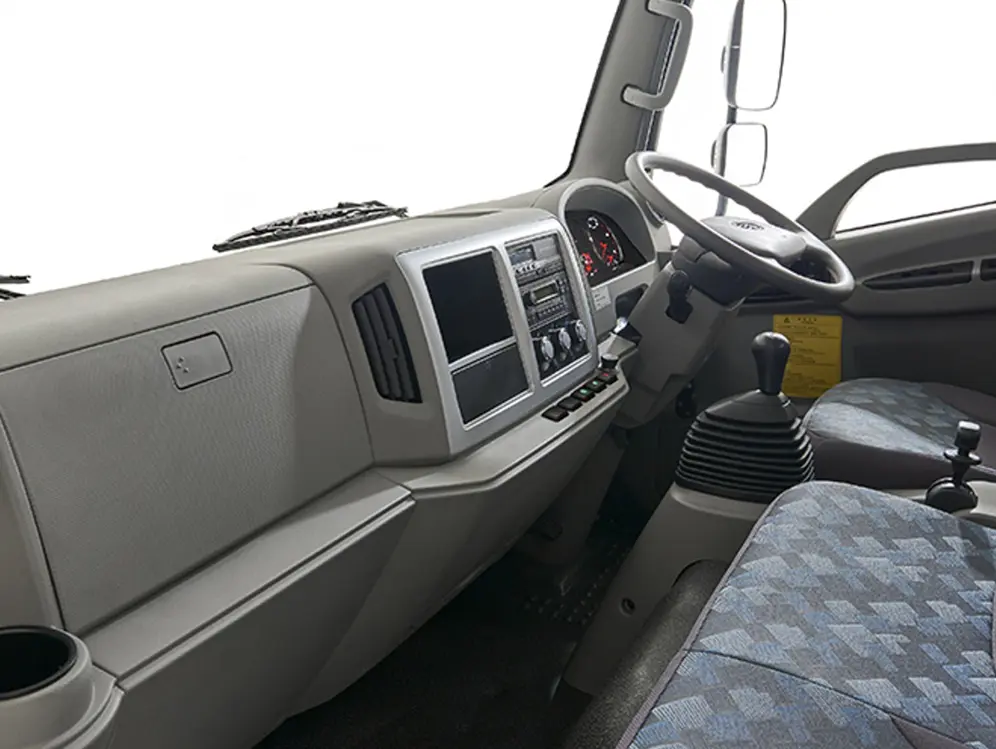

Cab Features:
Spacious “First Class” cabin design with ample headroom and legroom for enhanced driver comfort during long-haul trips
Advanced climate control system maintaining comfortable cabin temperature in all weather conditions
Ergonomic control layout with intuitive placement of vehicle functions and infotainment system
Premium materials and sound insulation for reduced noise and fatigue during extended driving
