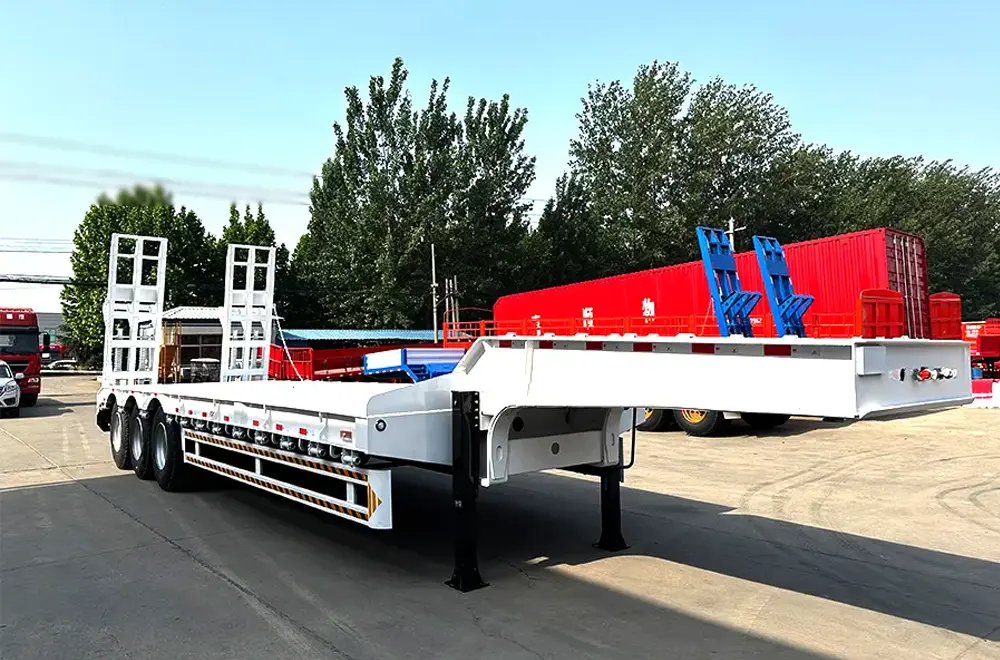

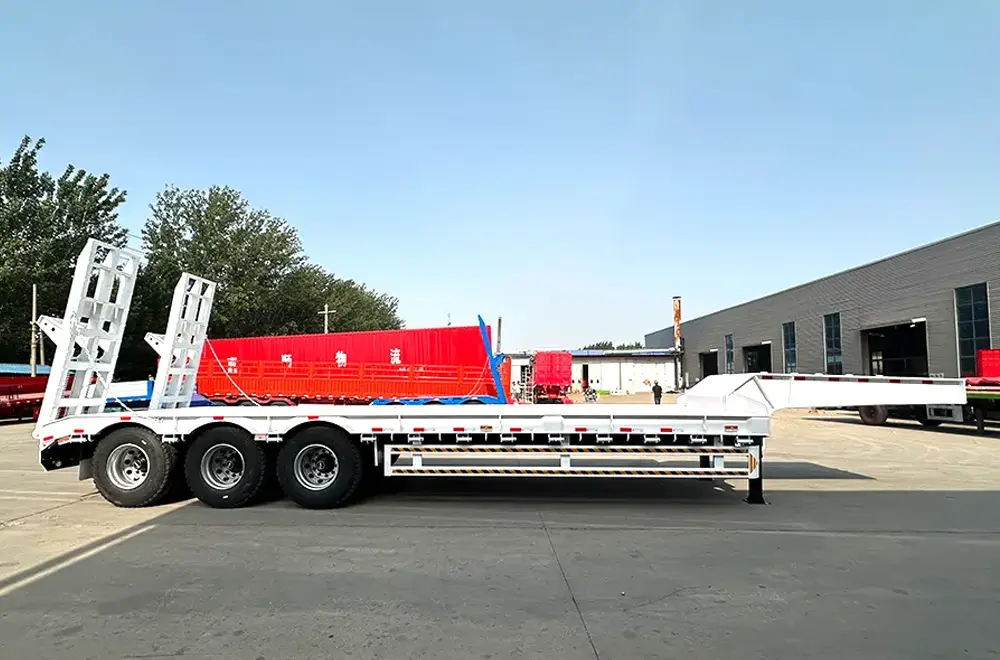

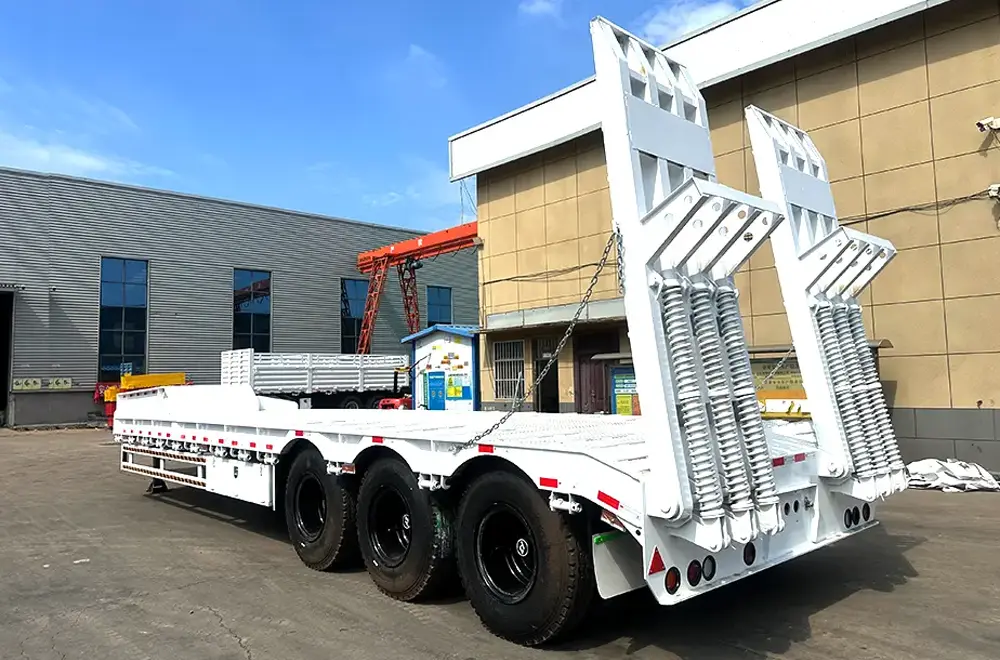

| FAW HEAVY DUTY FLATBED SEMI TRAILER | |
| Type | Low-bed semi-trailer |
| Overall Dimension (mm) | Length×width×height:12990,12500,12000,11600×3000×3100,3300,3500 |
| Total weight (Kg) : | 37000 |
| Approach Angle/Departure Angle: | -/32 |
| Front/rear suspension (mm) : | -/950 |
| Wheelbase (mm) : | 8920+1060+1060,8500+1060+1060,8110+1060+1060 |
| Axle Load: | -/21000(three axes) |
| number of axles： | 3 |
| Number of spring pieces: | -/4/4/4,-/8/8/8 |
| Number of tires: | 12 |
| Tire Specifications: | 8.25R20 14PR,235/75R17.5 16PR |
| Front wheel base: | / |
| Rear wheel base: | 2330/2330/2330,2400/2400/2400 |
| Others: | The bearing surface of the cargo platform is 700mm and 800mm above the ground. It is only used for transporting non-removable objects, and the goose neck position is not allowed to carry goods. The corresponding relationship between vehicle length/wheelbase/rear suspension is :12990/8920+1060+1060/950; Length/wheelbase/rear suspension corresponding to :12500/8920+1060+1060/950; The length/wheelbase/rear suspension correspondence is 12000/8500+1060+1060/950, and the length/wheelbase/rear suspension correspondence is 11600/8110+1060+1060/950, and body reflective signage has been installed on the sides and rear. Side protection material :Q235B, connection mode: bolt. Body parts replace the rear lower protection, the rear structure height from the ground :300mm.ABS system model :HNABS4S/4M |
Payload Capacity: Available in configurations with a payload capacity of 30-120 tons, supporting diverse heavy-duty transport needs. Multi-axle models (3-5 axles) are ideal for ultra-heavy cargo like excavators and large containers.
Axle & Suspension: Equipped with heavy-duty axles from trusted brands like Fuwa or BPW, paired with leaf spring suspension or air suspension systems. These ensure stable load distribution and smooth rides even on rough terrain.
Tire & Rim: Fitted with 12R22.5, 13R22.5, or 1200R20 tires (12-20 pieces depending on axle configuration) and reinforced rims to handle extreme weight and maintain durability.
Reinforced Flatbed Structure: The flatbed is constructed with high-strength steel, offering a loading surface length of 13-17 meters and width of 2.5-3 meters. Anti-slip checkered steel plates provide secure footing for cargo, while optional twist locks enable container transport.
Durable Chassis: The main frame uses thickened steel beams to resist bending and torsion, extending service life in heavy-duty operations. The trailer is optimized for low ground clearance to improve stability during high-speed transport.
Customization Options: Supports modifications such as removable goosenecks for oversized cargo, adjustable side rails, or specialized coatings for corrosion resistance in coastal or harsh environments.
