FAW JH6 Tipper Truck

FAW Jiefang JH6 8x4 Dump Truck | Large Capacity 12-Wheel Dumper

Inquire Now Message

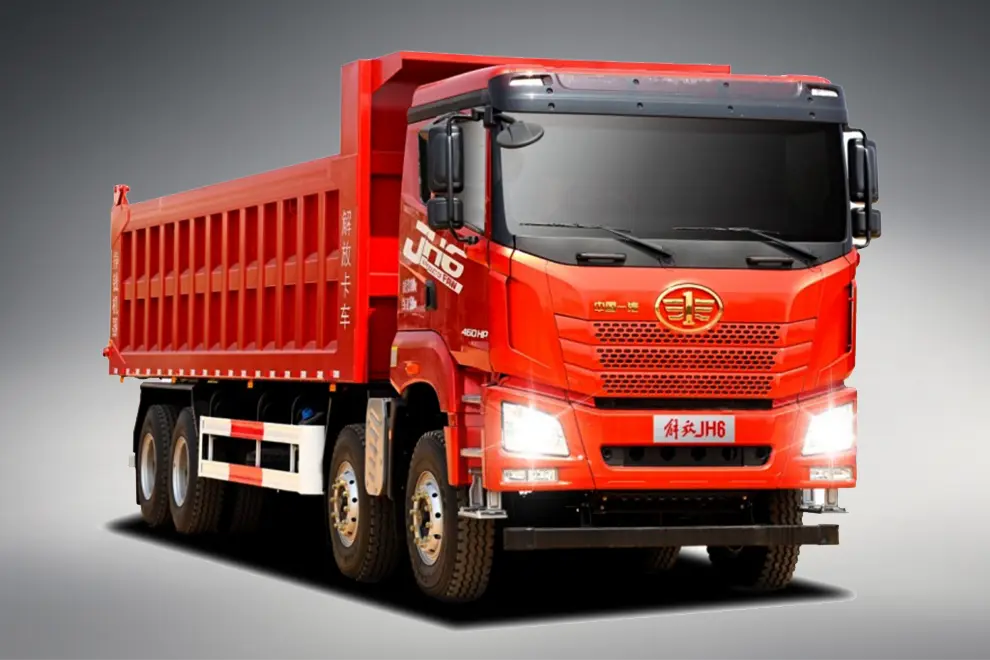

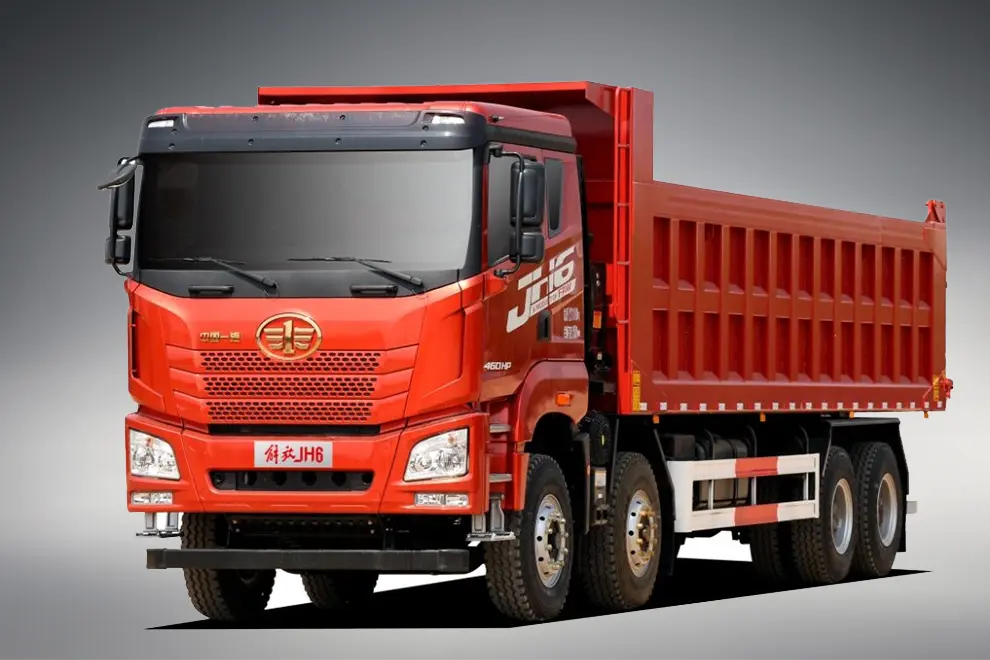

The FAW Jiefang JH6 Tipper Truck is a high-performance heavy-duty vehicle designed to meet the demanding requirements of construction, mining, and infrastructure projects. As part of FAW Jiefang's renowned JH6 series, which has sold over 500,000 units globally, this tipper truck combines exceptional power, durability, and efficiency to deliver reliable performance even in the toughest operating conditions. Available in both 6×4 and 8×4 configurations, the JH6 tipper truck offers an ideal balance of payload capacity and maneuverability, making it a popular choice for heavy-duty hauling operations across urban and rural construction sites.

TECHNICAL DATA

FAW JIEFANG JH6 8X4 TIPPER TRUCK
Product Name	Dump Truck
Chassis Model	JH6
Drive Type	8×4
Steering	Left Hand Drive / Right Hand Drive
Wheelbase(mm)	1900+2550+1350 / 1900+3400+1350 / 1900+4200+1350 etc
Frame(mm)	300x80x(8+5) / 300x80x(8+8) / 300x80x(8+8+5)
Rear Axle Ratio	4.26 / 5.263 / 5.291 / 6.733
Front Axle	2020 / 2055
Rear Axle	ф300 Cast steel improved iron) wheel reduction bridge
Engine Brand	FAWDE / WEICHAI
Number of cylinders	6
Cylinder Type	In-line
Displacement	11.05L / 12.5L
Emission Standard	Euro 2 / Euro 3 / Euro 5 / Euro 6
Horsepower	370HP; 380HP; 390HP; 420HP; 430HP; 460HP; 500HP
Transmission Brand	ZF / FAWDE / FAST
Transmission Type	Manual / Automatic
Forward Shift Number	12
Reverse Shift Number	2
Cabin	Flat roof / High roof
Cabin width(mm)	2550
Passengers	2
Seating Row	One row and a half
Driver’s Seat	Air conditioner
Fuel Tank Material	Steel / Aluminium
Fuel Tank Capacity	400L / 600L
Number of tires	12
Tires	12.00R20 ; 12.00R24 ; 12R22.5 ; 13R22.5 ; 315/80R22.5

FEATURES AND BENEFITS

JIEFANG JH6 8X4 DUMP TRUCK

Powerful Engine Options: Equipped with top-tier engines like the Weichai WP10H400E62 (400 hp), Yuchai YCK11430-60 (430 hp), or Xichai CA6DM3 (up to 560 hp), meeting China VI emission standards. The engines deliver high torque (up to 2100 N·m) for strong low-end pulling power, ensuring efficient loading and uphill performance.
Transmission & Axle: Paired with a Fast 12-speed manual or automatic transmission, the truck offers smooth shifting and optimized fuel efficiency. The heavy-duty rear axle with a robust reduction ratio (e.g., 5.263, 5.921) ensures maximum traction on rough terrain.
Payload Capacity: With a total vehicle weight of 31-32 tons and a payload capacity of up to 18.97 tons, it handles large volumes of materials such as sand, gravel, and construction waste with ease.

JIEFANG JH6 8X4 DUMP TRUCK

Reinforced Chassis: The high-strength steel frame (300×80×7 mm) and heavy-duty suspension system (multi-leaf springs or optional air suspension) provide exceptional resistance to twisting and impact, extending service life.
Rugged Tipper Body: Available in lengths from 5.6m to 6.8m, the tipper body is made of wear-resistant steel. It features a reliable hydraulic lifting system for fast and stable unloading, with an optional automatic tarpaulin for environmental protection.
Corrosion Protection: Key components are treated with anti-corrosion coating, ensuring durability in harsh environments like coastal regions or chemical handling sites.

Designed Around the Driver

From the moment you step inside, the FAW Truck's cabin reflects a commitment to driver-first design.

FAW JH6 8×4 Dump Truck is a cost-effective investment with low operational costs.

Its fuel-efficient engine reduces fuel consumption, while the durable components and easy-to-service design minimize maintenance expenses and downtime. The FAW JH6 6×4 Dump Truck also comes with FAW’s global warranty and a network of service centers, ensuring you get reliable support wherever your projects take you.

Key Features

Drivability

Fuel Efficiency

Safety

Productivity

Uptime
