Faw Jiefang JH6 Dump Truck

FAW Jiefang JH6 8x4 Dump Truck | Large Capacity 12-Wheel Dumper

Inquire Now Message

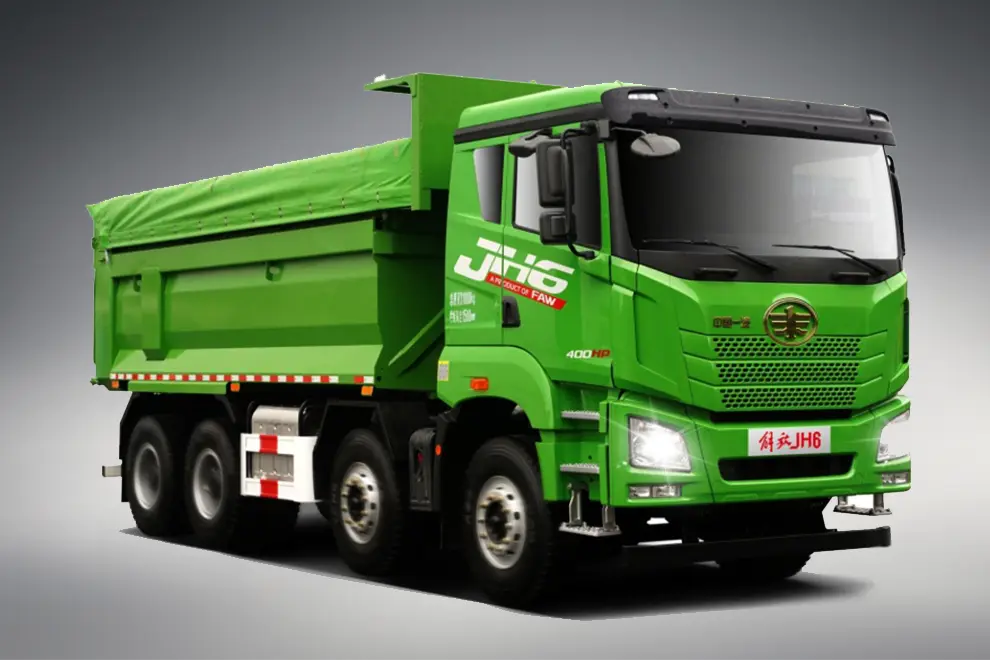

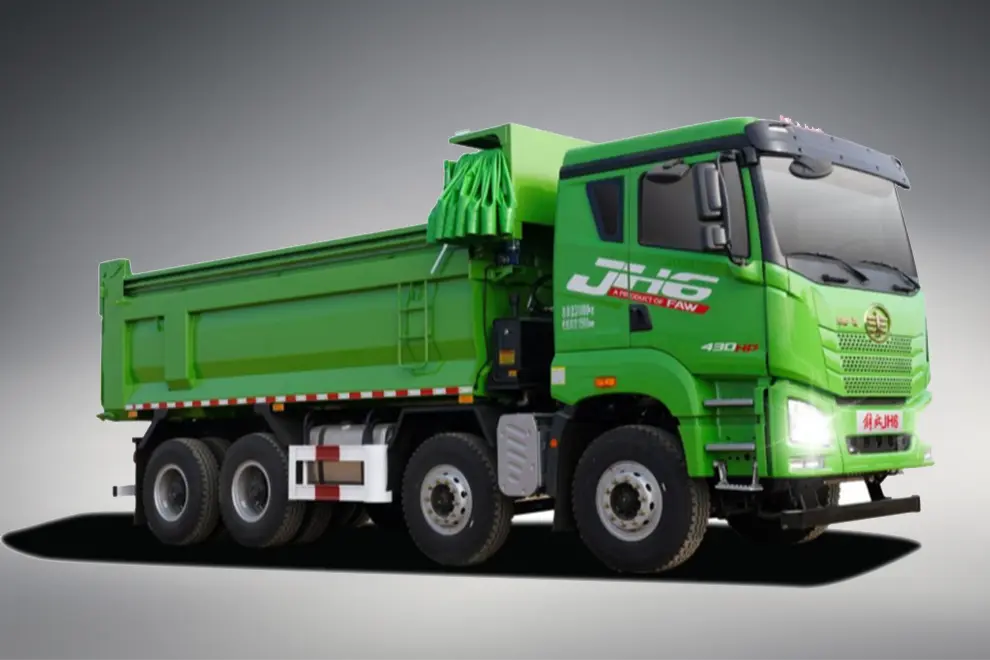

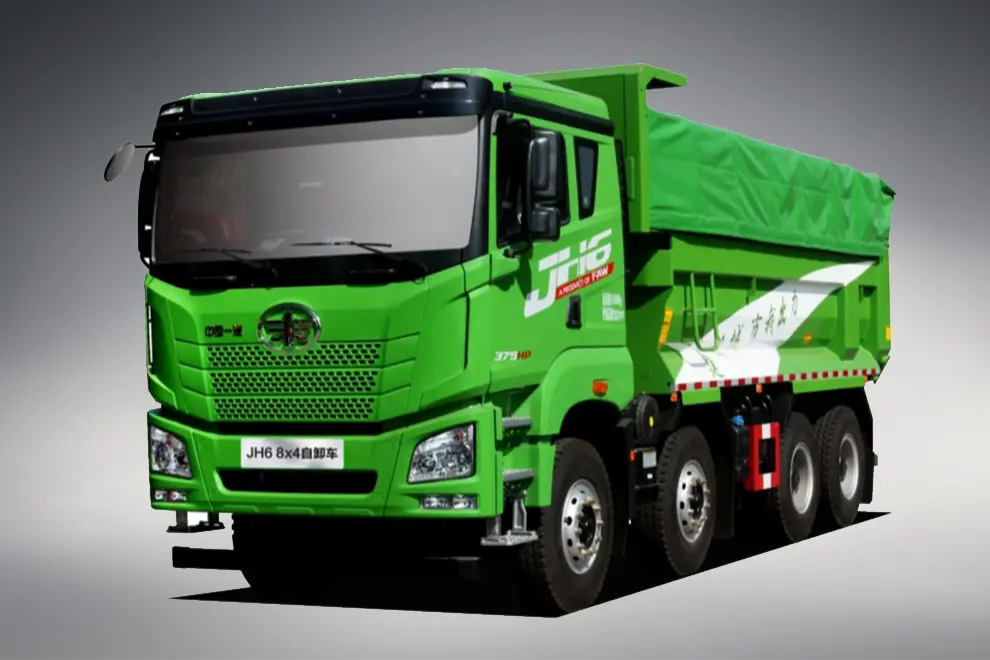

The FAW Jiefang JH6 8×4 Dump Truck is a high-performance heavy-duty vehicle designed to meet the demanding requirements of construction, mining, and infrastructure projects. Built on the reliable JH6 heavy-duty chassis platform, this dump truck combines exceptional power, durability, and efficiency to deliver reliable performance even in the toughest operating conditions. The 8×4 configuration offers an ideal balance of payload capacity and maneuverability, making it a popular choice for heavy-duty hauling operations across urban and rural construction sites.

TECHNICAL DATA

FAW JIEFANG JH6 8X4 DUMP TRUCK
Color	Multiple colors available
Drive Type	8×4
Driving Position	Right and left-hand drive available
Emission Standards	Euro 2 (E2), Euro 3 (E3), Euro 5 (E5)
Engine	Xichai CA6DM2-42, Weichai WP10.380E32, Weichai WP12.430E50, Xichai CA6DM2-42, Xichai CA6DM2-42E5
Engine Horsepower	340PS, 370PS, 380PS, 390PS, 420PS, 460PS, 500PS
Clutch Type	Ø430
Transmission	FAW CA10TA190F, FAW CA12TA210M, Shaanxi Gear 10JSD200B, Shaanxi Gear 12JSD160T
Front Axle	2020 front axle, 2055 front axle, A1H-Haitong
Rear Axle	300 wheel reducer, 300 cast wheel reducer, 457 upgraded stamped and welded axle
Rear Axle Ratio	4.26, 4.44, 4.875, 5.263, 5.286, 5.921
Frame	30080(8+8+5), 300 ×80×(8+8)
Cab Configuration	JH6 raised-floor, high-top, fully floating cab
Tires	12.00R20 18-ply, 12.00R24 20-ply, 13R22.5-20-ply
Wheelbase	1900+3800+1350, 1900+3400+1850, 1900+4200+1350
Cab	7800×2300×800
Load Capacity	18 tons
Other Features	180AH battery, imported clutch, 400L steel fuel tank, WABC Clutch booster, internal spline power take-off and control mechanism, WABCO valves throughout, front axle anti-roll bar, electric lift, electric mirrors, electric doors and windows, automatic air conditioning, leaf springs (11/13 front, 13 rear), 4 main springs front and rear, reinforced rear spring (28mm), Camel battery, oil filter, double I-bar rear balancing suspension, 4U bolts, 8.8 steel rims, small bumper, front and rear light guards, engineering tires, long-term maintenance coarse filter, overseas vehicle

FEATURES AND BENEFITS

JIEFANG JH6 8X4 DUMP TRUCK

Powerful Engine Options: Equipped with top-tier engines like the Weichai WP10H400E62 (400 hp), Yuchai YCK11430-60 (430 hp), or Xichai CA6DM3 (up to 560 hp), meeting China VI emission standards. The engines deliver high torque (up to 2100 N·m) for strong low-end pulling power, ensuring efficient loading and uphill performance.
Transmission & Axle: Paired with a Fast 12-speed manual or automatic transmission, the truck offers smooth shifting and optimized fuel efficiency. The heavy-duty rear axle with a robust reduction ratio (e.g., 5.263, 5.921) ensures maximum traction on rough terrain.
Payload Capacity: With a total vehicle weight of 31-32 tons and a payload capacity of up to 18.97 tons, it handles large volumes of materials such as sand, gravel, and construction waste with ease.

JIEFANG JH6 8X4 DUMP TRUCK

Reinforced Chassis: The high-strength steel frame (300×80×7 mm) and heavy-duty suspension system (multi-leaf springs or optional air suspension) provide exceptional resistance to twisting and impact, extending service life.
Rugged Tipper Body: Available in lengths from 5.6m to 6.8m, the tipper body is made of wear-resistant steel. It features a reliable hydraulic lifting system for fast and stable unloading, with an optional automatic tarpaulin for environmental protection.
Corrosion Protection: Key components are treated with anti-corrosion coating, ensuring durability in harsh environments like coastal regions or chemical handling sites.

Designed Around the Driver

From the moment you step inside, the FAW Truck's cabin reflects a commitment to driver-first design.

FAW JH6 8×4 Dump Truck is a cost-effective investment with low operational costs.

Its fuel-efficient engine reduces fuel consumption, while the durable components and easy-to-service design minimize maintenance expenses and downtime. The FAW JH6 6×4 Dump Truck also comes with FAW’s global warranty and a network of service centers, ensuring you get reliable support wherever your projects take you.

Key Features

Drivability

Fuel Efficiency

Safety

Productivity

Uptime
