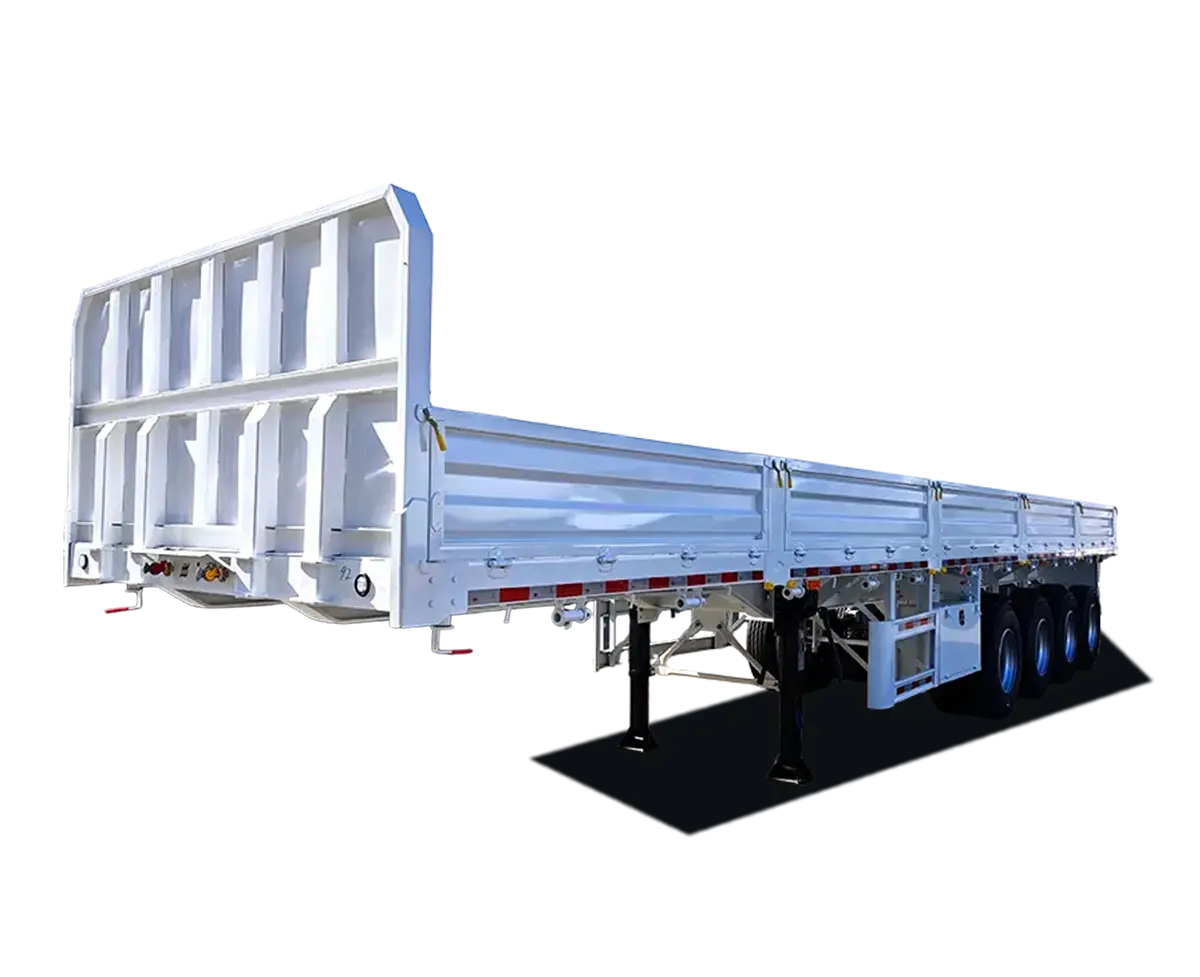

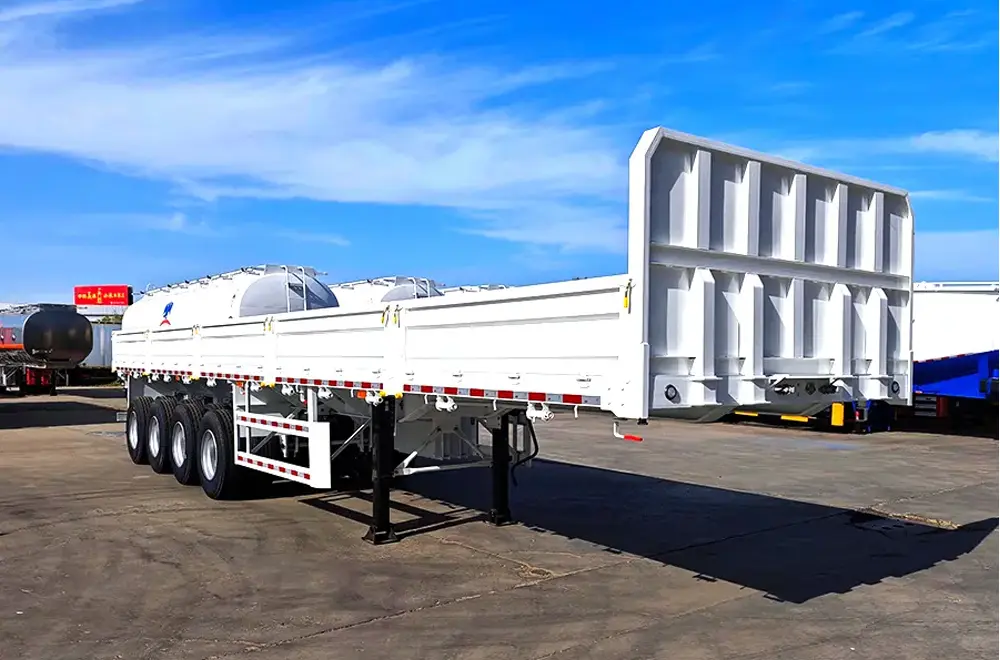

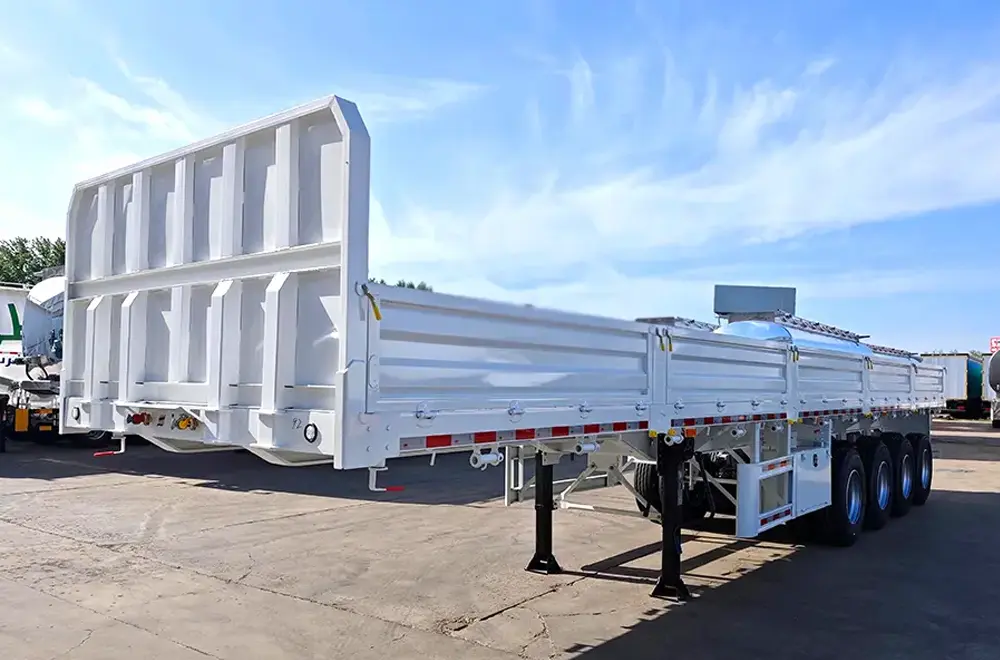

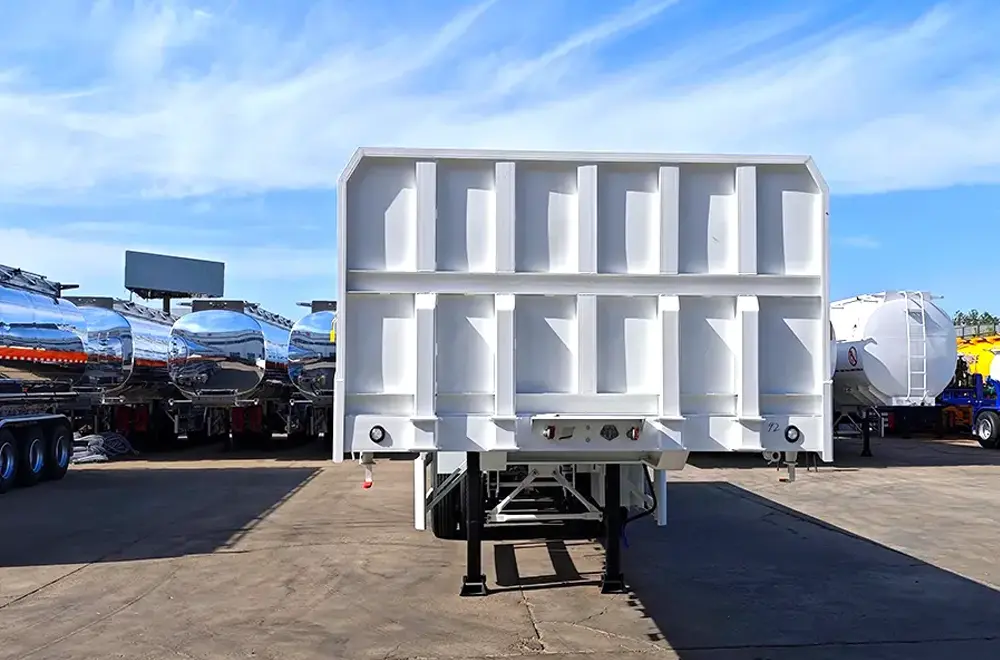

Faw Jiefang Side Wall Semi Trailer
TECHNICAL DATA
| FAW JIEFANG SIDE WALL SEMI TRAILER | |
|
Loading Capacity |
30T |
|
Dimension(L*W*H) |
9900*2600*3060 (mm) |
|
Box Size(L*W*H)） |
7500*2600*1600 (mm) (Customized Sizes or Designed according to customers’ needs) |
|
Fence Structure |
900mm side wall + 100mm space + 440mm fence |
|
Turntable |
20T triple bead turntable |
|
Main beam |
420mm height, top plate 14mm thickness*140mm width, bottom plate 16mm thickness*140mm width, middle plate 6mm |
|
Platform |
4mm thickness pattern plate |
|
Axle |
BPW 13 T, 10 holes |
|
Suspension |
Three-axis German type suspension |
|
Leaf spring |
100(W)mm *12mm (Thickness)*12 layers, 6 sets |
|
Tires |
12.00R20,12pcs（Triangle brand TR691E pattern) |
|
Steel rim |
8.5-20,12 pcs |
|
ABS |
Optional |
|
Spare tire carrier |
1 set |
|
Toolbox |
1 set |
|
Brake system |
WABCO RE 6 relay valves; T30/30+T30 air chamber, 40L air tanks |
|
Electric system |
One unit of 24V 7-pin ISO standard socket; with brake light, turn light, reverse light, side light, reflector, fog light; one set of 6-pin standard cable |
|
Color |
Optional |
Core Specifications & Performance
Payload Capacity: Available in configurations with a payload capacity of 30-60 tons, making it suitable for heavy-duty long-haul or regional transportation.
Axle & Suspension: Equipped with 2-4 axles from trusted brands like Fuwa or BPW, paired with leaf spring suspension or air suspension systems. These ensure stable load distribution and smooth rides even on rough terrain.
Tire & Rim: Fitted with 12R22.5, 13R22.5, or 1200R20 tires (12-20 pieces depending on axle configuration) and reinforced rims to handle extreme weight and maintain durability.
Design & Features
Drop Side Fence Structure: Features detachable or foldable side walls (600-1500 mm in height) and a front gate, allowing easy loading and unloading from multiple sides. The fence design also provides secure containment for irregularly shaped cargo.
Reinforced Chassis: The main frame uses thickened Q345B steel beams to resist bending and torsion, extending service life in long-term use. The floor is made of checkered steel plate for anti-slip performance, with optional thickness of 3-8 mm.
Customization Options: Supports modifications such as twist locks for container transport, adjustable side rails, or specialized coatings for corrosion resistance in coastal or harsh environments. Optional toolboxes and lifting systems are also available.
