| Truck Name | FAW Mini Dump Truck | |
| Load Parameters | ||
| G. V. W. (kg) | 11835 | |
| Curb weight, toal (kg) | 6640 | |
| Loading capacity (kg) | 10000 | |
| Drive form | 4X2 | |
| Max. speed KM/h | 70KM/h | |
| Front axle capacity(KG) | 3245 | |
| Rear axle capacity (KG) | 8590 | |
| Leaf spring | 12/14+9,13/10+9 | |
| Appr/Dep.:(°) | 28/32 | |
| Dimension Parameters | ||
| Dimension(mm) (L*W*H) | 7100X2490X3000 | |
| Cargo box | Dimension(L*W*H) | 4000X2260X1100 |
| Wheel base(mm) | 4090 | |
| Wheel trace(mm) | 1914, 1847 | |
| Configuration Parameters | ||
| Cabin | Cabin type | Single |
| Seating capacity | 2,3 | |
| Engine | Brand&Model | CA6110/125Z1A2 |
| Max. horsepower | 170HP | |
| Max. power | 125KW | |
| Max.output torque | 650N·m | |
| Displacement(ml) | 6618 | |
| Combustion types | Diesel | |
| Gearbox | Brand&Model | CA6TB085M |
| Fuel tank capacity | 200L | |
| Emission standard | EURO 3 | |
The Faw Mini Dump Truck series covers multiple configuration options to fit different working scenarios. Available in 4×2 drive layouts with optional left-hand or right-hand steering, these mini tippers can adapt to road rules in different countries and regions, from Southeast Asian construction sites to African municipal projects. With payload capacities ranging from 1 ton to 10 tons, the Faw Mini Dump Truck delivers flexible hauling performance: 2-5 ton models are perfect for narrow urban construction sites and farm material transportation, while 6-10 ton versions meet the demand for medium-sized earthwork and gravel hauling.
All models of Faw Mini Dump Truck use energy-efficient diesel engines that meet different emission standards, including Euro 2, Euro 3, and other customized requirements. Engine horsepower ranges from 110HP to 250HP, providing enough torque for rough unpaved roads while keeping fuel consumption at a competitive level. The hydraulic tipping system—available in front lifting, middle lifting, and bidirectional dumping styles—enables fast and stable unloading, improving work efficiency significantly. The cargo bucket of the Faw Mini Dump Truck also supports customized thickness and capacity: standard 8mm floor and 6mm side panels guarantee long-term wear resistance, with capacity options from 1cbm to 10cbm to fit different material hauling needs.
As a globally recognized commercial vehicle brand, FAW strictly controls the production quality of every Faw Mini Dump Truck. All products pass ISO, CCC, ECE, and DOT certifications, ensuring stable performance even in harsh working environments. The whole vehicle comes with a 1-year warranty, and for global buyers, oversea maintenance and technical training are available to solve after-sales worries.
Buyers can customize multiple details of their Faw Mini Dump Truck according to actual needs: from cabin type (flat roof or Tiger V cabin) to tire design (radial or tubeless tires), from vehicle color to cargo bucket size, FAW can meet personalized configuration requirements. With a monthly production capacity of thousands of units, the delivery cycle is guaranteed, and flexible payment terms (L/C, T/T) make international procurement more convenient.
The reason the FAW Mini Dump Truck dominates the light engineering market lies within its premium commercial vehicle specifications:

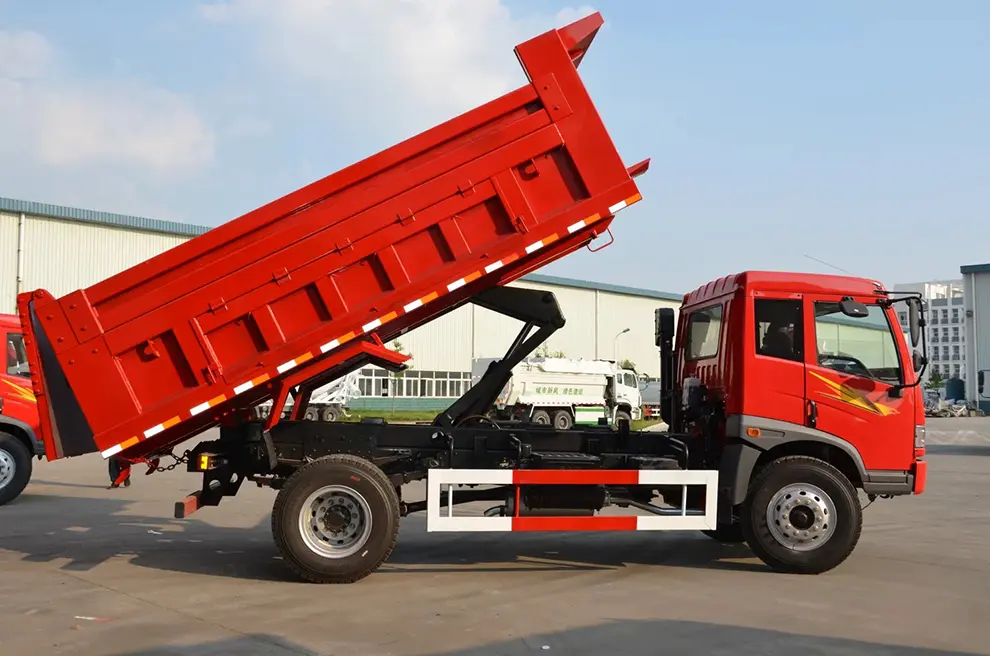

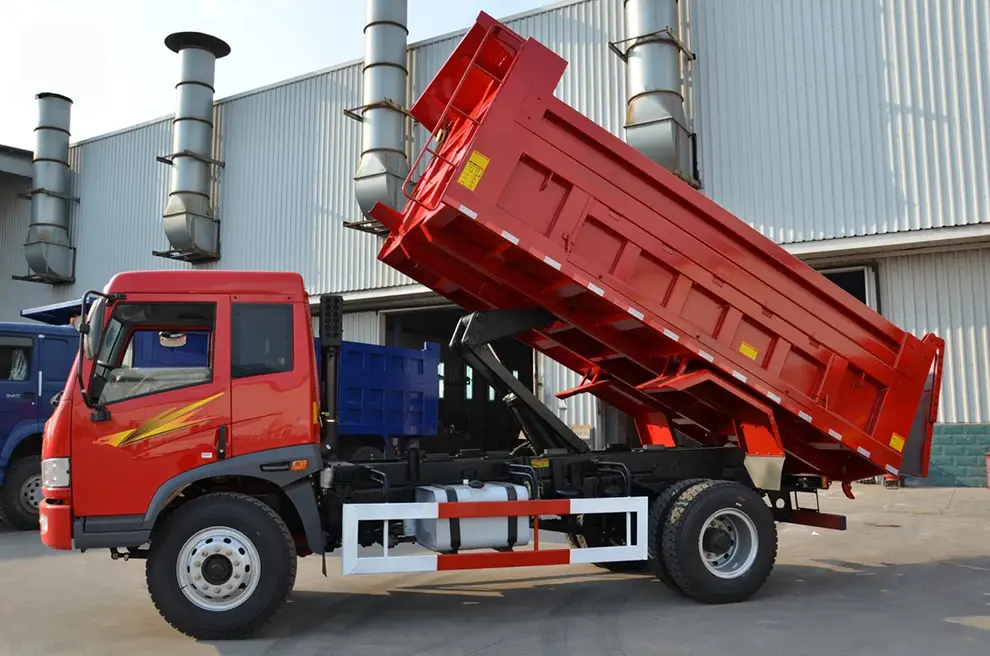

Robust Hydraulic Tipping System: Every FAW Mini Dump Truck is equipped with a middle-lifting hydraulic cylinder designed for smooth, rapid dumping cycles.

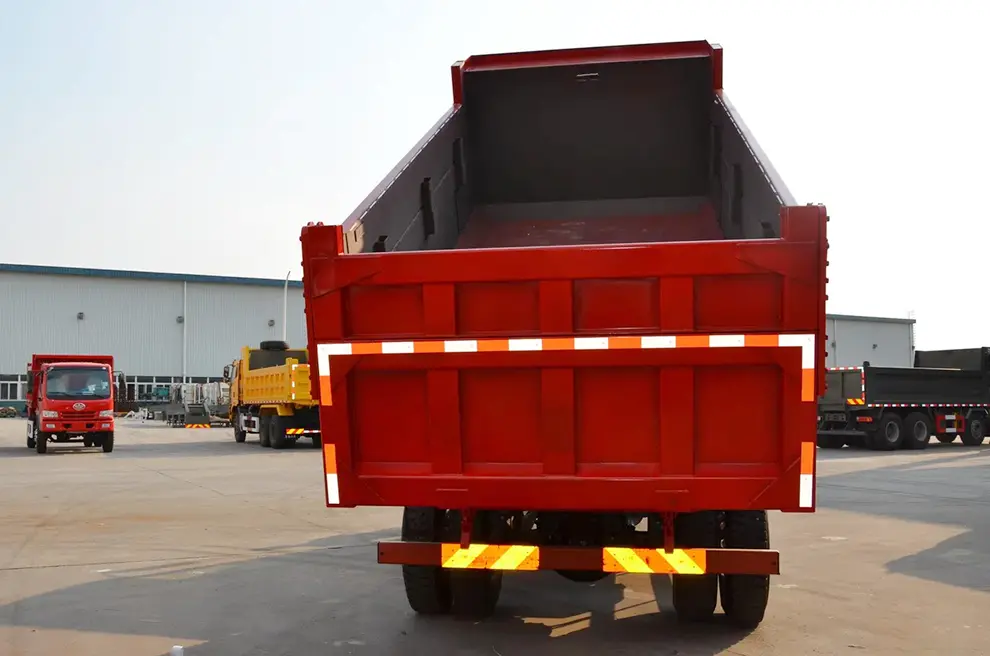

High-Strength Carbon Steel Body: The dump box of the FAW Mini Dump Truck features reinforced drop-sides constructed with premium Q345B steel to withstand abrasive stone, sand, and aggregate loads.
Turbocharged Engine Performance: Powered by a fuel-efficient FAWDE or Yuchai engine, the FAW Mini Dump Truck generates exceptional low-end torque for navigating muddy or steep job sites.
Compact 4×2 Drivetrain: The 4×2 drive layout allows the FAW Mini Dump Truck to easily maneuver through tight city streets, narrow alleys, and congested construction zones where larger tippers cannot fit.
