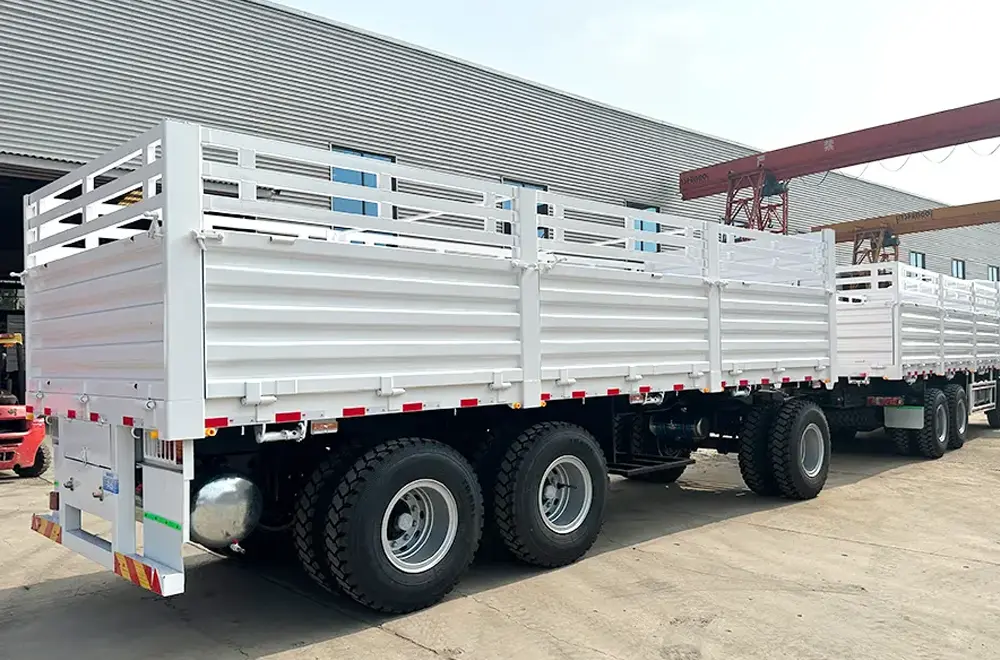

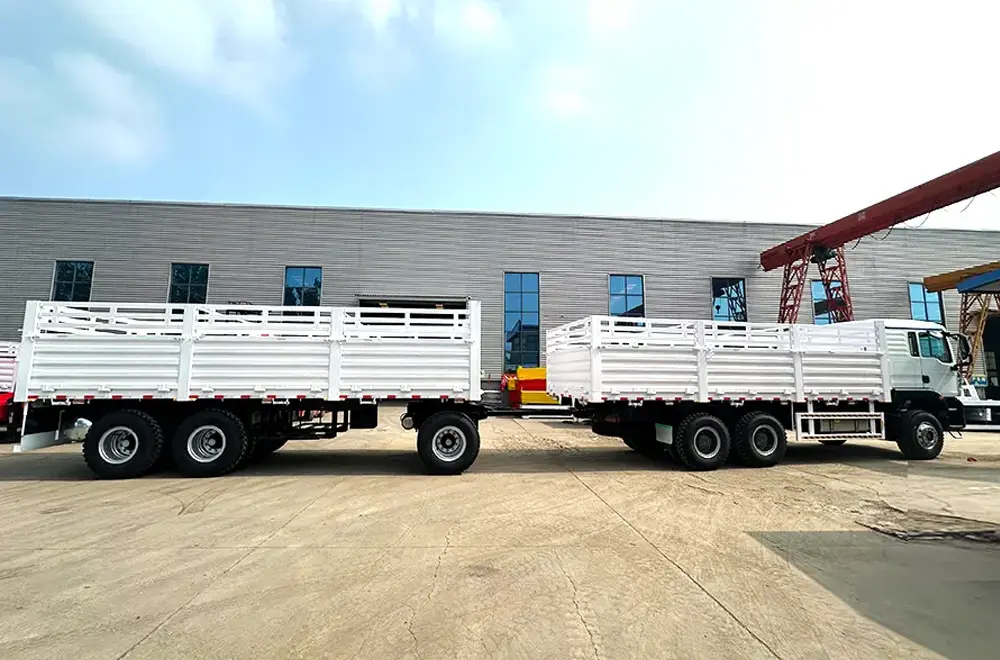

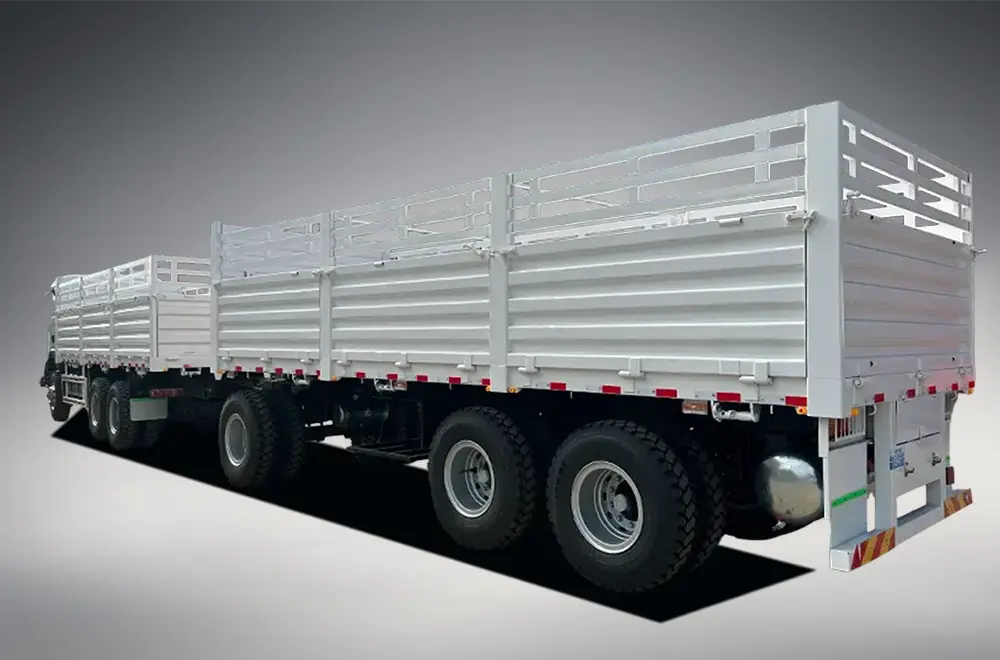

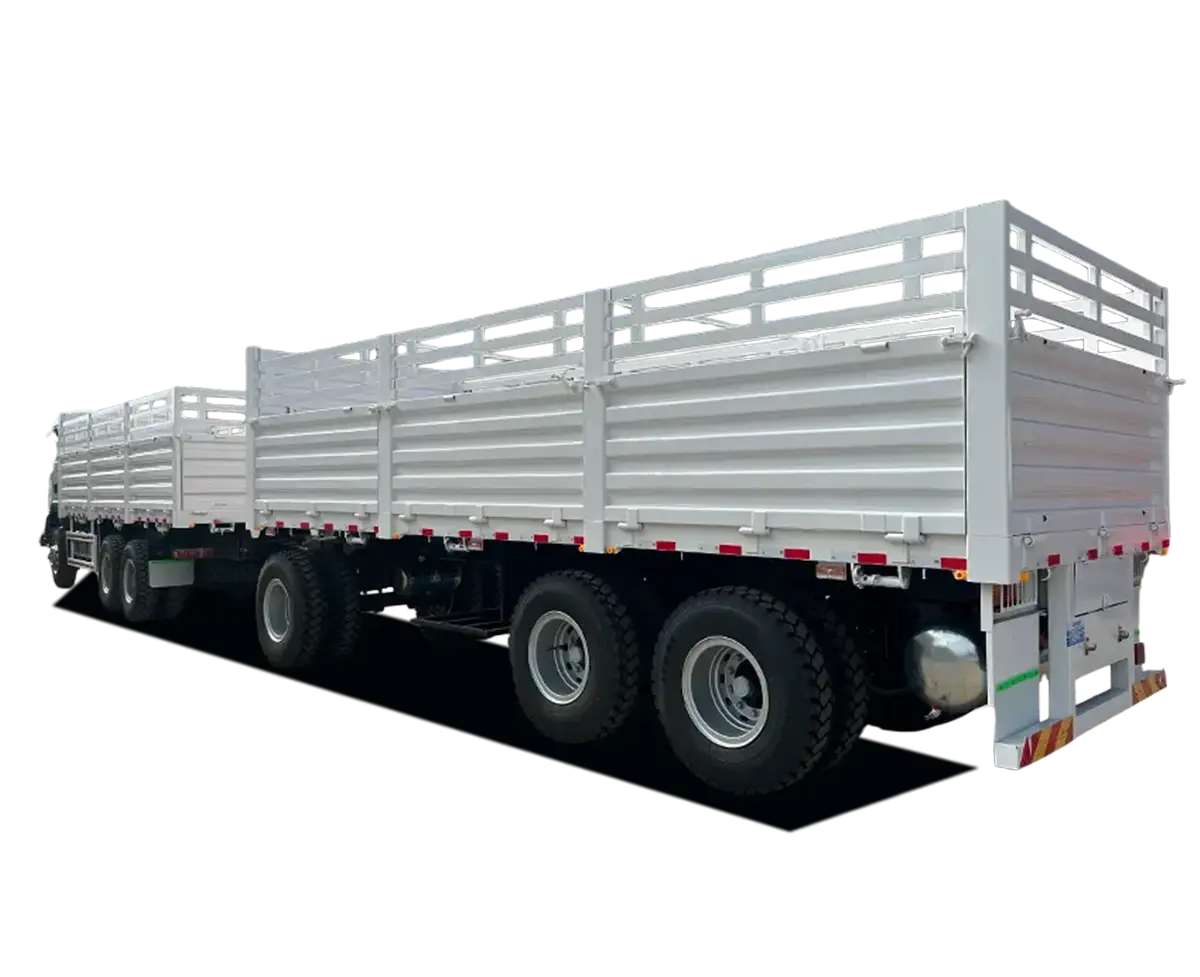

Faw Side Wall Fence Full Trailer
TECHNICAL DATA
|
FAW SIDE WALL FENCE FULL TRAILER |
|
|
oading Capacity |
20-50T |
|
Dimension(L*W*H) |
9900*2600*3060 (mm) |
|
Box Size(L*W*H)） |
7500*2600*1600 (mm) (Customized Sizes or Designed according to customers’ needs) |
|
Fence Structure |
900mm side wall + 100mm space + 440mm fence |
|
Turntable |
20T triple bead turntable |
|
Main beam |
420mm height, top plate 14mm thickness*140mm width, bottom plate 16mm thickness*140mm width, middle plate 6mm |
|
Platform |
4mm thickness pattern plate |
|
Axle |
BPW 13 T, 10 holes |
|
Suspension |
Three-axis German type suspension |
|
Leaf spring |
100(W)mm *12mm (Thickness)*12 layers, 6 sets |
|
Tires |
12.00R20,12pcs（Triangle brand TR691E pattern) |
|
Steel rim |
8.5-20,12 pcs |
|
ABS |
Optional |
|
Spare tire carrier |
1 set |
|
Toolbox |
1 set |
|
Brake system |
WABCO RE 6 relay valves; T30/30+T30 air chamber, 40L air tanks |
|
Electric system |
One unit of 24V 7-pin ISO standard socket; with brake light, turn light, reverse light, side light, reflector, fog light; one set of 6-pin standard cable |
|
Color |
Optional |
Core Specifications & Performance
- Payload Capacity: Available in configurations with a payload capacity of 30-40 tons, making it suitable for heavy-duty long-haul or regional transportation.
- Axle & Suspension: Typically equipped with 2-3 axles (Fuwa/BPW/L1 brand axles) paired with a mechanical suspension system for stable load distribution. Some models offer optional air suspension for enhanced ride comfort and reduced cargo damage.
- Tire & Rim: Fitted with 12R22.5 tires (6-12 pieces depending on axle configuration) and sturdy 9.0-22.5 rims to handle heavy loads and rough road conditions.
Design & Features
- Side Wall Fence Structure: Features detachable or foldable side walls (600-800 mm in height) and a front gate, allowing easy loading and unloading from multiple sides. The fence design also provides secure containment for irregularly shaped cargo.
- Reinforced Chassis: Constructed with high-strength steel, the chassis offers exceptional resistance to bending and torsion, ensuring durability in long-term use. The floor is made of checkered steel plate for anti-slip performance.
- Customization Options: Supports customized modifications such as twist locks for container transport, different side wall heights, or additional tie-down points to meet specific cargo requirements.
