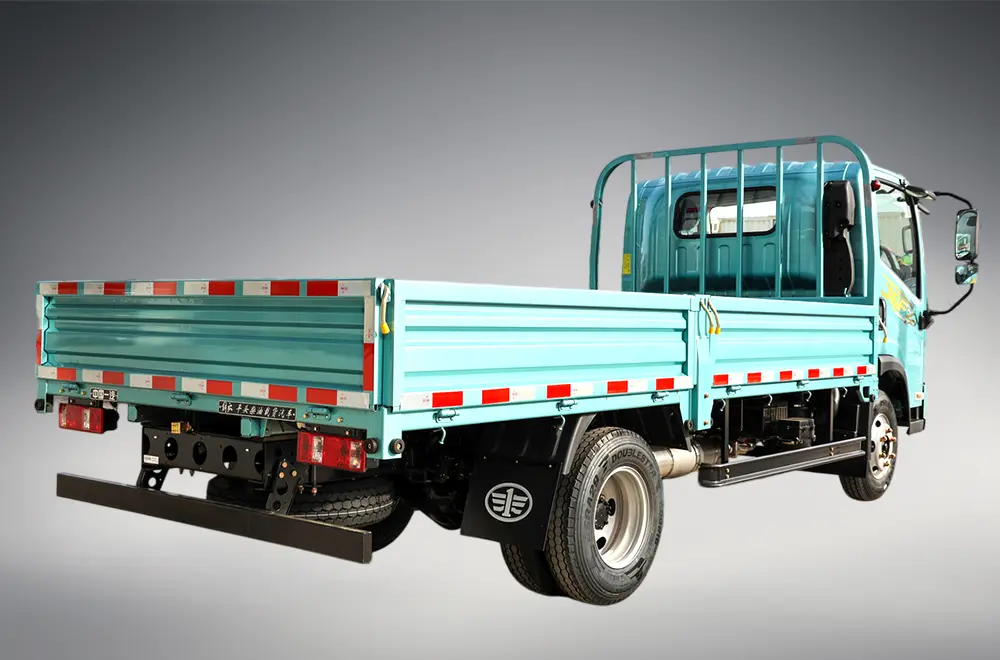

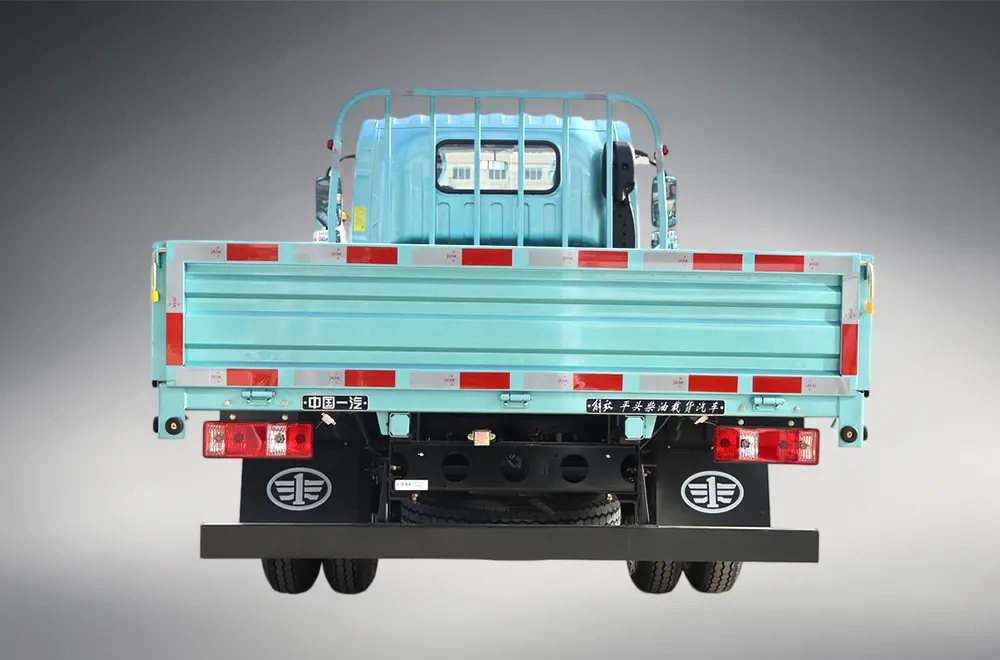

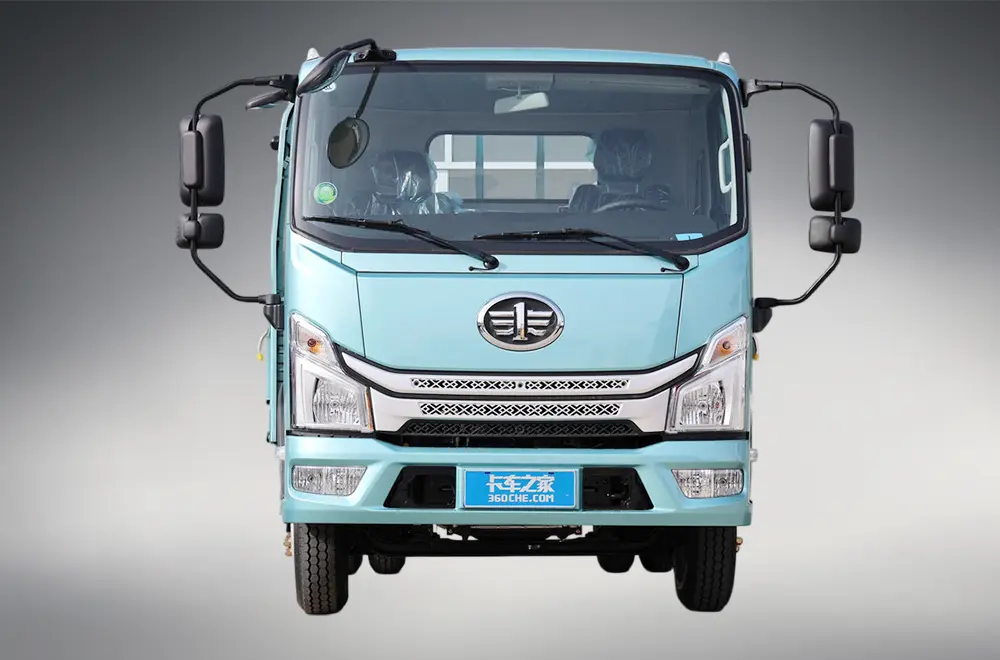

| FAW J6F SINGLE-ROW FLATBED LIGHT TRUCK | |
| Model Number: | CA3110P40K59L2E6A84 |
| Drive Type: | 4X2 |
| Wheelbase: | 4200mm |
| Engine: | Q25A-150E60 |
| Transmission: | WLY5G32B |
| Rear Axle Ratio: | 4.875 |
| Vehicle Length: | 5.985m |
| Vehicle Width: | 2.2 m |
| Vehicle Height: | 2.42 m |
| Front Track: | 1580mm |
| Rear Track: | 1590mm |
| Current Weight: | 2.56 tons |
| Rated Payload: | 1.74 tons |
| Gross Vehicle Weight: | 4.495 tons |
| Tongue Class: | light truck |
| Approach Angle: | 20 degrees Celsius |
| Departure Angle: | 13 degrees Celsius |
| Country of Origin: | Qingdao |
Efficient Engine Options: Powered by Euro VI-compliant diesel engines, including the Xichai CA4DB1 (140-160 HP) and Yuchai YCY24 (165 HP), delivering high torque (up to 500 N·m) for strong low-end pulling power. These engines balance performance with fuel efficiency, consuming just 7-9 L/100km.
Smooth Transmission: Paired with a 5-speed or 6-speed manual transmission, the truck offers precise shifting and optimal gear ratios for both stop-and-go city traffic and highway cruising.
Payload Capacity: With a total vehicle weight of 4.2-7.3 tons, it supports a payload of 1-4 tons, making it ideal for transporting pallets, construction materials, agricultural goods, or bulky items.
Urban-Friendly Dimensions: Compact size (5,995 mm in length, 2,150 mm in width) and a tight turning radius of 5.5 meters allow easy navigation through narrow streets, alleys, and parking lots.
Single-Row Cab: The compact single-row cab maximizes cargo space while ensuring driver comfort. It features adjustable seats, power windows, and a clear instrument cluster for intuitive operation.
Durable Flatbed: The standard flatbed measures 4.2-5.2 meters in length and 2.1-2.3 meters in width, with reinforced steel construction to withstand heavy loads. Optional side rails and stake pockets provide secure tie-down points for cargo.
Basic Safety Features: Equipped with ABS anti-lock braking system, EBD electronic brake force distribution, and a driver-side airbag for enhanced protection. Rearview mirrors and optional backup cameras improve visibility in tight spaces.
Robust Chassis: The high-strength steel frame and leaf-spring suspension system offer exceptional resistance to bending and torsion, ensuring longevity in daily operations. Key components are treated with anti-corrosion coating to withstand harsh environments.
Global Compliance: Meets international standards such as ISO 9001, ECE, and GCC, ensuring quality and reliability in export markets across Southeast Asia, Africa, and the Middle East.
