What is the maximum payload capacity of the FAW 6x4 dump truck?

FAW 6×4 Dump Truck Maximum Payload – Technical Specifications

The maximum payload (also referred to as load capacity or rated load) of FAW 6×4 dump trucks varies by model series, configuration, and target market. Below is a summary of key models with their official specifications:

Important Technical Clarifications

1. Rated Payload vs. Design GVW – Understanding the Difference

There are two distinct measurements that define a dump truck’s load capacity:

⚠️ Critical Note: The “12-13 ton” rated payload is the legal limit for registered on-road operation. The “50-80 ton” design GVW reflects the vehicle’s physical structural capacity and applies to non-public road applications such as mine sites, large construction projects, and private land operation.

2. Towing / Hauling Capacity Reference

For JH6 series models, FAW provides an additional towing weight specification of ≤60,000 kg (60 tons) . This refers to the truck’s capability when used as a tractor or in combination with trailers.

Model-by-Model Specification Summary

J6P Series – Standard Heavy-Duty Dump Truck

• Application: On-highway and vocational (construction, mining transport)

• Emission Standards: Available in Euro II, Euro V, and China VI (Euro VI equivalent)

• Engine Options: 350 hp to 420 hp

• Rear Axle Rating: 2 × 16,000 kg (32,000 kg total rear axle capacity)

• Tire Specification: 12.00R20 (standard)

• Wheelbase Options: 3,800+1,350 mm / 4,050+1,350 mm / 4,300+1,350 mm



J5P Series – Heavy-Duty / Mining Focus

• Application: Extreme heavy-duty, mining, off-road

• GVW Range: 30 – 50 metric tons (66,000 – 110,000 lbs)

• Engine: Weichai WP10.340E32 – 340 hp

• Transmission: FAST 9JSD135T (9-speed manual)

• Rear Axle Ratio: 5.921

• Notable Feature: Lightest chassis weight (10,220 kg) among FAW 6×4 models, maximizing structural payload capacity

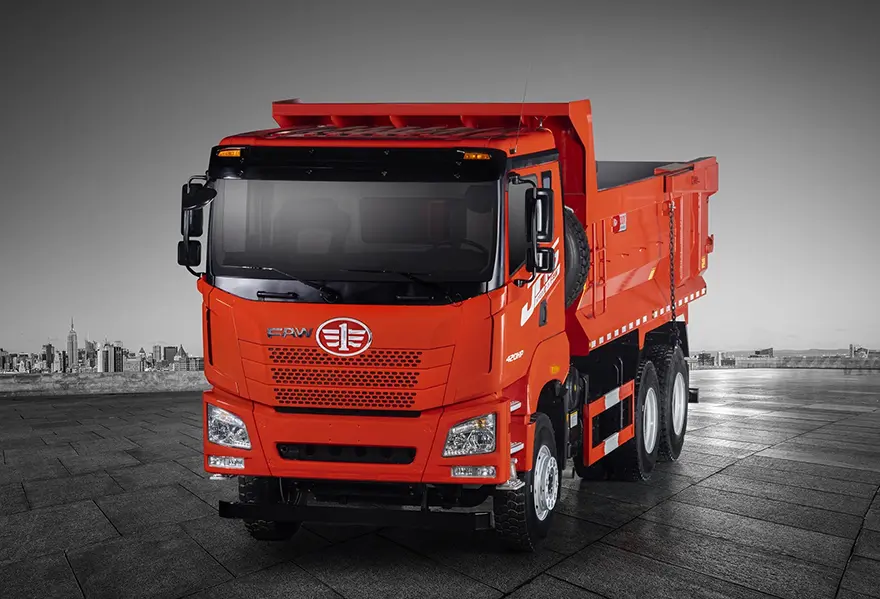

JH6 Series – Premium Heavy-Haul Model

• Application: Premium segment – muck transport, urban construction, sand/gravel, mining

• Design GVW: 60 – 80 metric tons (132,000 – 176,000 lbs)

• Key Feature: “Benz technology” 16-ton rear axle with upgraded steel casting process – 10% higher load capacity than standard axles

• Engine Options: 375 hp – 420 hp (Euro V compliant)

• Towing Capacity: ≤60,000 kg (60 tons)

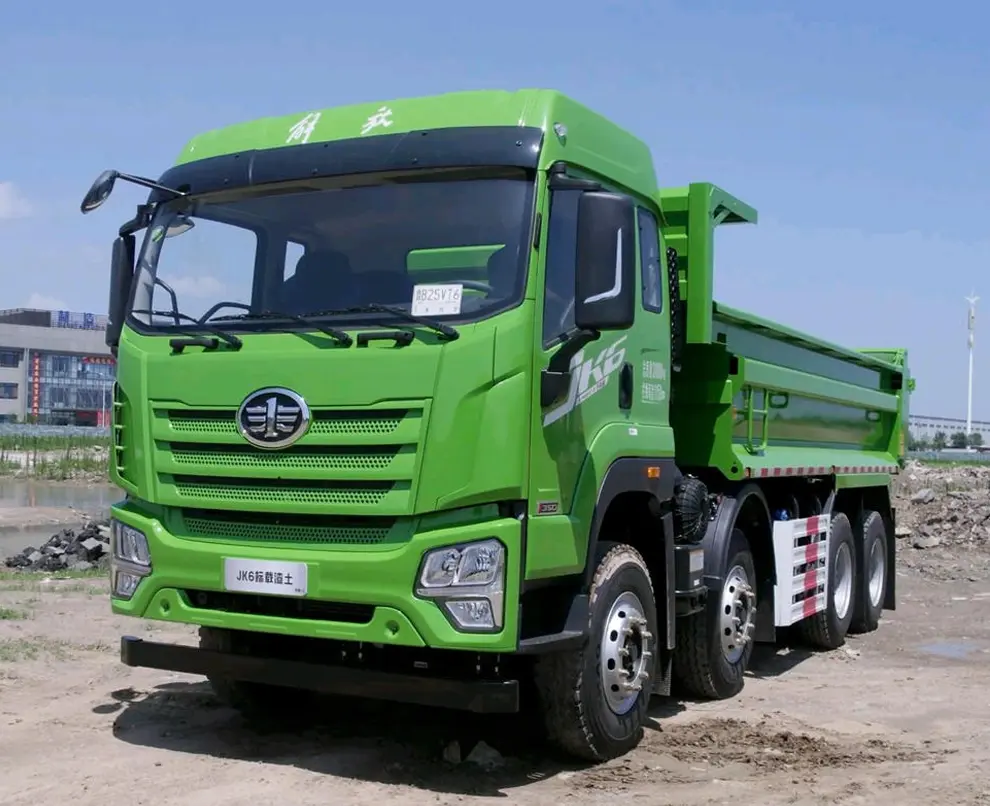

JK6 Series – Commercial High-Payload Model

• Application: General commercial heavy transport

• Rated Payload: 20,000 kg (44,092 lbs)

• Engine: 260 hp configuration



How to Obtain Accurate Payload Data for Your Specific Application

For precise payload specifications:

1. Check the Vehicle Rating Plate – Located on the driver’s door frame, listing GVWR and axle ratings

2. Consult Local FAW Dealer – Export specifications may be adjusted for local market regulations

3. Clarify Your Operating Environment – Determine whether you require:

   • Legal on-road rated payload (for highway registration/compliance)

   • Physical structural capacity (for off-road/mining applications)

4. Request Factory Specification Sheet – For specific model and configuration
