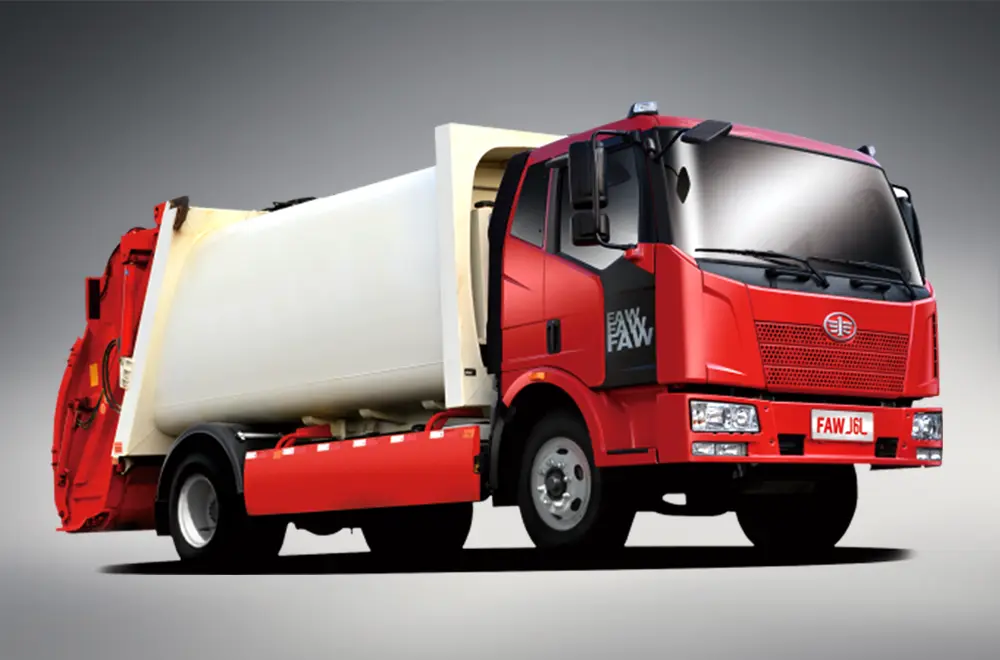

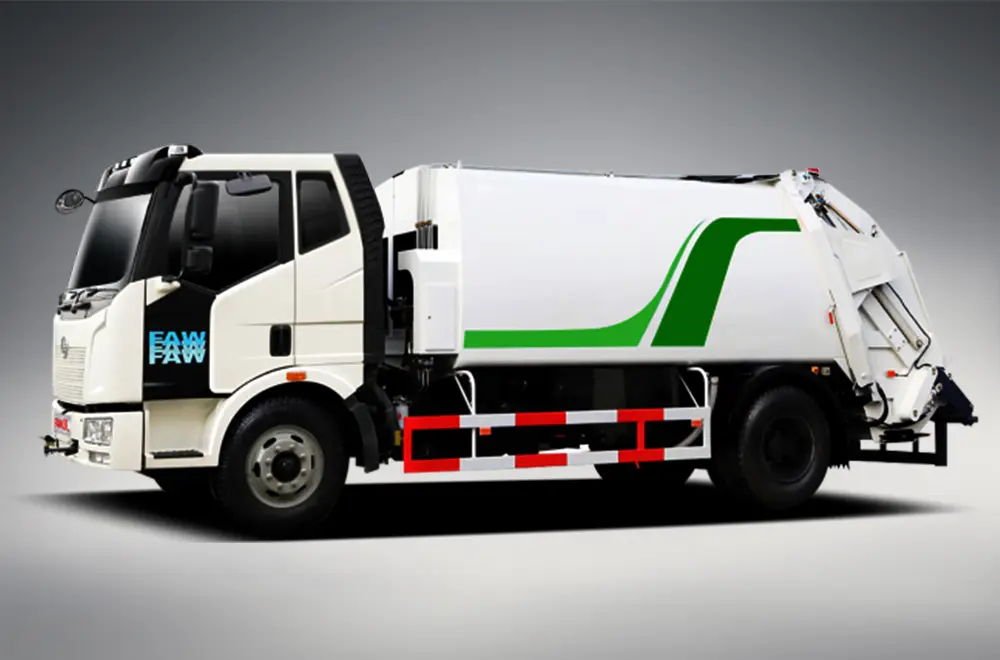

| FAW J6L 4X2 GARBAGE TRUCK | |||
| Gross Vehicle Weight (kg) | 18,000 kg | Rated load capacity (kg) | 7895, 7960 kg |
| Curb Weight (kg) | 9,910 kg | Vehicle dimensions (mm) | 8800 × 2485 × 3020 mm |
| Number of Axles | 2 | Number of tires | 6 |
| Wheelbase (mm) | 4,500, 4,700 mm | Tire model | 9.315/80R22.5 18-ply, 295/80R22.5 18-ply tubeless |
| Maximum Speed (km/h) | 89 | Fuel type | Diesel |
| Engine: | Xichai CA6DL2-35E3F, Dachai CA6DK1-28E | Transmission: | Transmission CA10TA160F, Shaanxi Gear 8JS118TC-B |
| Emission Standards | Euro 2 (E2), Euro 5 (E5) | Engine horsepower | 220 PS, 280 PS, 320 PS |
| Chassis Configuration: | The Jiefang garbage truck features a dedicated chassis, a J6-row semi-flat cab, a 378 cast rear axle, and optional tires. It has a wheelbase of 4500mm and 4700mm, and comes with a factory power take-off, air conditioning, power steering, ABS, air brakes, and a Beidou-compatible onboard system. Features include power windows, manual rearview mirrors, and a mechanically damped driver’s seat. | ||
| Body Configuration: | The curved box has a 12-cubic-meter tank capacity (optionally 14 cubic meters) and is constructed of T420 special high-strength steel. The box is 4″ thick at the sides and 5″ thick at the bottom. The sides are integrally curved with no welds at the top or bottom. It also features a Zhongmei multi-way valve, a Changyuan hydraulic pump, a photoelectric switch, and a two-way hydraulic lock for the loader’s lift cylinder. It also features an imported Siemens PLC electronic control system with one-touch and manual operation, and an electronic control panel. The U-shaped hopper of the loader is constructed from 5mm thick steel plate, with a rear tilting rack for mounting a national standard 240-liter plastic bucket. It is equipped with a nighttime light, and a sealing strip is installed between the trash bin and the loader. It features a bidirectional compression mechanism, with the push plate automatically retracting during operation to ensure uniform trash density within the bin. The loader also has two sewage tanks. The rear loader features a diversion chute and a water collection trough, with wastewater entering the lower sewage tank of the loader (welded integrally to the loader). The compression tank has a concave water channel that directs wastewater to a sewage tank on the side of the chassis frame. | ||
| Optional Features: | 1. Bucket-mounted tilting mechanism. 2. Fully floor-standing trash hopper. 3. Dustpan-type trash hopper. 4. Swing-arm trash hopper. | ||
?Engine: Equipped with a reliable diesel engine, typically delivering 180-220HP. This 4-cylinder or 6-cylinder, in-line, turbocharged powerplant provides ample torque for stop-and-go urban collection routes.
?Transmission: Paired with a smooth-shifting manual transmission, offering 6 forward gears and 1 reverse gear for precise control during frequent stops and starts in residential areas.
?Drivetrain: Features a 4×2 drive configuration, optimized for urban maneuverability with excellent turning radius and easy navigation through narrow city streets and alleys.
?Compactor Body: Available with rear-loader compactor body configurations, featuring a hydraulic compaction system that compresses waste to maximize load capacity. Typical body volumes range from 8 to 12 cubic meters.
?Loading Mechanism: Equipped with a rear-loading hopper and automated lifting mechanism compatible with standard waste bins (120L, 240L, and 660L), enabling efficient curbside collection.
?Hydraulic System: Premium hydraulic components power the compaction cycle, tailgate operation, and bin lifting mechanism, ensuring reliable performance during intensive daily operations.
Operational Efficiency: Fast loading/unloading speed with a compaction ratio of up to 3:1, reducing the number of trips and lowering fuel consumption.
Environmental Friendliness: Closed waste storage and deodorization systems meet strict environmental protection standards, minimizing odor and leakage during transport.
Durability: Reinforced chassis and corrosion-resistant tank materials ensure long service life even under frequent daily operations.
Customization: Supports tailored configurations such as waste sorting compartments, refrigerated tanks for kitchen waste, and intelligent monitoring systems for fleet management.
