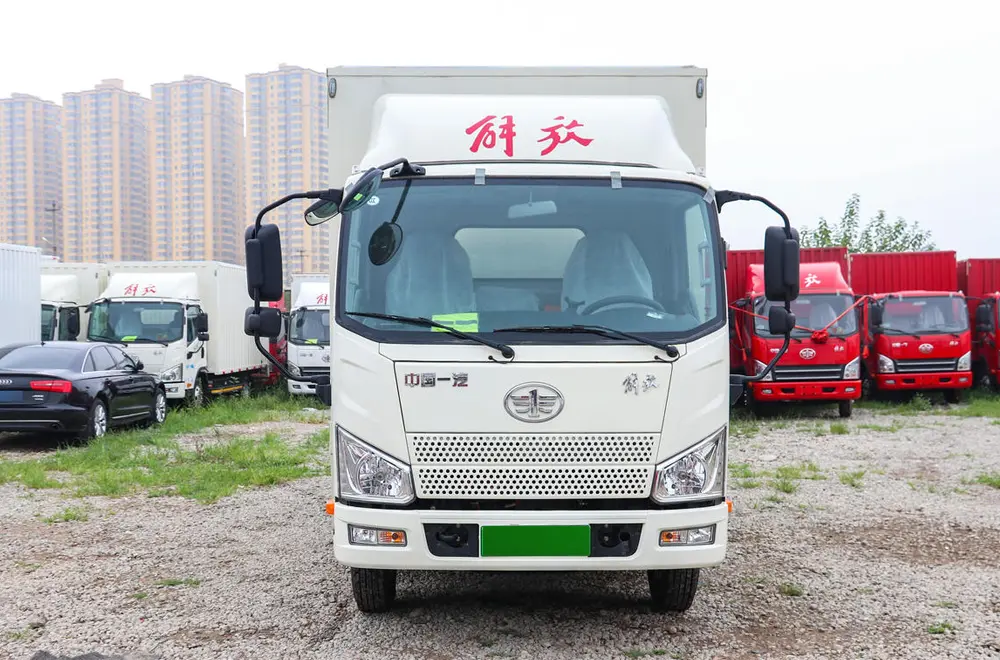

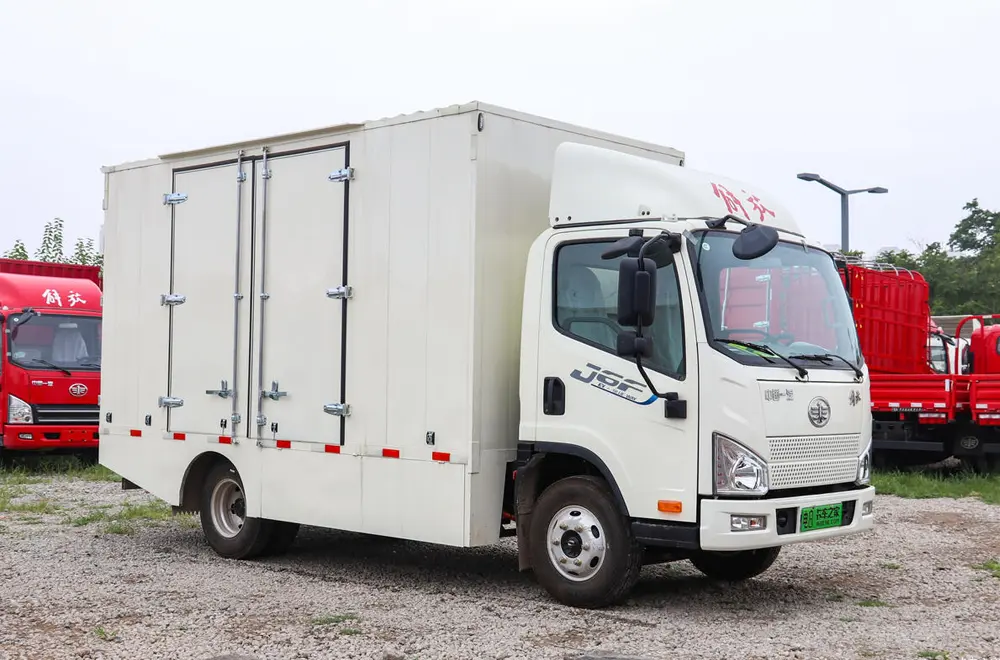

Faw J6f Pure Electric Light-Duty Van Truck
TECHNICAL DATA
| FAW J6F PURE ELECTRIC LIGHT-DUTY VAN TRUCK | |
| Model: | CA5044XXYP40L2BEVA84 |
| Type: | Box Truck |
| Drive Configuration: | 4×2 |
| Wheelbase: | 3300 mm |
| Cargo Box Length Class: | 4.2 m |
| Vehicle Length: | 5.995 m |
| Vehicle Width: | 2.2 m |
| Vehicle Height: | 3.21 m |
| Gross Vehicle Weight (GVW): | 4.495 t |
| Rated Payload: | 1.23 t |
| Curb Weight: | 3.07 t |
| Top Speed: | 90 km/h |
| Tonnage Class: | Light-duty truck |
| Place of Manufacture: | Qingdao, Shandong |
| Energy Type: | Battery Electric |
| Motor 1 Brand: | GreenControl (LKM) |
| Motor 1 Model: | TZ230XS-LKM0382 |
| Motor Type: | Permanent Magnet Synchronous Motor |
| Fuel Type: | Battery Electric |
| Peak Power: | 120 kW |
| Total Peak Torque: | 380 N·m |
| Battery Brand: | CATL |
| Battery Type: | Lithium Iron Phosphate (LFP) Battery |
| Battery Capacity: | 81.1 kWh |
| Cargo Box Type: | Box-type |
| Cargo Box Length: | 4.16 m |
| Cargo Box Width: | 2.1 m |
| Cargo Box Height: | 2.15 m |
It is fitted with a high-energy-density lithium iron phosphate battery pack, which supports both DC fast charging and AC slow charging. The NEDC or CLTC cruising range on a full charge can fully cover the daily operating mileage of most urban distribution routes, reducing the trouble of frequent charging.
The permanent magnet synchronous motor provides stable and quiet power output. Compared with traditional fuel-powered light trucks, it has almost no tailpipe emissions, lower operating noise, and significantly lower energy consumption costs per kilometer, helping logistics companies and individual drivers reduce operating costs.
Its load capacity and axle design keep pace with conventional fuel light trucks of the same level, balancing environmental protection needs with practical cargo-carrying requirements.
Cargo Body & Application Scenarios

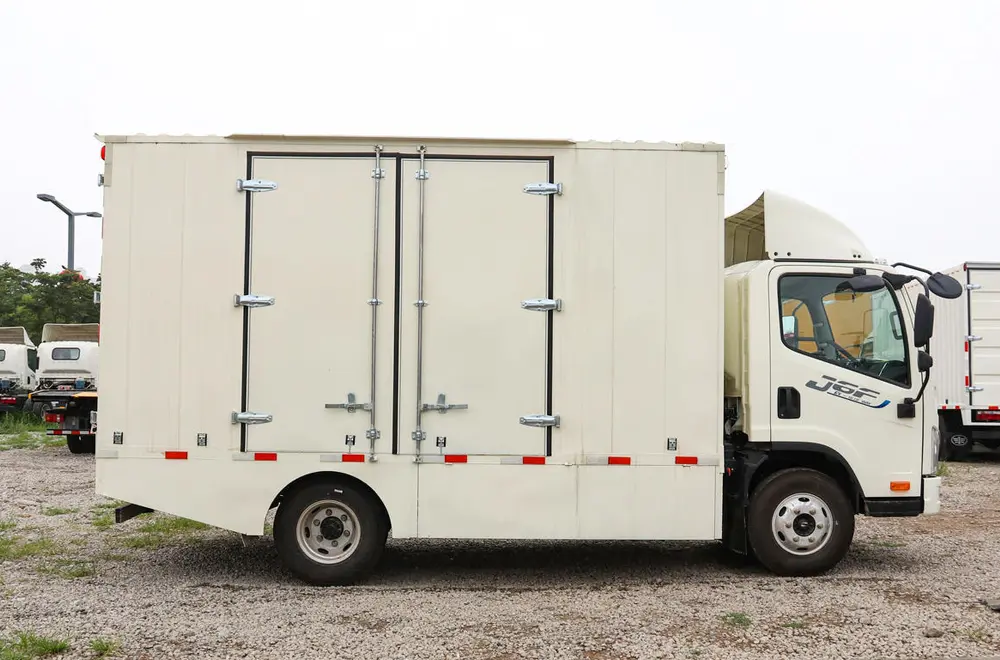

The integrated closed van cargo body can protect cargo from wind, rain and direct sunlight, which is especially suitable for the transportation of express parcels, fresh food, electronic products, daily groceries and other goods that need protection from the external environment.
The vehicle’s compact size meets urban traffic access restrictions, and as a pure electric new energy commercial vehicle, it can easily obtain green truck passes in most Chinese cities, allowing 24-hour unobstructed access to core urban areas even during traffic restriction periods.
The cab adopts a ergonomic design, with adjustable seats, clear instrument layout and good driving vision, which can effectively reduce driver fatigue during long-distance repeated distribution work.
