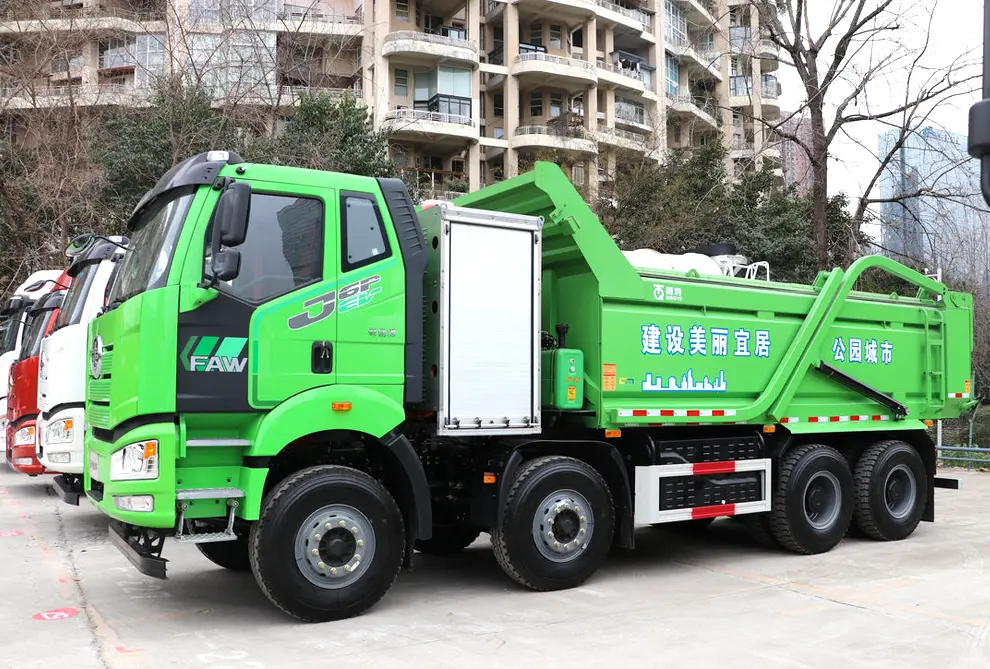

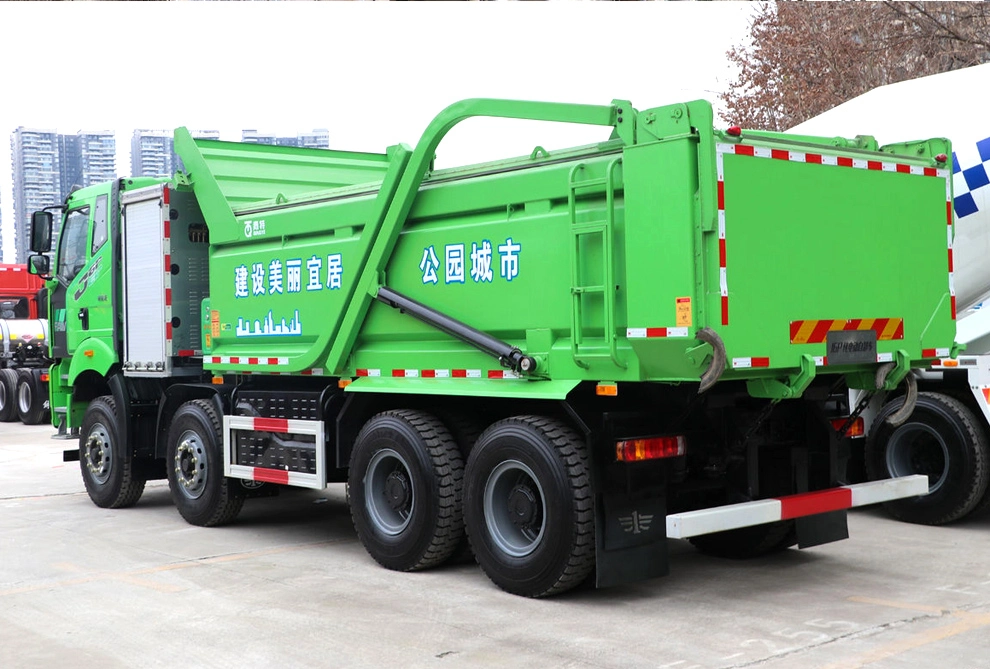

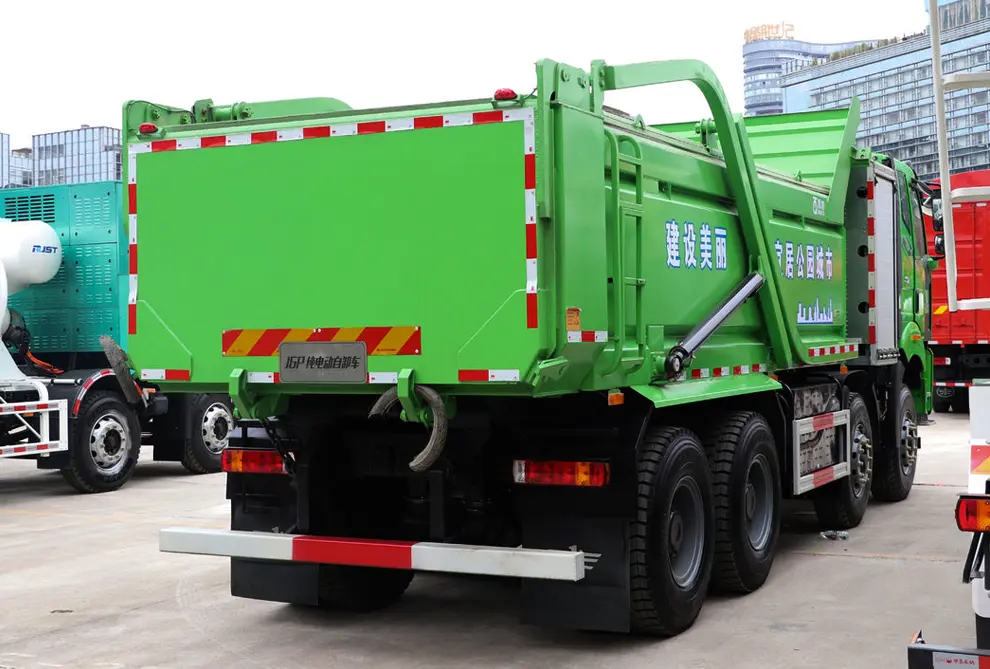

| FAW J6P ELECTRIC DUMP TRUCK | |
| Model Number: | CA3310P66N142L4T4BEV |
| Drive Type: | 8X4 |
| Wheelbase: | 1950+3100+1350mm |
| Vehicle Length: | 9.45 meters |
| Vehicle Width: | 2.55 meters |
| Vehicle Height: | 3.4 meters |
| Gross Vehicle Weight: | 31 tons |
| Rated Payload: | 11.205 tons |
| Vehicle Weight: | 19.6 tons |
| Maximum Speed: | 89 km/h |
| CLTC Range: | 340 km/h |
| Tongue Class: | Heavy truck |
| Country of Origin: | Changchun, Qingdao, Chengdu |
| Energy Type: | Pure electric |
| Transmission Model: | CA12TAX230E |
| Number of Gears: | 12-speed |
| Shift Method: | AMT (Automated Manual Transmission) |
| Motor 1 Brand: | CRRC Times |
| Motor 1 Model: | TZ400XS035 |
| Motor Type: | Permanent magnet synchronous motor |
| Peak Power: | 360kW |
| Total Peak Torque: | 2500N·m |
| Battery Brand: | CATL |
| Battery Type: | Lithium iron phosphate battery |
| Battery Capacity: | 423kWh |
| Energy Density: | 160Wh/kg |
| Cargo container type: | Self-unloading |
| Cargo container length: | 5.8 meters |
| Cargo container width: | 2.3 meters |
| Cargo container height: | 1.5 meters |
| Front axle allowable load: | 6500/6500kgkg |
| Rear axle description: | R16T300W |
Electric Motor: Equipped with a high-torque permanent magnet synchronous electric motor, typically delivering up to 400kW (536HP) of power and maximum torque of 2500N·m. This direct-drive electric motor provides instant torque for heavy-load hauling and rough terrain operation, eliminating the need for complex transmission systems.
Battery System: Powered by a high-capacity lithium-ion phosphate battery pack with energy storage typically ranging from 282-350kWh. The battery system supports fast charging capability, allowing for 80% charge in just 1.5 hours using a high-power DC charger, ensuring minimal downtime during operation.
Range and Efficiency: Offers a working range of up to 200km on a single charge under typical operating conditions, with regenerative braking system that recovers energy during downhill driving and deceleration to extend range and improve overall efficiency.
Drivetrain: Features a robust 6×4 drive configuration with dual reinforced rear axles, providing excellent traction and load distribution. The electric powertrain delivers smooth and consistent power delivery across varied job site terrain, ensuring optimal performance in both urban and off-road environments.
Dump Body: Features a large-capacity dump body with internal dimensions typically around 5.6×2.3×1.5 meters, providing a loading volume of 20 cubic meters and a load capacity of 20-30 tons. The body is constructed from high-strength steel and features a front-lifting dumping design for quick and controlled unloading of materials.
Hydraulic System: Equipped with a premium electric hydraulic system for reliable dump operation, ensuring quick and efficient unloading of heavy materials such as gravel, sand, and construction debris. The electric hydraulic system offers precise control and reduced maintenance compared to traditional diesel-powered systems.
Chassis & Suspension: Built on a reinforced J6P heavy-duty chassis frame with a heavy-duty leaf spring suspension system, designed to withstand the rigors of constant loading, unloading, and off-road operation. The wheelbase is typically configured as 3900+1350mm for optimal load distribution.
Braking System: Advanced safety features including anti-lock braking systems (ABS), electronic stability control (ESC), and regenerative braking system ensure enhanced stability and safety during operation. The truck is also equipped with 12.00r20 radial tires with ECE, GCC, ISO, and DOT certifications for reliable performance on diverse road surfaces.
The FAW J6P 6X4 Dump Truck comes with customizable cargo box options to suit your specific industry needs. From the classic rectangular box for general construction to the reinforced U-shaped body for easy material discharge in mining, every FAW J6P 6X4 Dump Truck is built with high-wear-resistant steel. The hydraulic lifting system is globally recognized for its stability and fast cycle times, increasing your daily productivity.
