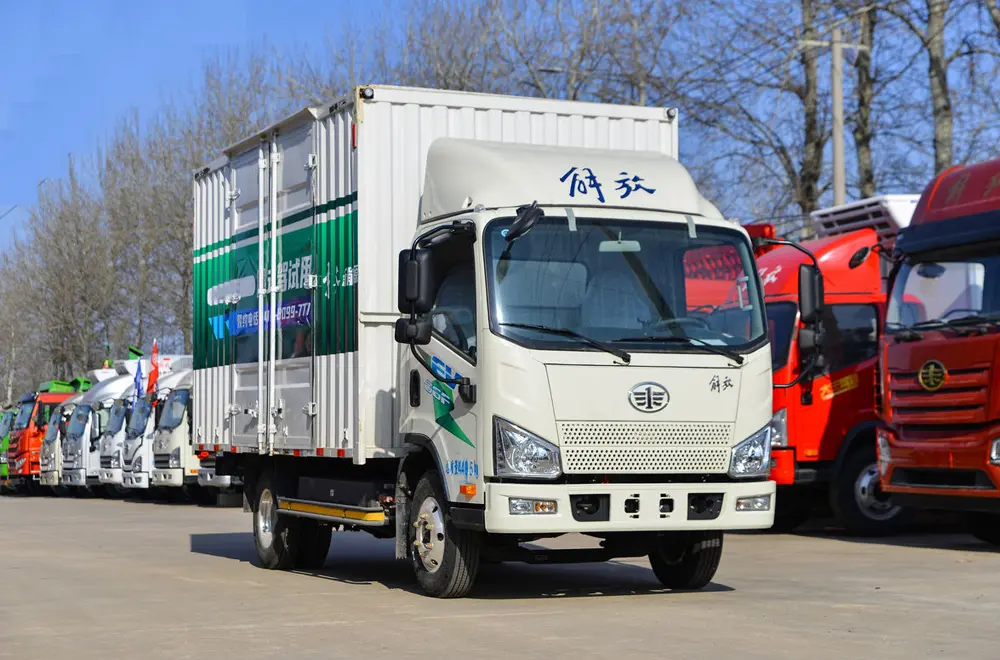

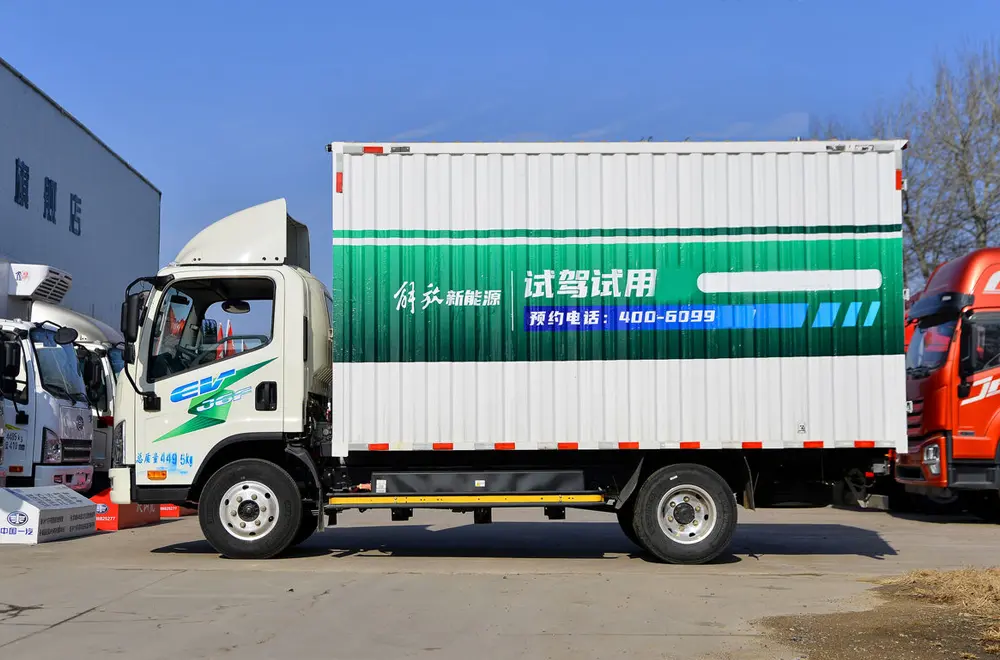

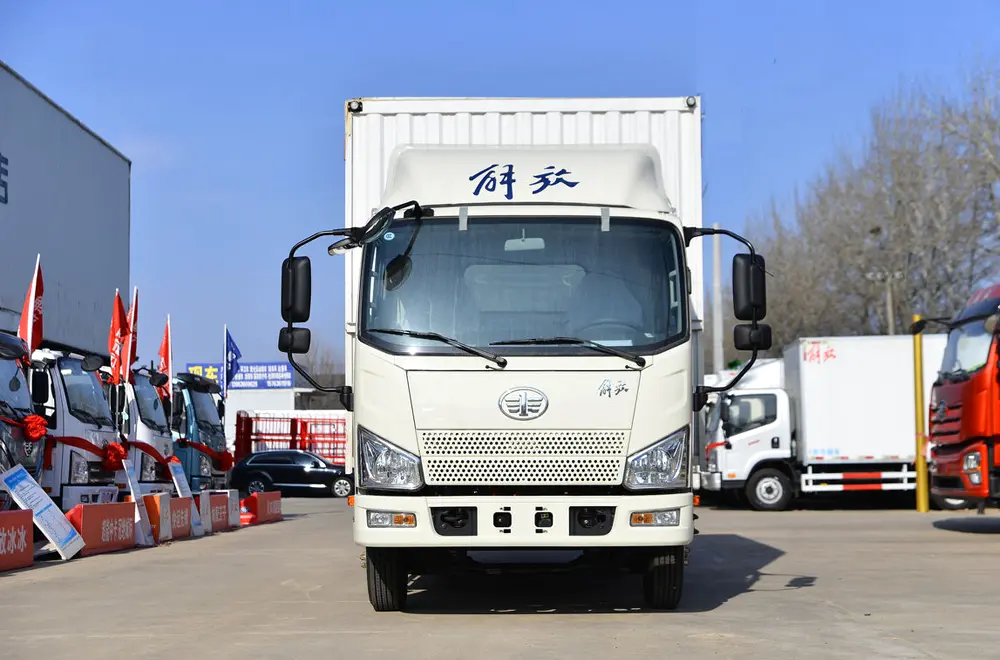

Jiefang J6F 4.5T Pure Electric Light Box Truck
TECHNICAL DATA
| JIEFANG J6F 4.5T PURE ELECTRIC LIGHT BOX TRUCK | |
| Model: | CA5042XXYP40L2BEVA84 |
| Type: | Box Truck |
| Drive Configuration: | 4×2 |
| Wheelbase: | 3300 mm |
| Cargo Box Length Class: | 4.2 m |
| Vehicle Length: | 5.995 m |
| Vehicle Width: | 2.25 m |
| Vehicle Height: | 3.11 m |
| Gross Vehicle Weight (GVW): | 4.495 tonnes |
| Rated Payload: | 1.08 tonnes |
| Curb Weight: | 3.22 tonnes |
| Top Speed: | 90 km/h |
| Place of Manufacture: | Qingdao, Shandong |
| Energy Type: | Battery Electric |
| Motor 1 Model: | TZ230XSTY6402 |
| Motor Type: | Permanent Magnet Synchronous Motor |
| Fuel Category: | Battery Electric |
| Total Rated Power: | 60 kW |
| Peak Power: | 120 kW |
| Battery Brand: | CATL |
| Battery Type: | Lithium Iron Phosphate (LFP) Battery |
| Battery Capacity: | 98.04 kWh |
| Cargo Box Type: | Box-type |
| Cargo Box Length: | 4.16 m |
| Cargo Box Width: | 2.1 m |
| Cargo Box Height: | 2.1 m |
| Cab Width: | 1895 mm |
| Seating Capacity: | 3 persons |
| Front Axle Permissible Load: | 1950 kg |
| Rear Axle Description: | 265 Rear Axle |
| Rear Axle Permissible Load: | 2545 kg |
🚛 Basic Product Overview
It is equipped with a 98.04kWh high-capacity lithium iron phosphate power battery, which supports both DC fast charging and AC slow charging, adapting to different charging scenarios such as logistics parks and public charging stations.
It is matched with a permanent magnet synchronous drive system with a peak power of 120kW, the maximum speed can reach 90km/h, and the full-charge cruising range can fully cover the daily operation mileage of most conventional urban distribution routes, effectively reducing the trouble of frequent charging.
The whole vehicle adopts 4×2 drive form, with a total mass of 4.495 tons, a wheelbase of 3300mm, a body size of 5995×2250×3110mm, which balances the maneuverability of urban narrow roads and the carrying capacity of cargo. It meets the management standard of light-duty trucks in China, and can be driven with a C1 license in compliance with regulations.
It is equipped with a 4.16-meter-long enclosed pure electric box cargo body, with a rated load of 1.08 tons. The fully enclosed structure can protect goods from wind, rain and external pollution, and is very suitable for the distribution of express parcels, daily groceries, electronic products, fresh food and other daily consumer goods.
📦 Cargo Body & Application Scenarios
As a pure electric new energy light truck, its overall size fully complies with urban traffic access restrictions. It can apply for a green truck pass in most Chinese cities, and can pass freely in core urban areas even during traffic restriction periods, which is very suitable for long-term stable urban distribution business.
It adopts a single-row cab design that can accommodate 3 people. The ergonomic layout and moderate seating space can effectively reduce driver fatigue during long hours of distribution work. The production base is located in Qingdao, Shandong, China, with a complete after-sales service network.
